    This document provides specifications for sizing an engine and alternator system to generate 625KVA of power. It specifies using a Perkins 4006-23TAG2A engine rated at 632KW and a Stamford HCI634Y alternator. The engine is sufficient to operate at 50 degrees C and 900 meters altitude. The alternator is rated at 900KVA but with a 29% deration for temperature and altitude, will generate 639KVA at the project site.

    Original Description:

    Copyright

    © Attribution Non-Commercial (BY-NC)

    Available Formats

    XLS, PDF, TXT or read online from Scribd

    Did you find this document useful?

    Is this content inappropriate?

    Report this Document
    This document provides specifications for sizing an engine and alternator system to generate 625KVA of power. It specifies using a Perkins 4006-23TAG2A engine rated at 632KW and a Stamford HCI634Y alternator. The engine is sufficient to operate at 50 degrees C and 900 meters altitude. The alternator is rated at 900KVA but with a 29% deration for temperature and altitude, will generate 639KVA at the project site.

    Copyright:

    Attribution Non-Commercial (BY-NC)
    Download as XLS, PDF, TXT or read online from Scribd
    Flag for inappropriate content
    Download as xls, pdf, or txt
    988 views1 page

    Engine and Alternator Sizing Calculations

    Uploaded by

    Ashish M
    This document provides specifications for sizing an engine and alternator system to generate 625KVA of power. It specifies using a Perkins 4006-23TAG2A engine rated at 632KW and a Stamford HCI634Y alternator. The engine is sufficient to operate at 50 degrees C and 900 meters altitude. The alternator is rated at 900KVA but with a 29% deration for temperature and altitude, will generate 639KVA at the project site.

    Copyright:

    Attribution Non-Commercial (BY-NC)
    Download as XLS, PDF, TXT or read online from Scribd
    Flag for inappropriate content
    Download as xls, pdf, or txt
    of 1

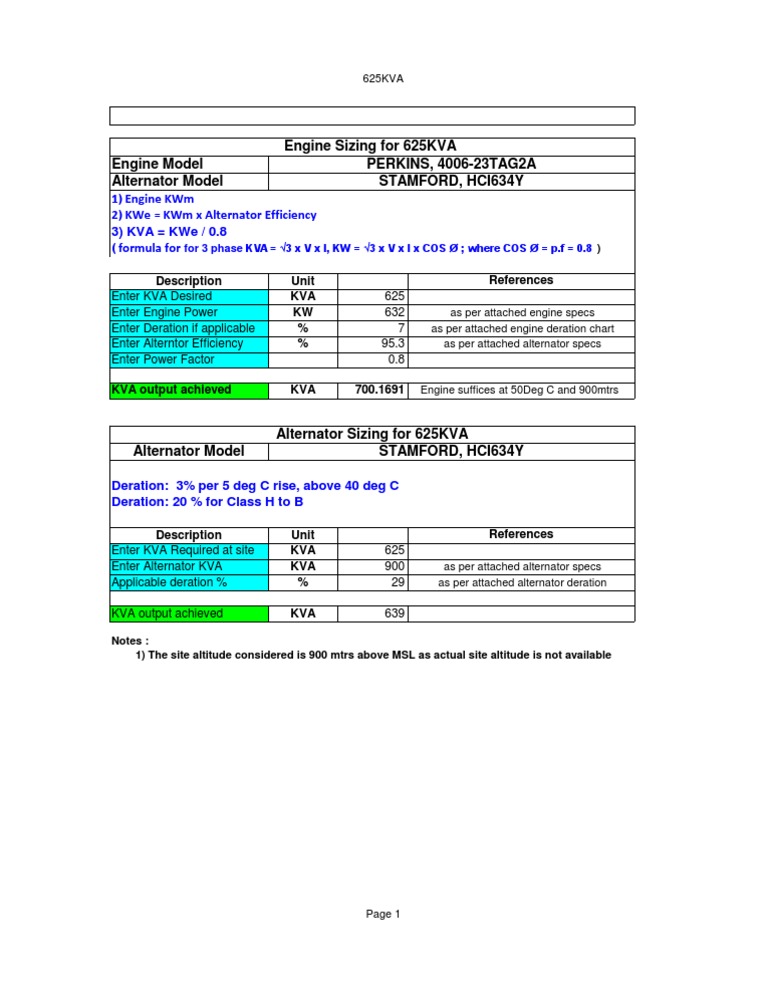

    625KVA

    Engine Model Alternator Model

    Engine Sizing for 625KVA PERKINS, 4006-23TAG2A STAMFORD, HCI634Y

    1) Engine KWm 2) KWe = KWm x Alternator Efficiency 3) KVA = KWe / 0.8 ( formula for for 3 phase KVA = 3 x V x I, KW = 3 x V x I x COS ; where COS = p.f = 0.8 )
    Description Enter KVA Desired Enter Engine Power Enter Deration if applicable Enter Alterntor Efficiency Enter Power Factor KVA output achieved Unit KVA KW % % References 625 632 7 95.3 0.8 700.1691
    as per attached engine specs as per attached engine deration chart as per attached alternator specs

    KVA

    Engine suffices at 50Deg C and 900mtrs

    Alternator Model

    Alternator Sizing for 625KVA STAMFORD, HCI634Y

    Deration: 3% per 5 deg C rise, above 40 deg C Deration: 20 % for Class H to B


    Description Enter KVA Required at site Enter Alternator KVA Applicable deration % KVA output achieved Unit KVA KVA % KVA References 625 900 29 639
    as per attached alternator specs as per attached alternator deration

    Notes : 1) The site altitude considered is 900 mtrs above MSL as actual site altitude is not available

    Page 1
