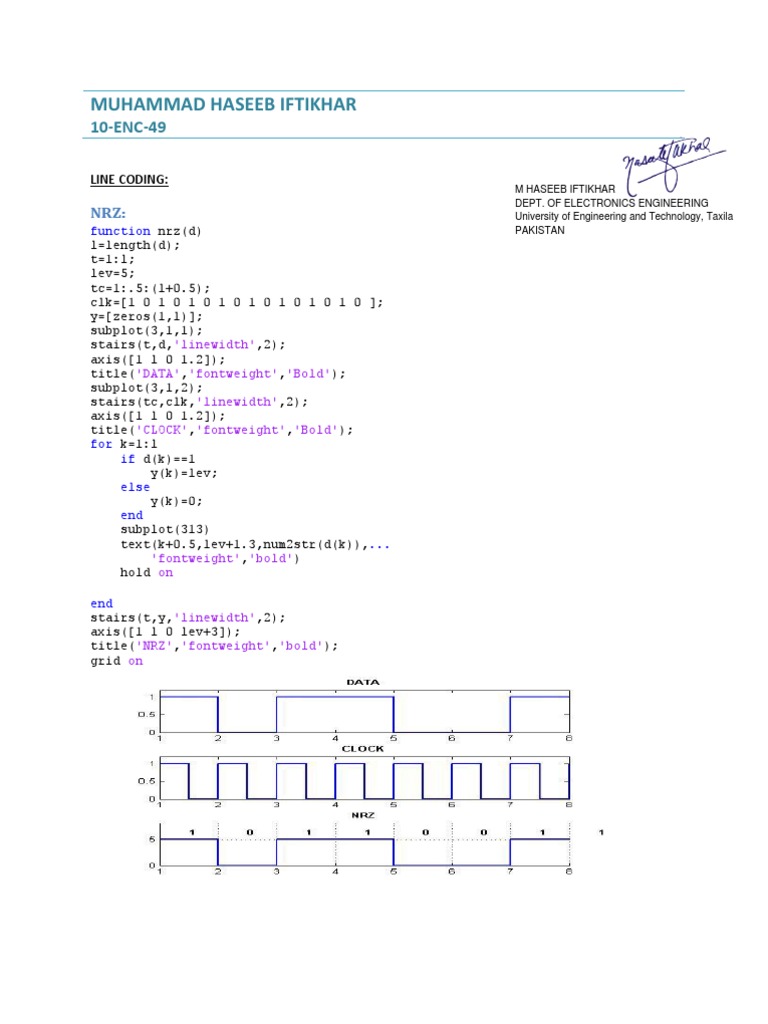

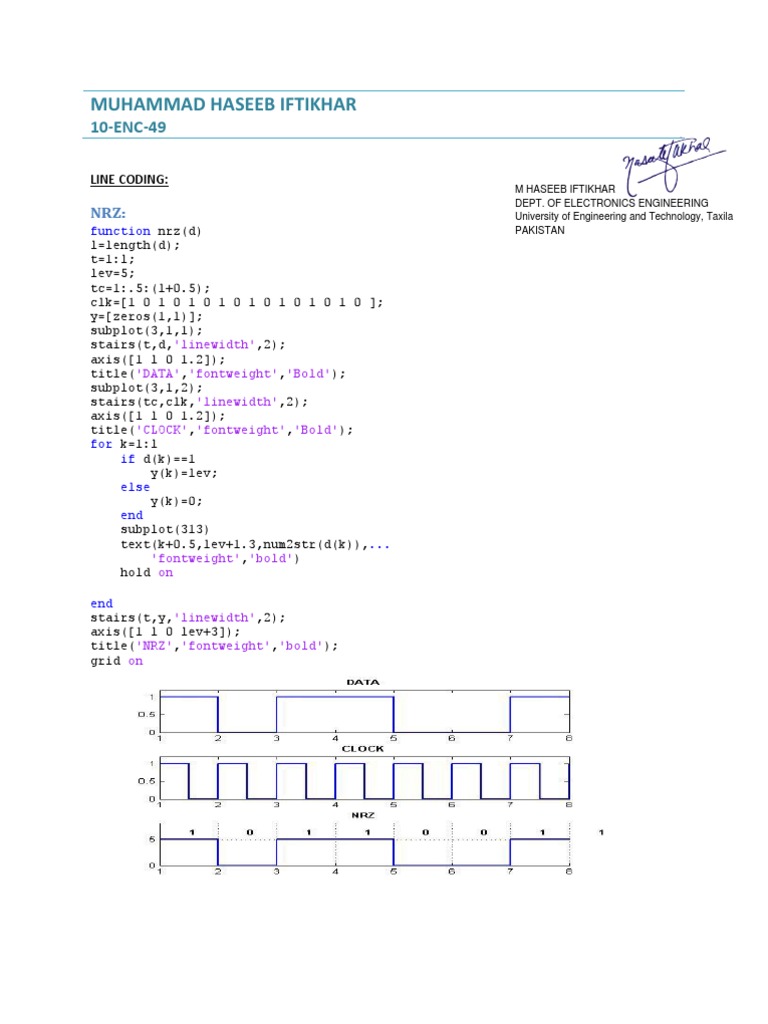

    MUHAMMAD HASEEB IFTIKHAR

    10-ENC-49
    LINE CODING:

    NRZ:
    function nrz(d)
    l=length(d);
    t=1:l;
    lev=5;
    tc=1:.5:(l+0.5);
    clk=[1 0 1 0 1 0 1 0 1 0 1 0 1 0 1 0 ];
    y=[zeros(1,l)];
    subplot(3,1,1);
    stairs(t,d,'linewidth',2);
    axis([1 l 0 1.2]);
    title('DATA','fontweight','Bold');
    subplot(3,1,2);
    stairs(tc,clk,'linewidth',2);
    axis([1 l 0 1.2]);
    title('CLOCK','fontweight','Bold');
    for k=1:l
    if d(k)==1
    y(k)=lev;
    else
    y(k)=0;
    end
    subplot(313)
    text(k+0.5,lev+1.3,num2str(d(k)),...
    'fontweight','bold')
    hold on
    end
    stairs(t,y,'linewidth',2);
    axis([1 l 0 lev+3]);
    title('NRZ','fontweight','bold');
    grid on

    M HASEEB IFTIKHAR
    DEPT. OF ELECTRONICS ENGINEERING
    University of Engineering and Technology, Taxila
    PAKISTAN

    BIP-NRZ
    function bip_nrz(d)
    l=length(d);
    t=1:l;
    lev=5;
    tc=1:.5:(l+0.5);
    clk=[1 0 1 0 1 0 1 0 1 0 1 0 1 0 1 0 ];
    y=[zeros(1,l)];
    subplot(3,1,1);
    stairs(t,d,'linewidth',2);
    axis([1 l 0 1.2]);
    title('DATA','fontweight','Bold');
    subplot(3,1,2);
    stairs(tc,clk,'linewidth',2);
    axis([1 l 0 1.2]);
    title('CLOCK','fontweight','Bold');
    for k=1:l
    if d(k)==1
    y(k)=lev;
    else
    y(k)=-lev;
    end
    subplot(313)
    text(k+0.5,lev+1.3,num2str(d(k)),...
    'fontweight','bold')
    hold on
    end
    stairs(t,y,'linewidth',2);
    axis([1 l -lev-1 lev+3]);
    title('BIP-NRZ','fontweight','bold');
    grid on

    RZ
    function rz(d)
    l=length(d);
    t=1:l;
    lev=5;
    tc=1:.5:(l+0.5);
    clk=[1 0 1 0 1 0 1 0 1 0 1 0 1 0 1 0 ];
    y=[zeros(1,2*l)];
    subplot(3,1,1);
    stairs(t,d,'linewidth',2);
    axis([1 l 0 1.2]);
    title('DATA','fontweight','Bold');
    subplot(3,1,2);
    stairs(tc,clk,'linewidth',2);
    axis([1 l 0 1.2]);
    title('CLOCK','fontweight','Bold');
    for k=1:l
    if d(k)==1
    y(2*k-1)=lev;
    y(2*k)=0;
    else
    y(2*k-1)=0;
    end
    subplot(313)
    text(k+0.3,lev+1.3,num2str(d(k)),...
    'fontweight','bold')
    hold on
    end
    stairs(tc,y,'linewidth',2);
    axis([1 l 0 lev+3]);
    title('RZ','fontweight','bold');
    grid on

    BIP-RZ
    function b_rz(d)
    l=length(d);
    t=1:l;
    lev=5;
    tc=1:.5:(l+0.5);
    clk=[1 0 1 0 1 0 1 0 1 0 1 0 1 0 1 0 ];
    y=[zeros(1,2*l)];
    subplot(3,1,1);
    stairs(t,d,'linewidth',2);
    axis([1 l 0 1.2]);
    title('DATA','fontweight','Bold');
    subplot(3,1,2);
    stairs(tc,clk,'linewidth',2);
    axis([1 l 0 1.2]);
    title('CLOCK','fontweight','Bold');
    for k=1:l
    if d(k)==1
    y(2*k-1)=lev;
    y(2*k)=-lev;
    else
    y(2*k-1)=-lev;
    y(2*k)=-lev;
    end
    subplot(313)
    text(k+0.3,lev+1.3,num2str(d(k)),...
    'fontweight','bold')
    hold on
    end
    stairs(tc,y,'linewidth',2);
    axis([1 l -lev-1 lev+3]);
    title('BIP-RZ','fontweight','bold');
    grid on

    MANCHASTER
    function manc(d)
    l=length(d);
    t=1:l;
    lev=5;
    tc=1:.5:(l+0.5);
    clk=[1 0 1 0 1 0 1 0 1 0 1 0 1 0 1 0 ];
    y=[zeros(1,2*l)];
    subplot(3,1,1);
    stairs(t,d,'linewidth',2);
    axis([1 l 0 1.2]);
    title('DATA','fontweight','Bold');
    subplot(3,1,2);
    stairs(tc,clk,'linewidth',2);
    axis([1 l 0 1.2]);
    title('CLOCK','fontweight','Bold');
    for k=1:l
    if d(k)==1
    y(2*k-1)=lev;
    y(2*k)=0;
    else
    y(2*k-1)=0;
    y(2*k)=lev;
    end
    subplot(313)
    text(k+0.3,lev+1.3,num2str(d(k)),...
    'fontweight','bold')
    hold on
    end
    stairs(tc,y,'linewidth',2);
    axis([1 l 0 lev+3]);
    title('MANCHESTER','fontweight','bold');
    grid on

    AMI
    function ami(d)
    l=length(d);
    t=1:l;
    lev=5;
    flag=0;
    tc=1:.5:(l+.5);
    clk=[1 0 1 0 1 0 1 0 1 0 1 0 1 0 1 0 ];
    y=[zeros(1,2*l)];
    subplot(3,1,1);
    stairs(t,d,'linewidth',2);
    axis([1 l 0 1.2]);
    title('DATA','fontweight','Bold');
    subplot(3,1,2);
    stairs(tc,clk,'linewidth',2);
    axis([1 l 0 1.2]);
    title('CLOCK','fontweight','Bold');
    for k=1:l
    if d(k)==1
    if flag==0
    y(2*k-1)=lev;
    y(2*k)=0;
    flag=1;
    else
    y(2*k-1)=-lev;
    y(2*k)=0;
    flag=0;
    end
    else
    y(2*k-1)=0;
    end
    subplot(313)
    text(k+0.3,lev+1.3,num2str(d(k)),...
    'fontweight','bold')
    hold on
    end
    stairs(tc,y,'linewidth',2);
    axis([1 l -lev-1 lev+3]);
    title('AMI','fontweight','bold');
    grid on
