EXAMPLE 4-003

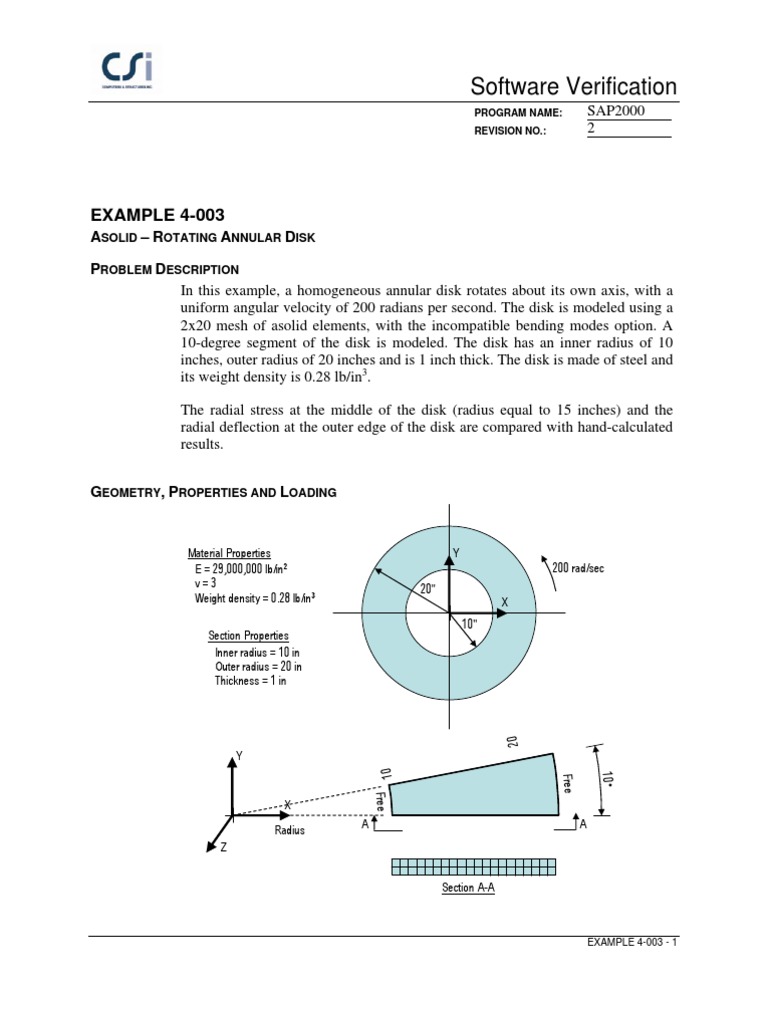

ASOLID ROTATING ANNULAR DISK PROBLEM DESCRIPTION In this example, a homogeneous annular disk rotates about its own axis, with a uniform angular velocity of 200 radians per second. The disk is modeled using a 2x20 mesh of asolid elements, with the incompatible bending modes option. A 10-degree segment of the disk is modeled. The disk has an inner radius of 10 inches, outer radius of 20 inches and is 1 inch thick. The disk is made of steel and its weight density is 0.28 lb/in3. The radial stress at the middle of the disk (radius equal to 15 inches) and the radial deflection at the outer edge of the disk are compared with hand-calculated results. GEOMETRY, PROPERTIES AND LOADING

Material Properties E = 29,000,000 lb/in2 =3 Weight density = 0.28 lb/in3 Section Properties Inner radius = 10 in Outer radius = 20 in Thickness = 1 in

Y 200 rad/sec 20" 10" X

Y
10
10 Free Free

X Radius Z A

20

Section A-A

EXAMPLE 4-003 - 1

Software Verification
PROGRAM NAME: REVISION NO.:

SAP2000 2

TECHNICAL FEATURES OF SAP2000 TESTED Analysis using asolid elements Asolid rotate load RESULTS COMPARISON The hand-calculated results are based on equations presented in Item 8 on page 567 of Roark and Young 1975.

With Incompatible Bending Modes Output Parameter Radial displ in 0.12040 At outer edge, r = 20 in Radial stress psi 45783 At r = 15 in 45891 0% 0.12035 0% SAP2000 Independent Percent Difference

COMPUTER FILE: CONCLUSIONS

Example 4-003

The SAP2000 results show an acceptable comparison with the independent results.

EXAMPLE 4-003 - 2

Software Verification
PROGRAM NAME: REVISION NO.:

SAP2000 2

HAND CALCULATION
