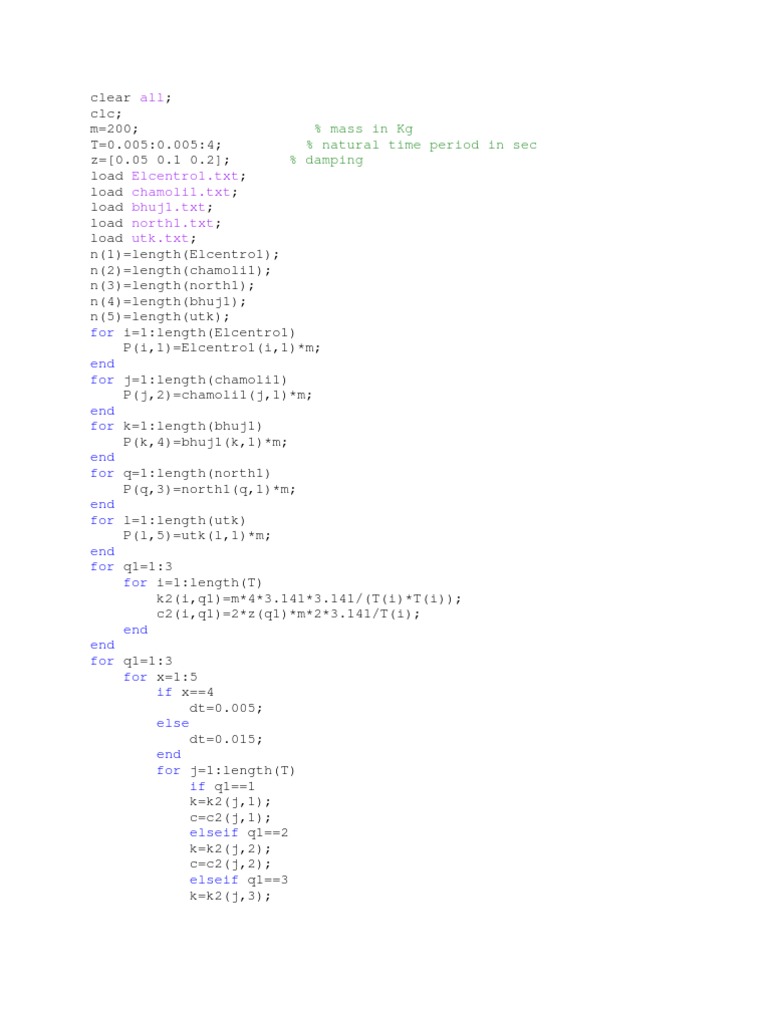

    clear all;

    clc;
    % mass in Kg
    m=200;
    T=0.005:0.005:4;
    % natural time period in sec
    z=[0.05 0.1 0.2];
    % damping
    load Elcentro1.txt;
    load chamoli1.txt;
    load bhuj1.txt;
    load north1.txt;
    load utk.txt;
    n(1)=length(Elcentro1);
    n(2)=length(chamoli1);
    n(3)=length(north1);
    n(4)=length(bhuj1);
    n(5)=length(utk);
    for i=1:length(Elcentro1)
    P(i,1)=Elcentro1(i,1)*m;
    end
    for j=1:length(chamoli1)
    P(j,2)=chamoli1(j,1)*m;
    end
    for k=1:length(bhuj1)
    P(k,4)=bhuj1(k,1)*m;
    end
    for q=1:length(north1)
    P(q,3)=north1(q,1)*m;
    end
    for l=1:length(utk)
    P(l,5)=utk(l,1)*m;
    end
    for q1=1:3
    for i=1:length(T)
    k2(i,q1)=m*4*3.141*3.141/(T(i)*T(i));
    c2(i,q1)=2*z(q1)*m*2*3.141/T(i);
    end
    end
    for q1=1:3
    for x=1:5
    if x==4
    dt=0.005;
    else
    dt=0.015;
    end
    for j=1:length(T)
    if q1==1
    k=k2(j,1);
    c=c2(j,1);
    elseif q1==2
    k=k2(j,2);
    c=c2(j,2);
    elseif q1==3
    k=k2(j,3);

    c=c2(j,3);
    end
    u(2,x)=0;
    v(2,x)=0;
    a(2,x)=P(1,x)/m;
    u(1,x)=u(2,x)-(dt*v(2,x))+(0.5*((dt*dt)*a(2,x)));
    k1=(m/(dt*dt))+(c/(2*dt));
    a1=(m/(dt*dt))-(c/(2*dt));
    b1=k-((2*m)/(dt^2));
    for i=2:(n(x)-1)
    pcap(i,x)=(P(i,x)-(a1*u(i-1,x))-(b1*u(i,x)));
    u(i+1,x)=pcap(i,x)/k1;
    v(i,x)=((u(i+1,x)-u(i-1,x))/(2*dt));
    a(i,x)=(u(i+1,x)-(2*u(i,x))+u(i-1,x))/(dt.^2);
    end
    mu(j,x)=max(abs(u(:,x)));
    mv(j,x)=max(abs(v(:,x)));
    ma(j,x)=max(abs(a(:,x)));
    end
    end
    for j=1:length(T)
    avgu(j)=(mu(j,1)+mu(j,2)+mu(j,3)+mu(j,4)+mu(j,5))/5;
    avgv(j)=(mv(j,1)+mv(j,2)+mv(j,3)+mv(j,4)+mv(j,5))/5;
    avga(j)=(ma(j,1)+ma(j,2)+ma(j,3)+ma(j,4)+ma(j,5))/5;
    end
    for x=1:5
    for j=13
    vu(j,x)=((avgu(j)-mu(j,x))^2);
    vv(j,x)=((avgv(j)-mv(j,x))^2);
    va(j,x)=((avga(j)-ma(j,x))^2);
    end
    for j=14:length(T)
    vu(j,x)=vu((j-1),x)+((avgu(j)-mu(j,x))^2);
    vv(j,x)=vv((j-1),x)+((avgv(j)-mv(j,x))^2);
    va(j,x)=va((j-1),x)+((avga(j)-ma(j,x))^2);
    end
    end
    for x=1:5
    SDU(x)=sqrt(vu(length(T),x)/length(T));
    SDV(x)=sqrt(vv(length(T),x)/length(T));
    SDA(x)=sqrt(va(length(T),x)/length(T));
    end
    for j=1:length(T)
    DSU(j)=avgu(j)+SDU(1);
    DSV(j)=avgv(j)+SDV(1);
    DSA(j)=avga(j)+SDA(1);
    end
    % PLOT FOR DISPLACEMENT
    figure(1);
    plot(T,DSU);
    hold on
    xlabel('time');

    ylabel('displacement');
    title('DISPLACEMENT CURVE OF DESIGN SPECTRUM');
    % PLOT FOR VELOCITY
    figure(2);
    plot(T,DSV);
    hold on
    xlabel('time');
    ylabel('velocity');
    title('VELCOITY CURVE OF DESIGN SPECTRUM');
    % PLOT FOR ACCELERATION
    figure(3);
    plot(T,DSA);
    hold on
    xlabel('time');
    ylabel('acceleration');
    title('ACCELERATION CURVE OF DESIGN SPECTRUM');
    end
    hold off
