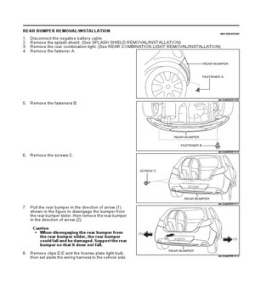

REAR BUMPER REMOVAL/INSTALLATION

id091000405300

1. Disconnect the negative battery cable.

2. Remove the splash shield. (See SPLASH SHIELD REMOVAL/INSTALLATION)
3. Remove the rear combination light. (See REAR COMBINATION LIGHT REMOVAL/INSTALLATION)
4. Remove the fastener A.

REAR BUMPER

FASTENER A

am2zzw00001609
5. Remove the fasteners B.

REAR BUMPER

FASTENER B
am2zzw00001610
6. Remove the screws C.

SCREW C

REAR BUMPER
am2zzw00001611
7. Pull the rear bumper in the direction of arrow (1)
shown in the figure to disengage the bumper from
the rear bumper slider, then remove the rear bumper
in the direction of arrow (2).

Caution
• When disengaging the rear bumper from (1)
the rear bumper slider, the rear bumper (2) (1)
could fall and be damaged. Support the rear
bumper so that it does not fall.
REAR BUMPER
8. Remove clips D,E and the license plate light bulb,
am2zzw00001612
then set aside the wiring harness to the vehicle side.
 LICENSE PLATE LIGHT BULB REAR BUMPER

WIRING HARNESS

WIRING HARNESS
CLIP E CLIP D
CLIP D

CLIP E REAR BUMPER REAR BUMPER

am2zzw00001788
9. Disconnect the rear fog light connector. (Vehicles with rear fog light)
10. Install in the reverse order of removal.

Rear Bumper Installation Note

1. Spread the rear bumper ends apart.
2. Assemble the rear bumper to the body.
3. Press the rear bumper connecting area in the REAR BUMPER
direction of the arrow shown in the figure to engage SLIDER
with the rear bumper slider.

REAR BUMPER
am2zzw00001613
