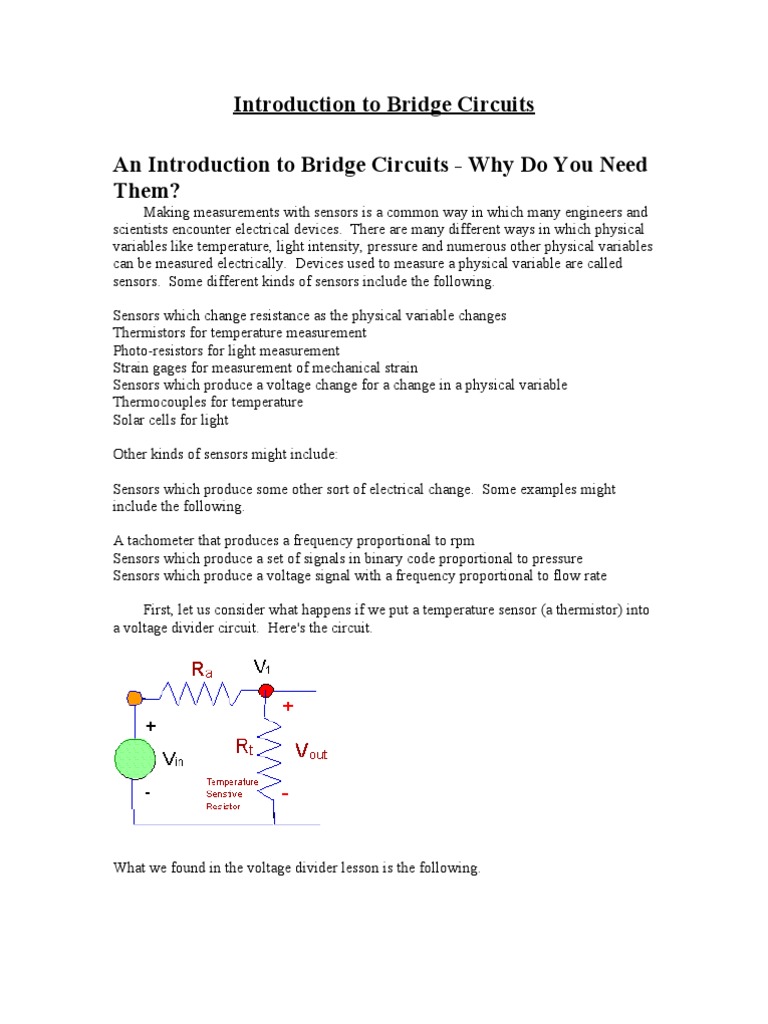

Introduction to Bridge Circuits An Introduction to Bridge Circuits - Why Do You Need Them?

Making measurements with sensors is a common way in which many engineers and scientists encounter electrical devices. There are many different ways in which physical variables like temperature, light intensity, pressure and numerous other physical variables can be measured electrically. Devices used to measure a physical variable are called sensors. Some different kinds of sensors include the following. Sensors which change resistance as the physical variable changes Thermistors for temperature measurement Photo-resistors for light measurement Strain gages for measurement of mechanical strain Sensors which produce a voltage change for a change in a physical variable Thermocouples for temperature Solar cells for light Other kinds of sensors might include: Sensors which produce some other sort of electrical change. Some examples might include the following. A tachometer that produces a frequency proportional to rpm Sensors which produce a set of signals in binary code proportional to pressure Sensors which produce a voltage signal with a frequency proportional to flow rate First, let us consider what happens if we put a temperature sensor (a thermistor) into a voltage divider circuit. Here's the circuit.

What we found in the voltage divider lesson is the following.

At some nominal value of the temperature (if we have a temperature sensor) the voltage divider will have a nominal output voltage. As the temperature changes the voltage output of the voltage divider changes. The voltage change will probably be a nonlinear function of temperature as the temperature deviates from the nominal value of the temperature. There are some problems with using a voltage divider. Consider the following. You might want an output signal that is zero at the nominal conditions. You could then have an output signal that was positive when the temperature deviated in one direction and a negative output signal when the temperature deviated in the other direction. If the output is something other than temperature that becomes even more clear. If the sensor is a strain gage, the strain could be positive or negative, and you would want the output voltage to be similarly positive or negative, and ideally it would be proportional to strain. If the sensor is a pressure sensor, you could want a positive signal for a pressure above atmospheric (or any other reference) and negative for a pressure below. The point here is that it is common to want a zero output signal under certain, known conditions. There are several ways you could subtract out that pesky DC voltage. For example, you could use an operational amplifier circuit to subtract out the DC voltage. That's more complex than another solution - using a bridge circuit. Usually a bridge circuit is what is used in this situation, and in this lesson you're going to learn about bridge circuits. Bridge circuits are simple circuits that permit us to solve the problems noted above, and you need to learn about them.

Bridge Circuits
What is a bridge circuit? It's easier to look at one than to try to describe it. Here is a bridge circuit.

The bridge circuit has two arms (Ra and Rb constitute one arm here, and Rc and Rs constitute the other arm). Each arm is composed of two resistors in series, and you may want to think of each arm as a voltage divider. The output is the difference between the outputs of the two voltage dividers. In the bridge circuit above we have also included some source resistance for the source which drives the bridge circuit. This is the circuit we want to understand.

What are you trying to do in this lesson?

Given a sensor that changes resistance as some physical variable changes, Be able to use the sensor in a bridge circuit. Be able to choose components for the bridge circuit that will produce good performance.

Analysis Of Bridge Circuits - Balancing The Bridge

We have noted that it might be possible to get a bridge output of zero volts. That's true, but it only happens under certain conditions. When the output of a bridge is zero, the bridge is said to be balanced. The first thing we will do is to determine the conditions for a bridge circuit to be balanced. If the output voltage of a bridge circuit is zero, that will happen when the outputs of both dividers is the same. Here's the bridge circuit again. We'll probably have to be looking at it as we make this argument.

The first thing that we notice is that both voltage dividers have the same voltage at the "top" of the bridge. Call that voltage Vtop. Then, the voltage at the left terminal (labelled "+") is given by: Vtop. [Rb/(Ra + Rb)]

Similarly, the voltage at the right terminal (labelled "-") is given by: Vtop. [Rs/(Rc + Rs)] The difference between these two voltages - the output voltage - is given by: Vtop. [Rb/(Ra + Rb)] - Vtop. [Rs/ (Rc + Rs)] Setting the output voltage to zero (the condition for a balanced bridge), we get: Vtop. [Rb/(Ra + Rb)] - Vtop. [Rs/(Rc + Rs)] = 0 Since Vtop is a common factor it can be removed. Then, we get: [Rb/(Ra + Rb)] - [Rs/(Rc + Rs)] = 0 or [Rb/(Ra + Rb)] = [Rs/(Rc + Rs)] Now, cross-multiply the denominators. RbRc + RbRs= RsRa + RbRs Note that the term RsRb appears on both sides of the equation and can be taken out on both sides. That gives us: RbRc = RsRa This is the condition for balance that we were looking for. It is a very simple relationship that must be obeyed by the resistors in the bridge portion of the circuit.

Problems
P1 For these values of resistance determine the value of Rs for which the bridge is balanced. Ra = 1000 Rb = 2000 Rc = 5000

P2 For these values of resistance determine the value of Ra for which the bridge is balanced. Rb = 1000 Rc = 2000 Rs = 5000 P3 For these values of resistance determine the value of Rs for which the bridge is balanced. Ra = 10 Rb = 10000 Rc = 10 P4 For these values of resistance you should have found that the bridge would be balanced. (These are the values from Question 1 above.) For these values, what are the values of V+ and V-? (And remember, both values of voltage are the same when the bridge is balanced.) Ra = 1000 Rb = 2000 Rc = 3000 Rs = 6000 Assume the following values for the source Vc = 10v Ro = 0 (Ideal voltage source) P5 For these values of Resistance Bridge would be unbalanced. Ra = 1000 Rb = 2000 Rc = 3000 Rs = 6600 Assume the following values for the source Vc = 10v Ro = 0 (Ideal voltage source) Compute the bridge output voltage for the unbalanced bridge, and be sure you get the sign correct

P6 For these values of resistance the bridge is balanced. Ra = 10 Rb = 10000 Rc = 10 Rs = 10000 Change the value of the sensor resistance by 10% to 11000 . Compute the change in the voltage output of the right side of the bridge. You should have found that there was only a very small voltage change and that the percentage change is miniscule. (We calculate a .01% change in the output voltage for a 10% change in sensor resistance. The conclusion is that not all 10% sensor resistance changes are created equal. There is an issue buried in here. By now you should realize that it is possible to have the bridge balanced, but it might be unusable because the voltages out of the voltage dividers in the two different arms fall into one of these two categories. The voltage out of the voltage dividers can be very small (close to zero) if Rs and Rb are both small compared to the other resistors. The voltage out of the voltage dividers can be very close to the supply voltage if Rs and Rb are both large compared to the other resistors - the situation we contrived above. In both of those cases the voltage divider outputs are close to one of the extremes, and in both of those cases the output voltage will not change much even for substantial changes in the resistances. Intuitively you expect that the best situation will be when the outputs of the voltage dividers are close to the mid-point between zero volts (ground) and the supply voltage. It would be nice if that were more than just an intuitional and if it could be shown mathematically. It's possible to do that and we're going to take a shot at that.

Sensitivity of Bridge Voltage Output

Earlier, we found that the output voltage from the bridge was given by: Vout = Vtop. [Rb/ (Ra + Rb)] - Vtop. [Rs/ (Rc + Rs)] We want to determine the conditions for which this output voltage changes the most for a given change in a resistor - and we will choose the sensor resistance. We start by computing the rate of change of the output voltage as a function of Rs and Rc. The derivative of output voltage (dVout/Rs.)with respect to the sensor resistance is: dVout/Rs = VsRc/[(Rc +Rs)2] Now, if you want the maximum slope, you would choose Rs = 0. However, you don't have control over the sensor resistance, but you can choose Rc to get the maximum slope.

And, to determine the maximum slop, we differentiate the expression for the slope and set the result to zero. Doing that, we have the expression below. d(dVout/Rs)/dRc = Vs(Rc - Rs)/[(Rc +Rs)3] And, that tells us that the maximum slope occurs when you pick Rc = Rs. Summing that up, if you have a resistive sensor and you want to use it in a bridge circuit, the resistor in series with the sensor should be chosen so that the resistance in series has the same value as the nominal resistance of the sensor. Example You have a strain gage with a nominal resistance of 350 . The resistor in series with the strain gage should have the same value, i.e. 350 , if you want the bridge to have maximum sensitivity.

Linearity
There may be times when you want the output voltage to change linearly with resistance change in the sensor. In that case, recall the result above. Vout = Vtop. [Rb/(Ra + Rb)] - Vtop. [Rs/(Rc + Rs)] The only way that the output voltage will change linearly with the sensor resistance is if you have: Rc >> Rs Then, if you have that situation, the output from the right leg of the bridge will be almost zero, and you will have sacrificed sensitivity for linearity. It will be a tradeoff, and you will have to make the call.

Bridge Circuit Problem

In this bridge circuit, Ra is adjusted until the bridge balances. What is the value of Ra that balances the bridge? Other circuit values are: Vs = 12v Ro = 50 Rb = 2000 Rc = 2000 Rs = 4000
