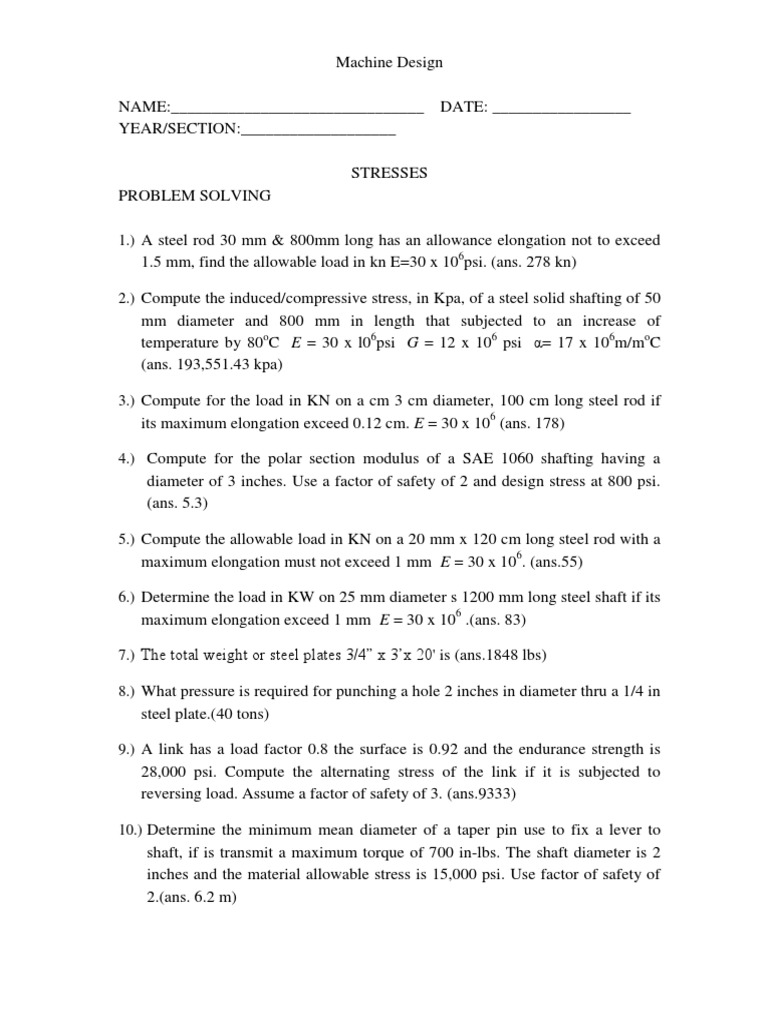

Machine Design NAME:_______________________________ YEAR/SECTION:___________________ STRESSES PROBLEM SOLVING

1.) A steel rod 30 mm & 800mm long has an allowance elongation not to exceed

DATE: _________________

1.5 mm, find the allowable load in kn E=30 x 106psi. (ans. 278 kn)
2.) Compute the induced/compressive stress, in Kpa, of a steel solid shafting of 50

mm diameter and 800 mm in length that subjected to an increase of temperature by 80oC E = 30 x l06psi G = 12 x 106 psi = 17 x 106m/moC (ans. 193,551.43 kpa)
3.) Compute for the load in KN on a cm 3 cm diameter, 100 cm long steel rod if

its maximum elongation exceed 0.12 cm. E = 30 x 106 (ans. 178)

4.) Compute for the polar section modulus of a SAE 1060 shafting having a

diameter of 3 inches. Use a factor of safety of 2 and design stress at 800 psi. (ans. 5.3)
5.) Compute the allowable load in KN on a 20 mm x 120 cm long steel rod with a

maximum elongation must not exceed 1 mm E = 30 x 106. (ans.55)

6.) Determine the load in KW on 25 mm diameter s 1200 mm long steel shaft if its

maximum elongation exceed 1 mm E = 30 x 106 .(ans. 83)

7.) The total weight or steel plates 3/4 x 3x 20' is (ans.1848 lbs) 8.) What pressure is required for punching a hole 2 inches in diameter thru a 1/4 in

steel plate.(40 tons)

9.) A link has a load factor 0.8 the surface is 0.92 and the endurance strength is

28,000 psi. Compute the alternating stress of the link if it is subjected to reversing load. Assume a factor of safety of 3. (ans.9333)
10.) Determine the minimum mean diameter of a taper pin use to fix a lever to

shaft, if is transmit a maximum torque of 700 in-lbs. The shaft diameter is 2 inches and the material allowable stress is 15,000 psi. Use factor of safety of 2.(ans. 6.2 m)
