    Data Communication And Networking

    Azfer Pervaiz
    B09101012

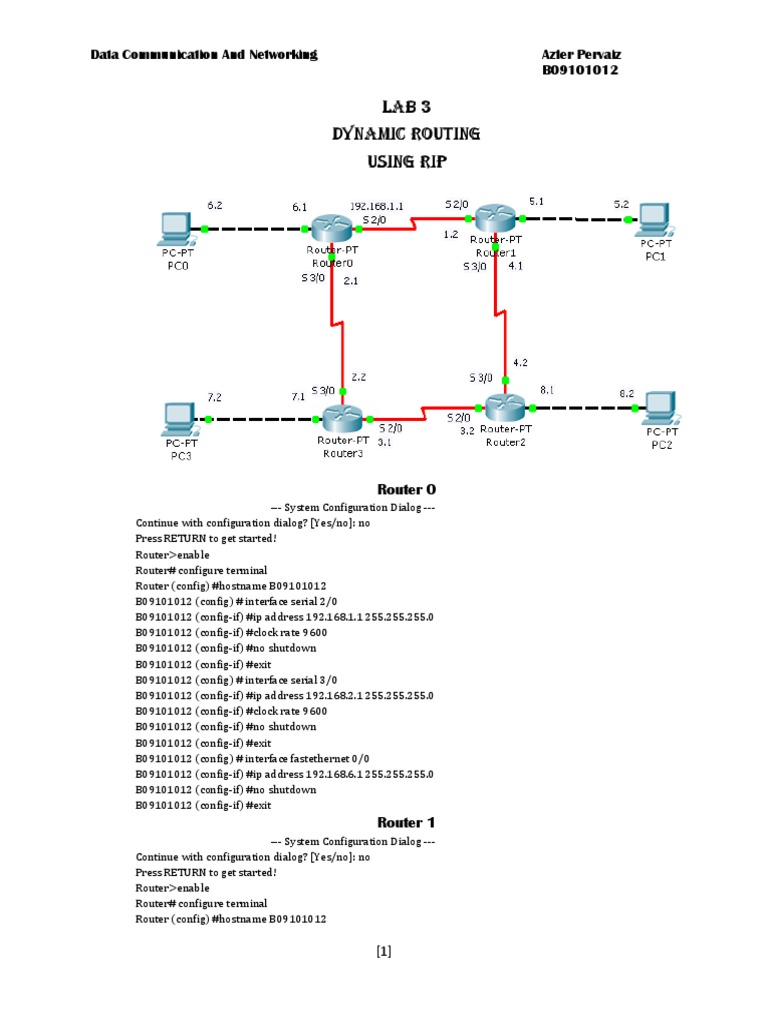

    LAB 3
    Dynamic Routing
    Using Rip

    Router 0
    --- System Configuration Dialog --Continue with configuration dialog? [Yes/no]: no
    Press RETURN to get started!
    Router>enable
    Router# configure terminal
    Router (config) #hostname B09101012
    B09101012 (config) # interface serial 2/0
    B09101012 (config-if) #ip address 192.168.1.1 255.255.255.0
    B09101012 (config-if) #clock rate 9600
    B09101012 (config-if) #no shutdown
    B09101012 (config-if) #exit
    B09101012 (config) # interface serial 3/0
    B09101012 (config-if) #ip address 192.168.2.1 255.255.255.0
    B09101012 (config-if) #clock rate 9600
    B09101012 (config-if) #no shutdown
    B09101012 (config-if) #exit
    B09101012 (config) # interface fastethernet 0/0
    B09101012 (config-if) #ip address 192.168.6.1 255.255.255.0
    B09101012 (config-if) #no shutdown
    B09101012 (config-if) #exit

    Router 1
    --- System Configuration Dialog --Continue with configuration dialog? [Yes/no]: no
    Press RETURN to get started!
    Router>enable
    Router# configure terminal
    Router (config) #hostname B09101012

    [1]

    Data Communication And Networking

    Azfer Pervaiz
    B09101012

    B09101012 (config) # interface serial 2/0


    B09101012 (config-if) #ip address 192.168.1.2 255.255.255.0
    B09101012 (config-if) #clock rate 9600
    B09101012 (config-if) #no shutdown
    B09101012 (config-if) #exit
    B09101012 (config) # interface serial 3/0
    B09101012 (config-if) #ip address 192.168.4.1 255.255.255.0
    B09101012 (config-if) #clock rate 9600
    B09101012 (config-if) #no shutdown
    B09101012 (config-if) #exit
    B09101012 (config) # interface fastethernet 0/0
    B09101012 (config-if) #ip address 192.168.5.1 255.255.255.0
    B09101012 (config-if) #no shutdown
    B09101012 (config-if) #exit

    Router 2
    --- System Configuration Dialog --Continue with configuration dialog? [Yes/no]: no
    Press RETURN to get started!
    Router>enable
    Router# configure terminal
    Router (config) #hostname B09101012
    B09101012 (config) # interface serial 2/0
    B09101012 (config-if) #ip address 192.168.3.2 255.255.255.0
    B09101012 (config-if) #clock rate 9600
    B09101012 (config-if) #no shutdown
    B09101012 (config-if) #exit
    B09101012 (config) # interface serial 3/0
    B09101012 (config-if) #ip address 192.168.4.2 255.255.255.0
    B09101012 (config-if) #clock rate 9600
    B09101012 (config-if) #no shutdown
    B09101012 (config-if) #exit
    B09101012 (config) # interface fastethernet 0/0
    B09101012 (config-if) #ip address 192.168.8.1 255.255.255.0
    B09101012 (config-if) #no shutdown
    B09101012 (config-if) #exit

    Router 3
    --- System Configuration Dialog --Continue with configuration dialog? [Yes/no]: no
    Press RETURN to get started!
    Router>enable
    Router# configure terminal
    Router (config) #hostname B09101012
    B09101012 (config) # interface serial 2/0
    B09101012 (config-if) #ip address 192.168.3.1 255.255.255.0
    B09101012 (config-if) #clock rate 9600
    B09101012 (config-if) #no shutdown
    B09101012 (config-if) #exit
    B09101012 (config) # interface serial 3/0
    B09101012 (config-if) #ip address 192.168.2.2 255.255.255.0
    B09101012 (config-if) #clock rate 9600
    B09101012 (config-if) #no shutdown
    B09101012 (config-if) #exit
    B09101012 (config) # interface fastethernet 0/0

    [2]

    Data Communication And Networking

    Azfer Pervaiz
    B09101012

    B09101012 (config-if) #ip address 192.168.7.1 255.255.255.0


    B09101012 (config-if) #no shutdown
    B09101012 (config-if) #exit

    Pc 0
    IP Address: 192.168.6.2
    Subnet Mask: 255.255.255.0
    Default Gateway: 192.168.6.1

    Pc 1
    IP Address: 192.168.5.2
    Subnet Mask: 255.255.255.0
    Default Gateway: 192.168.5.1

    Pc 2
    IP Address: 192.168.8.2
    Subnet Mask: 255.255.255.0
    Default Gateway: 192.168.8.1

    Pc 3
    IP Address: 192.168.7.2
    Subnet Mask: 255.255.255.0
    Default Gateway: 192.168.7.1

    Dynamic Routing For R0


    B09101012 (config) #router rip
    B09101012 (config-router) #network 192.168.1.0
    B09101012 (config-router) #network 192.168.2.0
    B09101012 (config-router) #network 192.168.6.0

    Dynamic Routing For R1


    B09101012 (config) #router rip
    B09101012 (config-router) #network 192.168.1.0
    B09101012 (config-router) #network 192.168.4.0
    B09101012 (config-router) #network 192.168.5.0

    Dynamic Routing For R2


    B09101012 (config) #router rip
    B09101012 (config-router) #network 192.168.3.0
    B09101012 (config-router) #network 192.168.4.0
    B09101012 (config-router) #network 192.168.8.0

    Dynamic Routing For R3


    B09101012 (config) #router rip
    B09101012 (config-router) #network 192.168.2.0
    B09101012 (config-router) #network 192.168.3.0
    B09101012 (config-router) #network 192.168.7.0

    LAB 4
    [3]

    Data Communication And Networking

    Azfer Pervaiz
    B09101012

    Dynamic Routing
    Using Rip

    Router 0
    --- System Configuration Dialog --Continue with configuration dialog? [Yes/no]: no
    Press RETURN to get started!
    Router>enable
    Router# configure terminal
    Router (config) #hostname B09101012
    B09101012 (config) # interface serial 2/0
    B09101012 (config-if) #ip address 15.1.1.1 255.0.0.0
    B09101012 (config-if) #clock rate 9600
    B09101012 (config-if) #no shutdown
    B09101012 (config-if) #exit
    B09101012 (config) # interface serial 3/0
    B09101012 (config-if) #ip address 13.1.1.1 255.0.0.0
    B09101012 (config-if) #clock rate 9600
    B09101012 (config-if) #no shutdown
    B09101012 (config-if) #exit
    B09101012 (config) # interface fastethernet 0/0
    B09101012 (config-if) #ip address 20.1.1.1 255.0.0.0
    B09101012 (config-if) #no shutdown
    B09101012 (config-if) #exit

    Router 1
    --- System Configuration Dialog ---

    [4]

    Data Communication And Networking

    Azfer Pervaiz
    B09101012

    Continue with configuration dialog? [Yes/no]: no


    Press RETURN to get started!
    Router>enable
    Router# configure terminal
    Router (config) #hostname B09101012
    B09101012 (config) # interface serial 2/0
    B09101012 (config-if) #ip address 11.1.1.1 255.0.0.0
    B09101012 (config-if) #clock rate 9600
    B09101012 (config-if) #no shutdown
    B09101012 (config-if) #exit
    B09101012 (config) # interface serial 3/0
    B09101012 (config-if) #ip address 15.1.1.2 255.0.0.0
    B09101012 (config-if) #clock rate 9600
    B09101012 (config-if) #no shutdown
    B09101012 (config-if) #exit
    B09101012 (config) # interface fastethernet 0/0
    B09101012 (config-if) #ip address 16.1.1.1 255.0.0.0
    B09101012 (config-if) #no shutdown
    B09101012 (config-if) #exit

    Router 2
    --- System Configuration Dialog --Continue with configuration dialog? [Yes/no]: no
    Press RETURN to get started!
    Router>enable
    Router# configure terminal
    Router (config) #hostname B09101012
    B09101012 (config) # interface serial 2/0
    B09101012 (config-if) #ip address 12.1.1.2 255.0.0.0
    B09101012 (config-if) #clock rate 9600
    B09101012 (config-if) #no shutdown
    B09101012 (config-if) #exit
    B09101012 (config) # interface serial 3/0
    B09101012 (config-if) #ip address 11.1.1.2 255.0.0.0
    B09101012 (config-if) #clock rate 9600
    B09101012 (config-if) #no shutdown
    B09101012 (config-if) #exit
    B09101012 (config) # interface fastethernet 0/0
    B09101012 (config-if) #ip address 17.1.1.1 255.0.0.0
    B09101012 (config-if) #no shutdown
    B09101012 (config-if) #exit

    Router 3
    --- System Configuration Dialog --Continue with configuration dialog? [Yes/no]: no
    Press RETURN to get started!
    Router>enable
    Router# configure terminal
    Router (config) #hostname B09101012

    B09101012 (config) # interface serial 2/0


    B09101012 (config-if) #ip address 10.1.1.2 255.0.0.0
    B09101012 (config-if) #clock rate 9600

    [5]

    Data Communication And Networking

    Azfer Pervaiz
    B09101012

    B09101012 (config-if) #no shutdown


    B09101012 (config-if) #exit
    B09101012 (config) # interface serial 3/0
    B09101012 (config-if) #ip address 12.1.1.1 255.0.0.0
    B09101012 (config-if) #clock rate 9600
    B09101012 (config-if) #no shutdown
    B09101012 (config-if) #exit
    B09101012 (config) # interface fastethernet 0/0
    B09101012 (config-if) #ip address 18.1.1.1
    B09101012 (config-if) #no shutdown
    B09101012 (config-if) #exit

    Router 4
    --- System Configuration Dialog --Continue with configuration dialog? [Yes/no]: no
    Press RETURN to get started!
    Router>enable
    Router# configure terminal
    Router (config) #hostname B09101012
    B09101012 (config) # interface serial 2/0
    B09101012 (config-if) #ip address 13.1.1.2 255.0.0.0
    B09101012 (config-if) #clock rate 9600
    B09101012 (config-if) #no shutdown
    B09101012 (config-if) #exit
    B09101012 (config) # interface serial 3/0
    B09101012 (config-if) #ip address 10.1.1.1 255.0.0.0
    B09101012 (config-if) #clock rate 9600
    B09101012 (config-if) #no shutdown
    B09101012 (config-if) #exit
    B09101012 (config) # interface fastethernet 0/0
    B09101012 (config-if) #ip address 19.1.1.1 255.0.0.0
    B09101012 (config-if) #no shutdown
    B09101012 (config-if) #exit

    Pc 0
    IP Address: 20.1.1.2
    Subnet Mask: 255.0.0.0
    Default Gateway: 20.1.1.1

    Pc 1
    IP Address: 20.1.1.3
    Subnet Mask: 255.0.0.0
    Default Gateway: 20.1.1.1

    Pc 2
    IP Address: 16.1.1.2
    Subnet Mask: 255.0.0.0
    Default Gateway: 16.1.1.1

    Pc 3
    IP Address: 16.1.1.3
    Subnet Mask: 255.0.0.0

    [6]

    Data Communication And Networking

    Azfer Pervaiz
    B09101012

    Default Gateway: 16.1.1.1

    Pc 4
    IP Address: 17.1.1.2
    Subnet Mask: 255.0.0.0
    Default Gateway: 17.1.1.1

    Pc 5
    IP Address: 17.1.1.3
    Subnet Mask: 255.0.0.0
    Default Gateway: 17.1.1.1

    Pc 6
    IP Address: 18.1.1.2
    Subnet Mask: 255.0.0.0
    Default Gateway: 18.1.1.1

    Pc 7
    IP Address: 18.1.13
    Subnet Mask: 255.0.0.0
    Default Gateway: 18.1.1.1

    Pc 8
    IP Address: 19.1.1.2
    Subnet Mask: 255.0.0.0
    Default Gateway: 19.1.1.1

    Pc 9
    IP Address: 19.1.1.3
    Subnet Mask: 255.0.0.0
    Default Gateway: 19.1.1.1

    Dynamic Routing For R0


    B09101012 (config) #router rip
    B09101012 (config-router) #network 13.1.1.0
    B09101012 (config-router) #network 15.1.1.0
    B09101012 (config-router) #network 20.1.1.0

    Dynamic Routing For R1


    B09101012 (config) #router rip
    B09101012 (config-router) #network 11.1.1.0
    B09101012 (config-router) #network 15.1.1.0
    B09101012 (config-router) #network 16.1.1.0

    Dynamic Routing For R2


    B09101012 (config) #router rip
    B09101012 (config-router) #network 11.1.1.0
    B09101012 (config-router) #network 12.1.1.0
    B09101012 (config-router) #network 17.1.1.0

    Dynamic Routing For R3


    B09101012 (config) #router rip
    B09101012 (config-router) #network 10.1.1.0
    B09101012 (config-router) #network 12.1.1.0

    [7]

    Data Communication And Networking

    Azfer Pervaiz
    B09101012

    B09101012 (config-router) #network 18.1.1.0

    Dynamic Routing For R4


    B09101012 (config) #router rip
    B09101012 (config-router) #network 10.1.1.0
    B09101012 (config-router) #network 13.1.1.0
    B09101012 (config-router) #network 19.1.1.0

    LAB 6
    Dynamic Routing
    [8]

    Data Communication And Networking

    Azfer Pervaiz
    B09101012

    Using IGRP

    Router 0
    --- System Configuration Dialog --Continue with configuration dialog? [Yes/no]: no
    Press RETURN to get started!
    Router>enable
    Router# configure terminal
    Router (config) #hostname B09101012
    B09101012 (config) # interface serial 2/0
    B09101012 (config-if) #ip address 192.168.2.1 255.255.255.0
    B09101012 (config-if) #clock rate 9600
    B09101012 (config-if) #no shutdown
    B09101012 (config-if) #exit
    B09101012 (config) # interface fastethernet 0/0
    B09101012 (config-if) #ip address 192.168.1.1 255.255.255.0
    B09101012 (config-if) #no shutdown
    B09101012 (config-if) #exit

    Router 1
    --- System Configuration Dialog --Continue with configuration dialog? [Yes/no]: no
    Press RETURN to get started!
    Router>enable
    Router# configure terminal
    Router (config) #hostname B09101012
    B09101012 (config) # interface serial 2/0
    B09101012 (config-if) #ip address 192.168.2.2 255.255.255.0
    B09101012 (config-if) #clock rate 9600
    B09101012 (config-if) #no shutdown
    B09101012 (config-if) #exit
    B09101012 (config) # interface serial 3/0
    B09101012 (config-if) #ip address 192.168.4.1 255.255.255.0
    B09101012 (config-if) #clock rate 9600
    B09101012 (config-if) #no shutdown
    B09101012 (config-if) #exit

    B09101012 (config) # interface fastethernet 0/0


    B09101012 (config-if) #ip address 192.168.3.1 255.255.255.0
    B09101012 (config-if) #no shutdown
    B09101012 (config-if) #exit

    [9]

    Data Communication And Networking

    Azfer Pervaiz
    B09101012

    Router 2
    --- System Configuration Dialog --Continue with configuration dialog? [Yes/no]: no
    Press RETURN to get started!
    Router>enable
    Router# configure terminal
    Router (config) #hostname B09101012
    B09101012 (config) # interface serial 3/0
    B09101012 (config-if) #ip address 192.168.4.2 255.255.255.0
    B09101012 (config-if) #clock rate 9600
    B09101012 (config-if) #no shutdown
    B09101012 (config-if) #exit
    B09101012 (config) # interface fastethernet 0/0
    B09101012 (config-if) #ip address 192.168.5.1 255.255.255.0
    B09101012 (config-if) #no shutdown
    B09101012 (config-if) #exit

    Pc 0
    IP Address: 192.168.1.2
    Subnet Mask: 255.255.255.0
    Default Gateway: 192.168.1.1

    Pc 1
    IP Address: 192.168.1.3
    Subnet Mask: 255.255.255.0
    Default Gateway:

    Pc 2
    IP Address: 192.168.3.2
    Subnet Mask: 255.255.255.0
    Default Gateway: 192.168.3.1

    Pc 3
    IP Address: 192.168.3.3
    Subnet Mask: 255.255.255.0
    Default Gateway: 192.168.3.1

    Pc 4
    IP Address: 192.168.5.2
    Subnet Mask: 255.255.255.0
    Default Gateway: 192.168.5.1

    Pc 5
    IP Address: 192.168.5.3
    Subnet Mask: 255.255.255.0
    Default Gateway: 19.168.5.1

    Dynamic Routing For R0


    B09101012 (config) #router igrp 1
    B09101012 (config-router) #network 192.168.1.0
    B09101012 (config-router) #network 192.168.2.0

    Dynamic Routing For R1


    B09101012 (config) #router igrp 1
    B09101012 (config-router) #network 192.168.2.0
    B09101012 (config-router) #network 192.168.3.0
    B09101012 (config-router) #network 192.168.4.0

    [10]

    Data Communication And Networking

    Azfer Pervaiz
    B09101012

    Dynamic Routing For R2


    B09101012 (config) #router igrp 1
    B09101012 (config-router) #network 192.168.4.0
    B09101012 (config-router) #network 192.168.5.0

    LAB 7
    Dynamic Routing
    Using EIGRP
    [11]

    Data Communication And Networking

    Azfer Pervaiz
    B09101012

    Router 0
    --- System Configuration Dialog --Continue with configuration dialog? [Yes/no]: no
    Press RETURN to get started!
    Router>enable
    Router# configure terminal
    Router (config) #hostname B09101012
    B09101012 (config) # interface serial 2/0
    B09101012 (config-if) #ip address 192.168.2.1 255.255.255.0
    B09101012 (config-if) #clock rate 9600
    B09101012 (config-if) #no shutdown
    B09101012 (config-if) #exit
    B09101012 (config) # interface fastethernet 0/0
    B09101012 (config-if) #ip address 192.168.1.1 255.255.255.0
    B09101012 (config-if) #no shutdown
    B09101012 (config-if) #exit

    Router 1
    --- System Configuration Dialog --Continue with configuration dialog? [Yes/no]: no
    Press RETURN to get started!
    Router>enable
    Router# configure terminal
    Router (config) #hostname B09101012
    B09101012 (config) # interface serial 2/0
    B09101012 (config-if) #ip address 192.168.2.2 255.255.255.0
    B09101012 (config-if) #clock rate 9600
    B09101012 (config-if) #no shutdown
    B09101012 (config-if) #exit
    B09101012 (config) # interface serial 3/0
    B09101012 (config-if) #ip address 192.168.4.1 255.255.255.0
    B09101012 (config-if) #clock rate 9600
    B09101012 (config-if) #no shutdown
    B09101012 (config-if) #exit

    B09101012 (config) # interface fastethernet 0/0


    B09101012 (config-if) #ip address 192.168.3.1 255.255.255.0
    B09101012 (config-if) #no shutdown
    B09101012 (config-if) #exit

    Router 2
    [12]

    Data Communication And Networking

    Azfer Pervaiz
    B09101012

    --- System Configuration Dialog --Continue with configuration dialog? [Yes/no]: no


    Press RETURN to get started!
    Router>enable
    Router# configure terminal
    Router (config) #hostname B09101012
    B09101012 (config) # interface serial 3/0
    B09101012 (config-if) #ip address 192.168.4.2 255.255.255.0
    B09101012 (config-if) #clock rate 9600
    B09101012 (config-if) #no shutdown
    B09101012 (config-if) #exit
    B09101012 (config) # interface fastethernet 0/0
    B09101012 (config-if) #ip address 192.168.5.1 255.255.255.0
    B09101012 (config-if) #no shutdown
    B09101012 (config-if) #exit

    Pc 0
    IP Address: 192.168.1.2
    Subnet Mask: 255.255.255.0
    Default Gateway: 192.168.1.1

    Pc 1
    IP Address: 192.168.3.2
    Subnet Mask: 255.255.255.0
    Default Gateway: 192.168.3.1

    Pc 3
    IP Address: 192.168.5.2
    Subnet Mask: 255.255.255.0
    Default Gateway: 192.168.5.1

    Dynamic Routing For R0


    B09101012 (config) #router eigrp 1
    B09101012 (config-router) #network 192.168.1.0
    B09101012 (config-router) #network 192.168.2.0

    Dynamic Routing For R1


    B09101012 (config) #router eigrp 1
    B09101012 (config-router) #network 192.168.2.0
    B09101012 (config-router) #network 192.168.3.0
    B09101012 (config-router) #network 192.168.4.0

    Dynamic Routing For R2


    B09101012 (config) #router eigrp 1
    B09101012 (config-router) #network 192.168.4.0
    B09101012 (config-router) #network 192.168.5.0

    LAB 8
    Dynamic Routing
    Using OSPF
    [13]

    Data Communication And Networking

    Azfer Pervaiz
    B09101012

    Router 0
    --- System Configuration Dialog --Continue with configuration dialog? [Yes/no]: no
    Press RETURN to get started!
    Router>enable
    Router# configure terminal
    Router (config) #hostname B09101012
    B09101012 (config) # interface serial 2/0
    B09101012 (config-if) #ip address 192.168.2.1 255.255.255.0
    B09101012 (config-if) #clock rate 9600
    B09101012 (config-if) #no shutdown
    B09101012 (config-if) #exit
    B09101012 (config) # interface fastethernet 0/0
    B09101012 (config-if) #ip address 192.168.1.1 255.255.255.0
    B09101012 (config-if) #no shutdown
    B09101012 (config-if) #exit

    Router 1
    --- System Configuration Dialog --Continue with configuration dialog? [Yes/no]: no
    Press RETURN to get started!
    Router>enable
    Router# configure terminal
    Router (config) #hostname B09101012
    B09101012 (config) # interface serial 2/0
    B09101012 (config-if) #ip address 192.168.2.2 255.255.255.0
    B09101012 (config-if) #clock rate 9600
    B09101012 (config-if) #no shutdown
    B09101012 (config-if) #exit

    B09101012 (config) # interface serial 3/0


    B09101012 (config-if) #ip address 192.168.4.1 255.255.255.0
    B09101012 (config-if) #clock rate 9600
    B09101012 (config-if) #no shutdown
    B09101012 (config-if) #exit

    [14]

    Data Communication And Networking

    Azfer Pervaiz
    B09101012

    B09101012 (config) # interface fastethernet 0/0


    B09101012 (config-if) #ip address 192.168.3.1 255.255.255.0
    B09101012 (config-if) #no shutdown
    B09101012 (config-if) #exit

    Router 2
    --- System Configuration Dialog --Continue with configuration dialog? [Yes/no]: no
    Press RETURN to get started!
    Router>enable
    Router# configure terminal
    Router (config) #hostname B09101012
    B09101012 (config) # interface serial 3/0
    B09101012 (config-if) #ip address 192.168.4.2 255.255.255.0
    B09101012 (config-if) #clock rate 9600
    B09101012 (config-if) #no shutdown
    B09101012 (config-if) #exit
    B09101012 (config) # interface fastethernet 0/0
    B09101012 (config-if) #ip address 192.168.5.1 255.255.255.0
    B09101012 (config-if) #no shutdown
    B09101012 (config-if) #exit

    Pc 0
    IP Address: 192.168.1.2
    Subnet Mask: 255.255.255.0
    Default Gateway: 192.168.1.1

    Pc 1
    IP Address: 192.168.3.2
    Subnet Mask: 255.255.255.0
    Default Gateway: 192.168.3.1

    Pc 3
    IP Address: 192.168.5.2
    Subnet Mask: 255.255.255.0
    Default Gateway: 192.168.5.1

    Dynamic Routing For R0


    B09101012 (config) #router ospf 1
    B09101012 (config-router) #network 192.168.1.0 0.0.0.255 area 0
    B09101012 (config-router) #network 192.168.2.0 0.0.0.255 area 0

    Dynamic Routing For R1


    B09101012 (config) #router ospf 1
    B09101012 (config-router) #network 192.168.2.0 0.0.0.255 area 0
    B09101012 (config-router) #network 192.168.3.0 0.0.0.255 area 0
    B09101012 (config-router) #network 192.168.4.0 0.0.0.255 area 0

    Dynamic Routing For R2


    B09101012 (config) #router ospf 1
    B09101012 (config-router) #network 192.168.4.0 0.0.0.255 area 0
    B09101012 (config-router) #network 192.168.5.0 0.0.0.255 area 0

    [15]

    You might also like
