ME 251 Problem 6.

Fall 2013

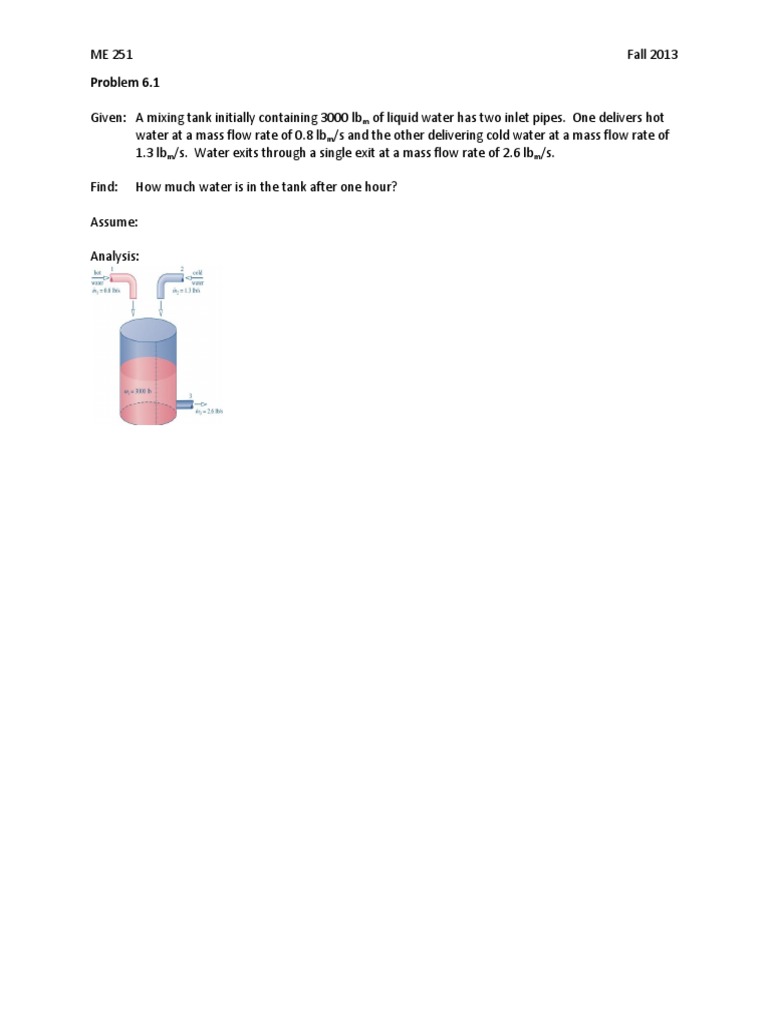

Given: A mixing tank initially containing 3000 lbm of liquid water has two inlet pipes. One delivers hot water at a mass flow rate of 0.8 lbm/s and the other delivering cold water at a mass flow rate of 1.3 lbm/s. Water exits through a single exit at a mass flow rate of 2.6 lbm/s. Find: How much water is in the tank after one hour?

Assume: Analysis:

ME 251 Problem 6.2

Fall 2013

Given: Air enters a home electric furnace at 75oF, 1 atm, with volume flow rate of 800 ft3/min. The furnace delivers air at 120oF, 1 atm to a duct system with three branches consisting of two with 6 inch diameter ducts and one that is 12 inches in diameter. The velocity in each of the 6 inch ducts is 10 ft/s under steady state operation. Find: a) The mass flow rate of air entering the furnace (lbm/s), b) the volumetric flow rate in each 6 inch duct (ft3/min), and c) the velocity in the 12 inch duct (ft/s).

Assume:

Analysis:

ME 251 Problem 6.3

Fall 2013

Given: R-134a enters a horizontal pipe operating at steady-state at 40oC, 300 kPa, and velocity of 35 m/s. At the exit, the temperature is 50oCand the pressure is 240 kPa. The inside pipe diameter is 0.038 m. Find: a) the mass flow rate of refrigerant (kg/s), b) the velocity at the exit (m/s), and c) the rate of heat transfer between the pipe and surroundings (kW).

Assume: Analysis:

ME 251 Problem 6.4

Fall 2013

Given: Steam enters a well-insulated, horizontal nozzle operating at steady-state with a velocity of 10 m/s. The specific enthalpy decreases by 45 kJ/kg from inlet to exit. Find: The velocity at the exit (m/s).

Assume: Analysis:

ME 251 Problem 6.5

Fall 2013

Given: Steam enters a turbine operating at steady-state with a mass flow rate of 10 kg/min, a specific enthalpy of 3100 kJ/kg, and a velocity of 30 m/s. At the exit, the specific enthalpy is 2300 kJ/kg and the velocity is 45 m/s. The elevation of the inlet is 3 m higher than at the exit. Heat transfer from the turbine to its surroundings occurs at a rate of 1.1 kJ/kg of steam. Find: The power developed by the turbine (kW).

ME 251 Problem 6.6

Fall 2013

Given: Air enters a compressor operating at steady-state with a pressure of 14.5 lbf/in2, a temperature of 80oF, and a volume flow rate of 20 ft3/s. Air exits the compressor at 50 lbf/in2. Heat transfer occurs at a rate of 20.5 Btu/lbm of air flowing. Compressor power input is 105 hp. Find: The exit temperature (oF). Assume: Analysis:
