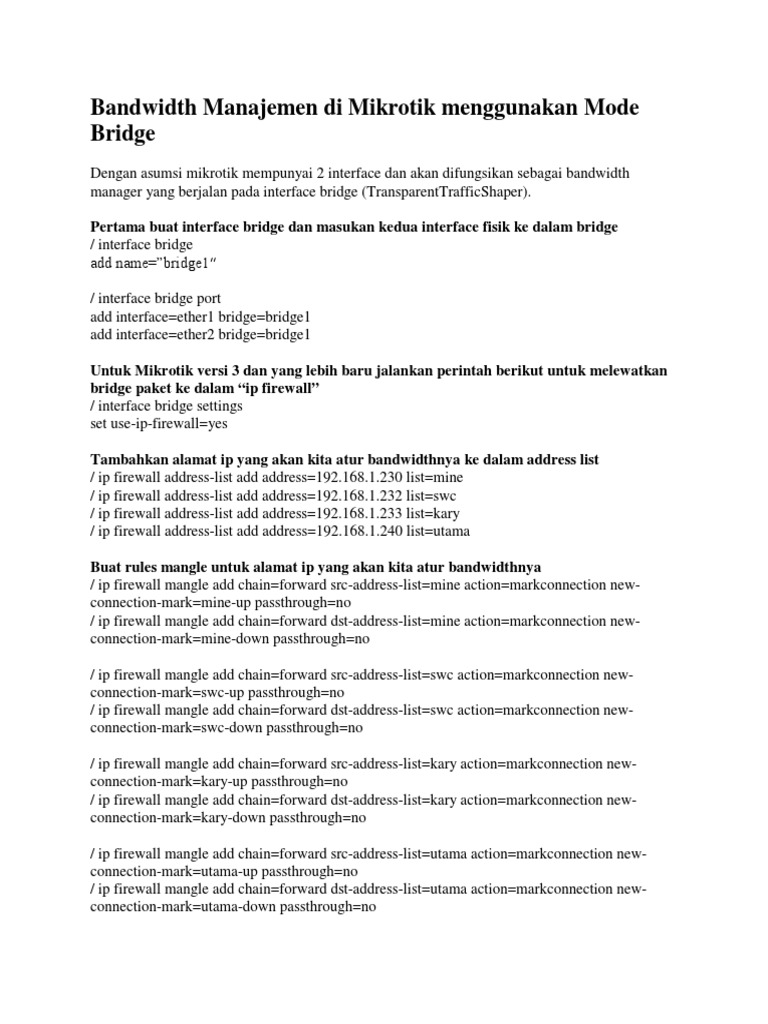

Bandwidth Manajemen di Mikrotik menggunakan Mode Bridge

Dengan asumsi mikrotik mempunyai 2 interface dan akan difungsikan sebagai bandwidth manager yang berjalan pada interface bridge (TransparentTrafficShaper). Pertama buat interface bridge dan masukan kedua interface fisik ke dalam bridge / interface bridge add name=bridge1 / interface bridge port add interface=ether1 bridge=bridge1 add interface=ether2 bridge=bridge1 Untuk Mikrotik versi 3 dan yang lebih baru jalankan perintah berikut untuk melewatkan bridge paket ke dalam ip firewall / interface bridge settings set use-ip-firewall=yes Tambahkan alamat ip yang akan kita atur bandwidthnya ke dalam address list / ip firewall address-list add address=192.168.1.230 list=mine / ip firewall address-list add address=192.168.1.232 list=swc / ip firewall address-list add address=192.168.1.233 list=kary / ip firewall address-list add address=192.168.1.240 list=utama Buat rules mangle untuk alamat ip yang akan kita atur bandwidthnya / ip firewall mangle add chain=forward src-address-list=mine action=markconnection newconnection-mark=mine-up passthrough=no / ip firewall mangle add chain=forward dst-address-list=mine action=markconnection newconnection-mark=mine-down passthrough=no / ip firewall mangle add chain=forward src-address-list=swc action=markconnection newconnection-mark=swc-up passthrough=no / ip firewall mangle add chain=forward dst-address-list=swc action=markconnection newconnection-mark=swc-down passthrough=no / ip firewall mangle add chain=forward src-address-list=kary action=markconnection newconnection-mark=kary-up passthrough=no / ip firewall mangle add chain=forward dst-address-list=kary action=markconnection newconnection-mark=kary-down passthrough=no / ip firewall mangle add chain=forward src-address-list=utama action=markconnection newconnection-mark=utama-up passthrough=no / ip firewall mangle add chain=forward dst-address-list=utama action=markconnection newconnection-mark=utama-down passthrough=no

Buat Queue untuk masing-masing host /queue tree add name=mine-up parent=global-in packet-mark=mine-down limit-at=32 maxlimit=64 /queue tree add name=mine-down parent=global-in packet-mark=mine-down limitat=32 maxlimit=64 /queue tree add name=swc-up parent=global-in packet-mark=swc-down limit-at=32 maxlimit=64 /queue tree add name=swc-down parent=global-in packet-mark=swc-down limitat=32 maxlimit=64 /queue tree add name=kary-up parent=global-in packet-mark=kary-down limit-at=32 maxlimit=64 /queue tree add name=kary-down parent=global-in packet-mark=kary-down limitat=32 maxlimit=64 /queue tree add name=utama-up parent=global-in packet-mark=utama-down limit-at=32 maxlimit=64 /queue tree add name=utama-down parent=global-in packet-mark=utama-down limitat=32 maxlimit=64 Selain itu, bisa juga digunakan Simple Queue semisal seperti berikut: /queue simple name=kary target-addresses=192.168.1.233/32 dst-address=0.0.0.0/0 interface=all parent=none direction=both priority=8 queue=default-small/default-small limit-at=3M/3M max-limit=3M/3M burst-limit=0/0 burst-threshold=0/0 burst-time=0s/0s total-queue=default-small /queue simple name=utama target-addresses=192.168.1.240/32 dst-address=0.0.0.0/0 interface=all parent=none direction=both priority=8 queue=default-small/default-small limit-at=0/0 max-limit=0/0 burst-limit=0/0 burst-threshold=0/0 burst-time=0s/0s total-queue=default-small /queue simple name=swc target-addresses=192.168.1.232/32 dst-address=0.0.0.0/0 interface=all parent=none direction=both priority=8 queue=default-small/default-small limit-at=2M/2M max-limit=2M/2M burst-limit=0/0 burst-threshold=0/0 burst-time=0s/0s total-queue=default-small Dan bisa juga ditambahkan simple queue yang lain semisal: /queue simple name=raja target-addresses=192.168.1.241/32 dst-address=0.0.0.0/0 interface=all parent=none direction=both priority=8 queue=default-small/default-small limit-at=1M/1M max-limit=1M/1M

burst-limit=0/0 burst-threshold=0/0 burst-time=0s/0s total-queue=default-small /queue simple name=riset target-addresses=192.168.1.236/32 dst-address=0.0.0.0/0 interface=all parent=none direction=both priority=8 queue=default-small/default-small limit-at=2M/2M max-limit=2M/2M burst-limit=0/0 burst-threshold=0/0 burst-time=0s/0s total-queue=default-small /queue simple name=cisco target-addresses=192.168.1.244/32 dst-address=0.0.0.0/0 interface=all parent=none direction=both priority=8 queue=default-small/default-small limit-at=512k/512k max-limit=512k/512k burst-limit=0/0 burst-threshold=0/0 burst-time=0s/0s total-queue=default-small /queue simple name=lab target-addresses=192.168.1.245/32 dst-address=0.0.0.0/0 interface=all parent=none direction=both priority=8 queue=default-small/default-small limit-at=256k/256k max-limit=256k/256k burst-limit=0/0 burst-threshold=0/0 burst-time=0s/0s total-queue=default-small
