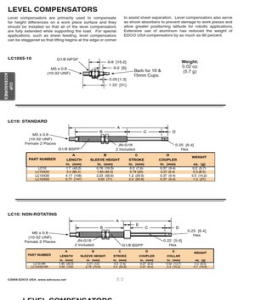

    LEVEL COMPENSATORS

    Level compensators are primarily used to compensate to assist sheet separation. Level compensators also serve
    for height differences on a work piece surface and they as shock absorbers to prevent damage to work pieces and
    should be installed so that all of the level compensators allow greater positioning latitude for robotic applications.
    are fully extended while supporting the load. For special Extensive use of aluminum has reduced the weight of
    applications, such as sheet feeding, level compensators EDCO USA compensators by as much as 60 percent.
    can be staggered so that lifting begins at the edge or corner

    LC10X5-10 G1/8 NPSF


    0.6 [15.2] Weight:
    0.2 [5] 0.02 oz.
    M5 x 0.8
    (10-32 UNF)
    Barb for 10 & (5.7 g)
    ACCESSORIES

    15mm Cups.
    0.05 [1.3]
    CUP

    1.22 [31]

    LC10: STANDARD
    A
    B C D
    M5 x 0.8
    (10-32 UNF)
    Female 2 Places JN-G18 0.25 [6.4]
    G1/8 BSPP 2 Included Hex
    A B C D
    WEIGHT
    PART NUMBER LENGTH SLEEVE HEIGHT STROKE COUPLER
    in. (mm) in. (mm) in. (mm) in. (mm) oz. (g)
    LC10 1.7 (43.2) 0.76 (19.3) 0.3 (7.6) 0.37 (9.4) 0.2 (5.7)
    LC10X20 3.4 (86.4) 1.83 (46.5) 0.79 (20) 0.37 (9.4) 0.3 (8.5)
    LC10X30 4.17 (106) 2.23 (56.6) 1.2 (30.5) 0.37 (9.4) 0.5 (14.2)
    LC10X50 5.77 (147) 3.03 (77) 2.0 (50.8) 0.37 (9.4) 1.3 (37)

    LC10: NON-ROTATING
    A
    E
    B C D
    0.25 [6.4]
    M5 x 0.8
    Hex
    (10-32 UNF)
    Female 2 Places JN-G18 0.22 [5.6]
    2 Included G1/8 BSPP Hex
    A B C D E
    WEIGHT
    PART NUMBER LENGTH SLEEVE HEIGHT STROKE COUPLER COLLAR
    in. (mm) in. (mm) in. (mm) in. (mm) in. (mm) oz. (g)
    LC10-NR 1.95 (49.5) 0.51 (13) 0.3 (7.6) 0.37 (9.4) 0.54 (13.7) 0.3 (8.5)
    LC10X50-NR 5.92 (150) 2.78 (70.6) 2.0 (50.8) 0.37 (9.4) 0.4 (10.2) 0.7 (19.8)

    ©2008 EDCO USA. www.edcousa.net 5:3


    LEVEL COMPENSATORS
    LC18: STANDARD
    A
    B C D
    G1/8 NPSF G1/8 NPSF
    Female Male

    JN-M16X1
    0.5 [12.7] Hex M16 x 1.0 2 Included
    A B C D
    WEIGHT
    PART NUMBER LENGTH SLEEVE HEIGHT STROKE HEX HEIGHT
    in. (mm) in. (mm) in. (mm) in. (mm) oz. (g)
    LC18 2.89 (73.4) 1.38 (35.1) 0.79 (20.1) 0.13 (3.3) 1.0 (28.3)

    ACCESSORIES
    LC18X35 4.47 (114) 2.33 (59.2) 1.4 (35.6) 0.13 (3.3) 1.5 (42.5)
    LC18X50 5.75 (146) 2.97 (75.4) 2.0 (50.8) 0.13 (3.3) 1.8 (51)

    CUP
    LC18: 20mm CLAMP MOUNT
    A
    B C D
    G1/8 NPSF G1/8 NPSF
    Female Male

    0.5 [12.7] Hex 0.78 [20] O.D.


    A B C D
    WEIGHT
    PART NUMBER LENGTH SLEEVE HEIGHT STROKE HEX HEIGHT
    in. (mm) in. (mm) in. (mm) in. (mm) oz. (g)
    LC18-20 2.89 (73.4) 1.38 (35.1) 0.79 (20.1) 0.13 (3.3) 1.2 (35.2)
    LC18X35-20 4.47 (114) 2.33 (59.2) 1.4 (35.6) 0.13 (3.3) 2.1 (59.5)
    LC18X50-20 5.75 (146) 2.97 (75.4) 2.0 (50.8) 0.13 (3.3) 2.6 (73.7)

    LC18: NON-ROTATING
    A
    B D C
    G1/8 NPSF G1/8 NPSF
    Female Male
    JN-M16X1
    0.5 [12.7] Hex 2 Included M16 x 1.0 0.44 [11.1] Hex
    A B C D
    WEIGHT
    PART NUMBER LENGTH SLEEVE HEIGHT STROKE COLLAR
    in. (mm) in. (mm) in. (mm) in. (mm) oz. (g)
    LC18-NR 2.95 (75) 1.08 (27.4) 0.79 (20.1) 0.5 (12.7) 1.3 (36.8)
    LC18X35-NR 4.51 (115) 2.62 (66.5) 1.4 (35.6) 0.5 (12.7) 3.4 (96)
    LC18X50-NR 5.82 (148) 2.67 (67.8) 2.0 (50.8) 0.5 (12.7) 3.9 (111)

    LC12: STANDARD
    O-RING SEAL
    0.7 [17.8] 2 PLACES
    Weight:
    G1/2 NPSF G1/2 NPSF 5.8 oz.
    (164 g)
    1.0 (25.4) HEX 2.36 [59.9]
    2 PLACES
    5:4 ©2008 EDCO USA. www.edcousa.net
