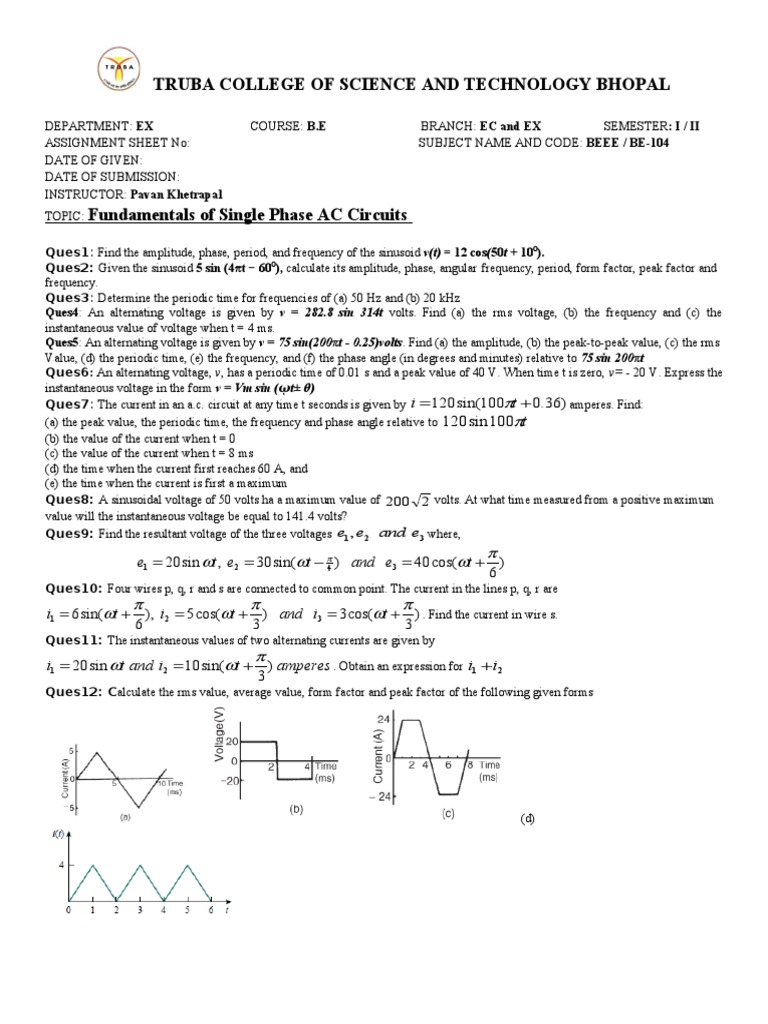

TRUBA COLLEGE OF SCIENCE AND TECHNOLOGY BHOPAL

DEPARTMENT: EX
ASSIGNMENT SHEET No:
DATE OF GIVEN:
DATE OF SUBMISSION:
INSTRUCTOR: Pavan Khetrapal
TOPIC: Fundamentals

COURSE: B.E

BRANCH: EC and EX
SEMESTER: I / II
SUBJECT NAME AND CODE: BEEE / BE-104

of Single Phase AC Circuits

Ques1: Find the amplitude, phase, period, and frequency of the sinusoid v(t) = 12 cos(50t + 100).
Ques2: Given the sinusoid 5 sin (4t 600), calculate its amplitude, phase, angular frequency, period, form factor, peak factor and
frequency.
Ques3: Determine the periodic time for frequencies of (a) 50 Hz and (b) 20 kHz
Ques4: An alternating voltage is given by v = 282.8 sin 314t volts. Find (a) the rms voltage, (b) the frequency and (c) the
instantaneous value of voltage when t = 4 ms.
Ques5: An alternating voltage is given by v = 75 sin(200t - 0.25)volts. Find (a) the amplitude, (b) the peak-to-peak value, (c) the rms
Value, (d) the periodic time, (e) the frequency, and (f) the phase angle (in degrees and minutes) relative to 75 sin 200t
Ques6: An alternating voltage, v, has a periodic time of 0.01 s and a peak value of 40 V. When time t is zero, v= - 20 V. Express the
instantaneous voltage in the form v = Vm sin (t )
Ques7: The current in an a.c. circuit at any time t seconds is given by i =120 sin(100t + 0.36) amperes. Find:
(a) the peak value, the periodic time, the frequency and phase angle relative to 120 sin 100t
(b) the value of the current when t = 0
(c) the value of the current when t = 8 ms
(d) the time when the current first reaches 60 A, and
(e) the time when the current is first a maximum
Ques8: A sinusoidal voltage of 50 volts ha a maximum value of 200 2 volts. At what time measured from a positive maximum
value will the instantaneous voltage be equal to 141.4 volts?
Ques9: Find the resultant voltage of the three voltages e1 , e2 and e3 where,

e1 = 20 sin t , e2 = 30 sin(t 4 ) and e3 = 40 cos(t +

Ques10: Four wires p, q, r and s are connected to common point. The current in the lines p, q, r are

i1 = 6 sin(t +

), i2 = 5 cos(t +

) and i3 = 3 cos(t +

) . Find the current in wire s.

Ques11: The instantaneous values of two alternating currents are given by

i1 = 20 sin t and i2 = 10 sin(t +

) amperes . Obtain an expression for i1 + i2

Ques12: Calculate the rms value, average value, form factor and peak factor of the following given forms

(d)

(e)

(f)

(g)
