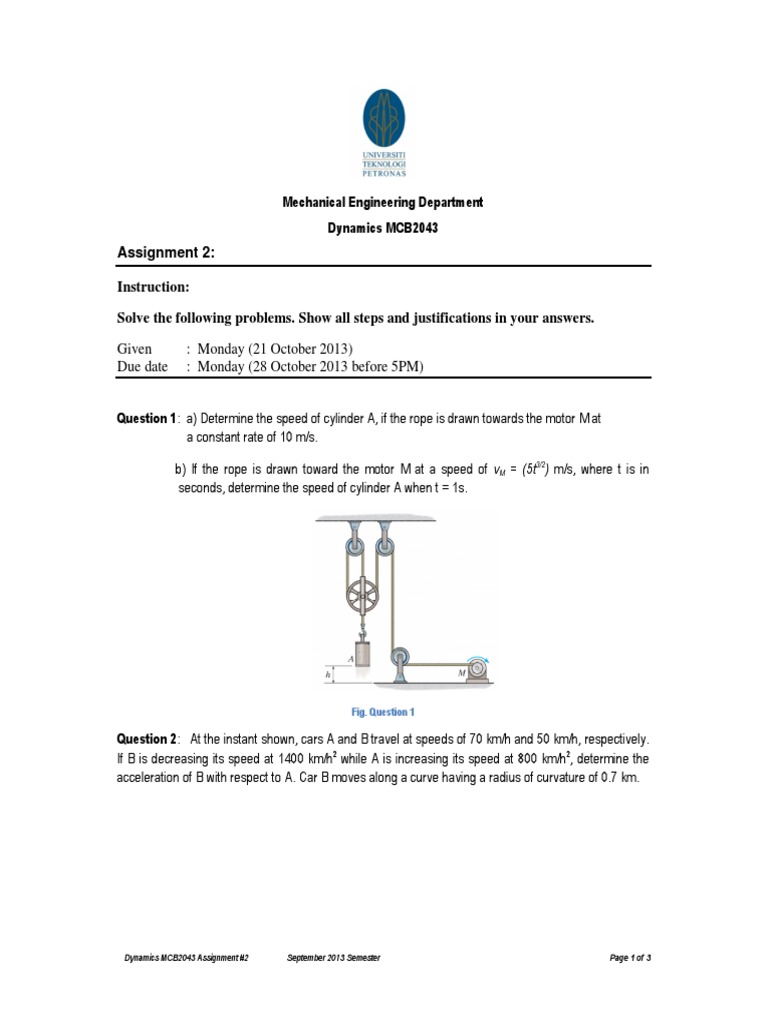

Mechanical Engineering Department Dynamics MCB2043 Assignment 2: Instruction: Solve the following problems.

Show all steps and justifications in your answers. Given Due date : Monday (21 October 2013) : Monday (28 October 2013 before 5PM)

Question 1: a) Determine the speed of cylinder A, if the rope is drawn towards the motor M at a constant rate of 10 m/s. b) If the rope is drawn toward the motor M at a speed of vM = (5t3/2) m/s, where t is in seconds, determine the speed of cylinder A when t = 1s.

Fig. Question 1

Question 2: At the instant shown, cars A and B travel at speeds of 70 km/h and 50 km/h, respectively. If B is decreasing its speed at 1400 km/h2 while A is increasing its speed at 800 km/h2, determine the acceleration of B with respect to A. Car B moves along a curve having a radius of curvature of 0.7 km.

Dynamics MCB2043 Assignment #2

September 2013 Semester

Page 1 of 3

Fig. Question 2

Question 3: If the coefficient of kinetic friction between the 50-kg crate and the ground is 0.3, a) Draw the free-body diagram and kinetic diagram b) Determine the distance the crate travels and its velocity when t = 3 s. the crate starts from rest, and p = 200 N.

Fig. Question 3

Question 4: The 800 kg car is traveling over the hill having the shape of a parabola. If the driver maintains a constant speed of 9 m/s, a) Draw the free-body diagram and kinetic diagram of the car at point A, b) Determine both the resultant normal force and the resultant frictional force that all the wheels of the car exert on the road at the instant it reaches point A. Neglect the size of the car.(13-68)

Fig. Question 4
Dynamics MCB2043 Assignment #2 September 2013 Semester Page 2 of 3

Question 5: The boy of mass 40kg is sliding down the spiral slide at a constant speed such that his position, measured from the top of the chute, has components r = 1.5 m, 0.7 rad, and z = (0.5t) m, where t is in seconds. a) Draw the free-body diagram and kinetic diagram of the boy. b) Determine the components of force Fr, , and Fz which the slide exerts on the boy.

Fig. Question 5

Dynamics MCB2043 Assignment #2

September 2013 Semester

Page 3 of 3
