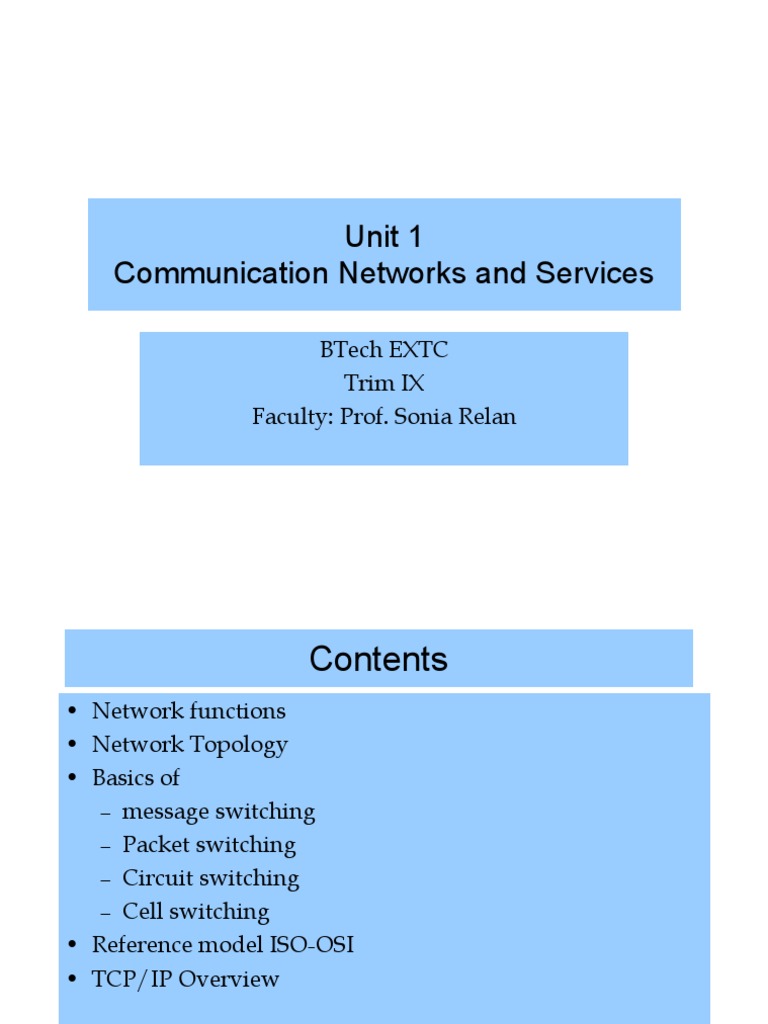

Unit 1 Communication Networks and Services: Btech Extc Trim IX Faculty: Prof. Sonia Relan
Unit 1 Communication Networks and Services: Btech Extc Trim IX Faculty: Prof. Sonia Relan
Contents
Network functions Network Topology Basics of message switching Packet switching Circuit switching Cell switching Reference model ISO-OSI TCP/IP Overview
09/02/2010
Communication Networks
With a large number of devices it is not practical to connect each pair of devices
09/02/2010
Communication Networks
A communication network provides a general solution to the problem of connecting many devices: Connect each device to a network node Network nodes exchange information and carry the information from a source device to a destination device. Note: Network nodes do not generate information
09/02/2010
Communication Networks
A generic communication network:
09/02/2010
09/02/2010
09/02/2010
A Communications Model
09/02/2010
A Communications Model
Key elements of the model Source Entity that generates data Person who speaks into the phone, or computer sending data to the modem Transmitter Device to transform/encode the signal generated by the source The transformed signal is actually sent over the transmission system Modem transforms digital data to analog signal that can be handled by telephone network Transmission system Medium that will allow transport of signal from one point to another Telephone network for our computer/modem example Receiver Device to decode the received signal for handling by destination device Modem converts the received analog data back to digital for use by the computer Destination Entity that uses the data Computer on the other end of receiving modem
09/02/2010
Communications Tasks
Transmission system utilization Interfacing Signal generation Synchronization Exchange management Error detection and correction Flow control Addressing Routing Recovery Message formatting Security Network management
09/02/2010
10
09/02/2010
11
Access to remote information(WWW etc) Person-to-person communication(Email, Instant Messaging etc, Phone) Interactive entertainment(Remote operated or online Games) Electronic commerce
Mobile Users Notebook computers, PDAs, Cell phones, etc Social Issues
09/02/2010 Prof. Sonia Relan 12
Networking Terminology
Media Client/Server Networks Peer to Peer LAN, WAN, MAN, SAN Network Operating System NIC: Network Interface Card Networking Hardware Physical Structures: Topology: Types of Connection: Point to Point, Multipoint Networking Software Virtual Private Networks Extranet Intranet VPNs can be intranet VPNs or extranet VPNs
09/02/2010 Prof. Sonia Relan 13
Network Hardware
Local Area Networks Metropolitan Area Networks Wide Area Networks Internetworks
09/02/2010
15
09/02/2010
16
09/02/2010
17
09/02/2010
20
Physical Topology
Mesh Every node must be connected to every other node. For Ex. Node n must be connected to N-1 node, hence we need n(n-1)/2 links for duplex mode. Star Each device has a dedicated point to point link only to a central controller, usually called a hub. Controller act as an exchange. Less expensive then mesh. Used in LANs Bus One long cable act as a backbone to link all the devices in the network. Multipoint Nodes connected to cable by drop line and taps. Ring Each device has a dedicated point to point connetion with only the two devices on either side of it. Hybrid
09/02/2010
22
09/02/2010
23
Transmission system the means for transmitting information across a physical medium: copper telephone wires, coaxial TV cable, optical fiber. Information representation the format of the information handled by the network, voice or bits. Addressing the means for identifying points of connection to the network: telephone number or IP address
09/02/2010
24
09/02/2010
25
Network Software
Protocol Hierarchies Design Issues for the Layers Connection-Oriented and Connectionless Services Service Primitives The Relationship of Services to Protocols
09/02/2010
26
Network Software
Protocol Hierarchies
09/02/2010
27
09/02/2010
29
09/02/2010
30
09/02/2010
31
09/02/2010
32
09/02/2010
33
Circuit Switching
In a circuit-switched network, a dedicated communication path is established between two stations through the nodes of the network The dedicated path is called a circuit-switched connection or circuit. A circuit occupies a fixed capacity of each link for the entire lifetime of the connection. Capacity unused by the circuit cannot be used by other circuits Data is not delayed at the switches Circuit-switched communication involves three phases: 1. Circuit Establishment 2. Data Transfer 3. Circuit Termination Busy Signal if capacity for a circuit not available. Most important circuit-switching networks: - Telephone networks - ISDN (Integrated Services Digital Networks)
09/02/2010 Prof. Sonia Relan 34
Circuit Switching
A node in a circuit-switching network
09/02/2010
35
09/02/2010
36
Packet Switching
Data are sent as formatted bit-sequences, so-called packets. Packets have the following structure:
Header and Trailer carry control information Each packet is passed through the network from node to node along some path (Routing) At each node the entire packet is received, stored briefly, and then forwarded to the next node (Store-and-Forward Networks) No capacity is allocated for packets Considerable amount of overhead to compensate for errors Additional bits to add redundancy and extra processing at each node for error detection and correction Average data rate of about 64kbps
09/02/2010
37
Packet Switching
09/02/2010
38
09/02/2010
39
09/02/2010
40
09/02/2010
41
09/02/2010
42
09/02/2010
43
09/02/2010
44
09/02/2010
45
Comparison
09/02/2010
46
PROTOCOL
Merely sending the bit stream from one node to another and expecting a proper communication to occur ! Protocol defines: What is communicated; how it is communicated and When it is communicated. Set of rules governing the transfer of data between entities Used for communication between entities in different systems For two entities to communicate, they must speak the same language Communication must follow some mutually acceptable conventions, referred to as protocol Key elements of a protocol Syntax. Data formats and signal levels Semantics. Control information for coordination and error handling Timing. Speed matching and sequencing
09/02/2010
47
Protocol Architecture
Task of communication broken up into modules For example file transfer could use three modules File transfer application Communication service module Network access module
09/02/2010
48
09/02/2010
49
09/02/2010
50
09/02/2010
52
09/02/2010
53
09/02/2010
54
09/02/2010
55
OSI
Standard model for classifying communications functions Contains seven layers 1. Physical layer Transmits unstructured bit stream over transmission medium Mechanical, electrical, functional, and procedural characteristics to access the medium 2. Data link layer Reliable transfer of information across physical layer Sends blocks/frames with synchronization, error control, and flow control 3. Network layer Separates data transmission and switching technologies from upper layers Establishes, maintains, and terminates connections
09/02/2010
56
OSI
4. Transport layer Reliable and transparent transfer of data between end points End-to-end error recovery and flow control 5. Session layer Control structure for communicating between applications Establishes, maintains, and terminates connections (sessions) between cooperating applications 6. Presentation layer Makes applications independent from differences in data representation 7. Application layer Access to the OSI environment Distributed information services
09/02/2010
57
Network Standardization
Whos Who in the Telecommunications World Whos Who in the International Standards World Whos Who in the Internet Standards World Two types of standards: a) De facto (By Fact) b)De Jure (By Law) i) Proprietary (closed standards) ii) Nonproprietary (Open standards;Developed by groups or committees)
09/02/2010 Prof. Sonia Relan 58
Standards Organizations
Standards are developed by cooperation between: Standards Creation committees, forums and government agencies Standards Creation Committees: a) ISO (International standards Organization,1947)
Provides models for Compatibility, improved Quality, increased productivity decreased prices)
b) ITU-T (International Telecommunication UnionTelecommunication Standards Sector) United nation developed CCITT.
c) IEEE
It sponsored an important project for local area network called Project 802
09/02/2010 Prof. Sonia Relan 60
Classes of Members
National governments (members of United Nations) Sector members (Telecom, Computer, Media) Associate members (Smaller Organizations interested in a particular Study Group) Regulatory agencies (Controlling authorities)
09/02/2010
61
The 802 working groups. The important ones are marked with *. The ones marked with
09/02/2010
are hibernating.
Prof. Sonia Relan 62
Metric Units
09/02/2010
63
