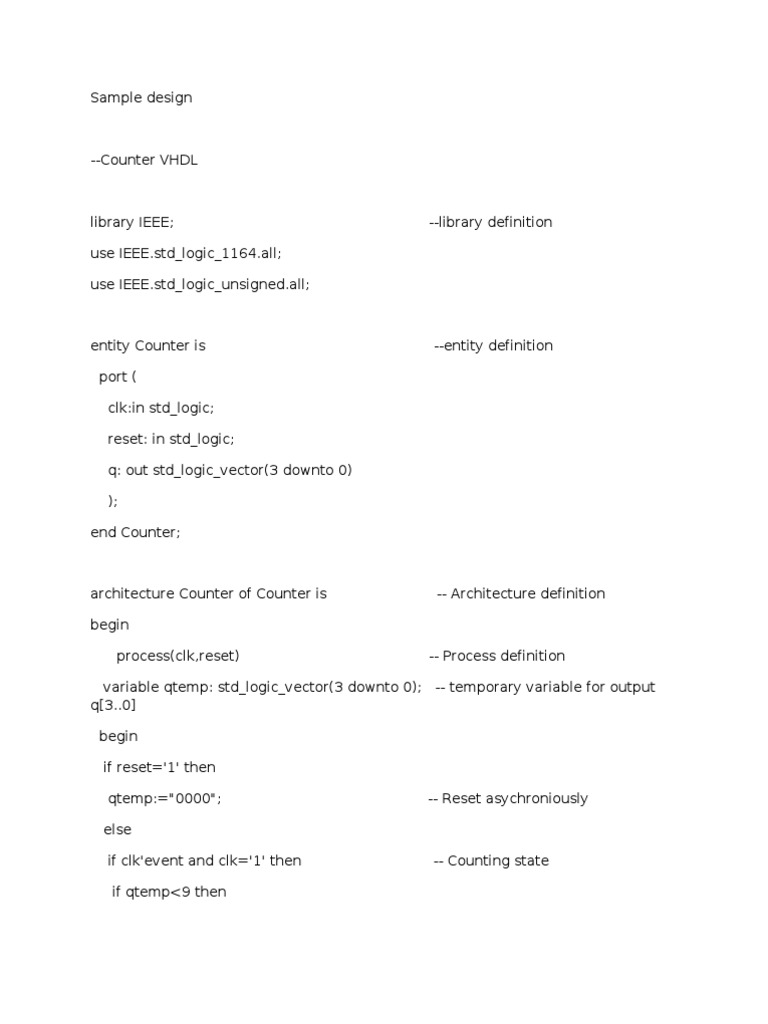

Sample design

--Counter VHDL

library IEEE; --library definition

use IEEE.std_logic_1164.all;

use IEEE.std_logic_unsigned.all;

entity Counter is --entity definition

port (

clk:in std_logic;

reset: in std_logic;

q: out std_logic_vector(3 downto 0)

);

end Counter;

architecture Counter of Counter is -- Architecture definition

begin

process(clk,reset) -- Process definition

variable qtemp: std_logic_vector(3 downto 0); -- temporary variable for output

q[3..0]

begin

if reset='1' then

qtemp:="0000"; -- Reset asychroniously

else

if clk'event and clk='1' then -- Counting state

if qtemp<9 then
 qtemp:=qtemp+1; -- Counter increase

else

qtemp:="0000"; -- Return the zero state

end if;

end if;

q<=qtemp; -- Output

end if;

end process; -- End Process

end Counter; -- End Architecture
