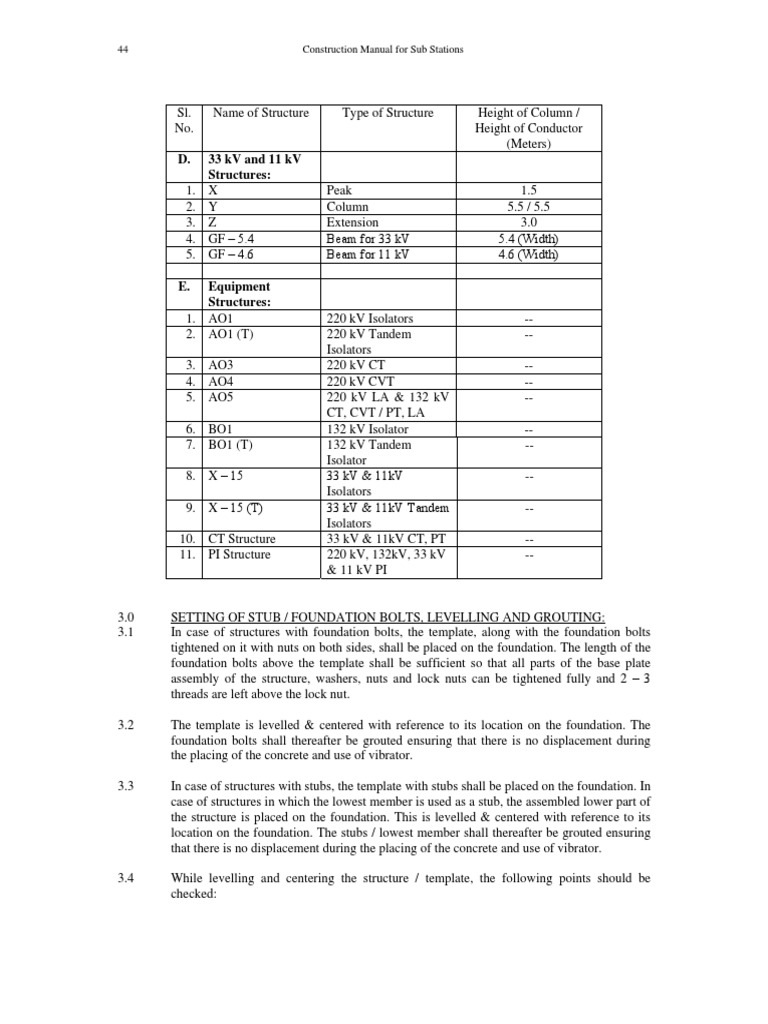

    44

    Construction Manual for Sub Stations

    Sl. No. D. 1. 2. 3. 4. 5. E.

    Name of Structure

    Type of Structure

    Height of Column / Height of Conductor (Meters)

    33 kV and 11 kV Structures: X Y Z GF 5.4 GF 4.6

    Peak Column Extension Beam for 33 kV Beam for 11 kV

    1.5 5.5 / 5.5 3.0 5.4 (Width) 4.6 (Width)

    Equipment Structures: 1. AO1 2. AO1 (T) 3. AO3 4. AO4 5. AO5 6. BO1 7. BO1 (T) 8. X 15 9. X 15 (T)

    10. CT Structure 11. PI Structure

    220 kV Isolators 220 kV Tandem Isolators 220 kV CT 220 kV CVT 220 kV LA & 132 kV CT, CVT / PT, LA 132 kV Isolator 132 kV Tandem Isolator 33 kV & 11kV Isolators 33 kV & 11kV Tandem Isolators 33 kV & 11kV CT, PT 220 kV, 132kV, 33 kV & 11 kV PI

    ------------

    3.0 3.1

    SETTING OF STUB / FOUNDATION BOLTS, LEVELLING AND GROUTING: In case of structures with foundation bolts, the template, along with the foundation bolts tightened on it with nuts on both sides, shall be placed on the foundation. The length of the foundation bolts above the template shall be sufficient so that all parts of the base plate assembly of the structure, washers, nuts and lock nuts can be tightened fully and 2 3 threads are left above the lock nut. The template is levelled & centered with reference to its location on the foundation. The foundation bolts shall thereafter be grouted ensuring that there is no displacement during the placing of the concrete and use of vibrator. In case of structures with stubs, the template with stubs shall be placed on the foundation. In case of structures in which the lowest member is used as a stub, the assembled lower part of the structure is placed on the foundation. This is levelled & centered with reference to its location on the foundation. The stubs / lowest member shall thereafter be grouted ensuring that there is no displacement during the placing of the concrete and use of vibrator. While levelling and centering the structure / template, the following points should be checked:

    3.2

    3.3

    3.4
