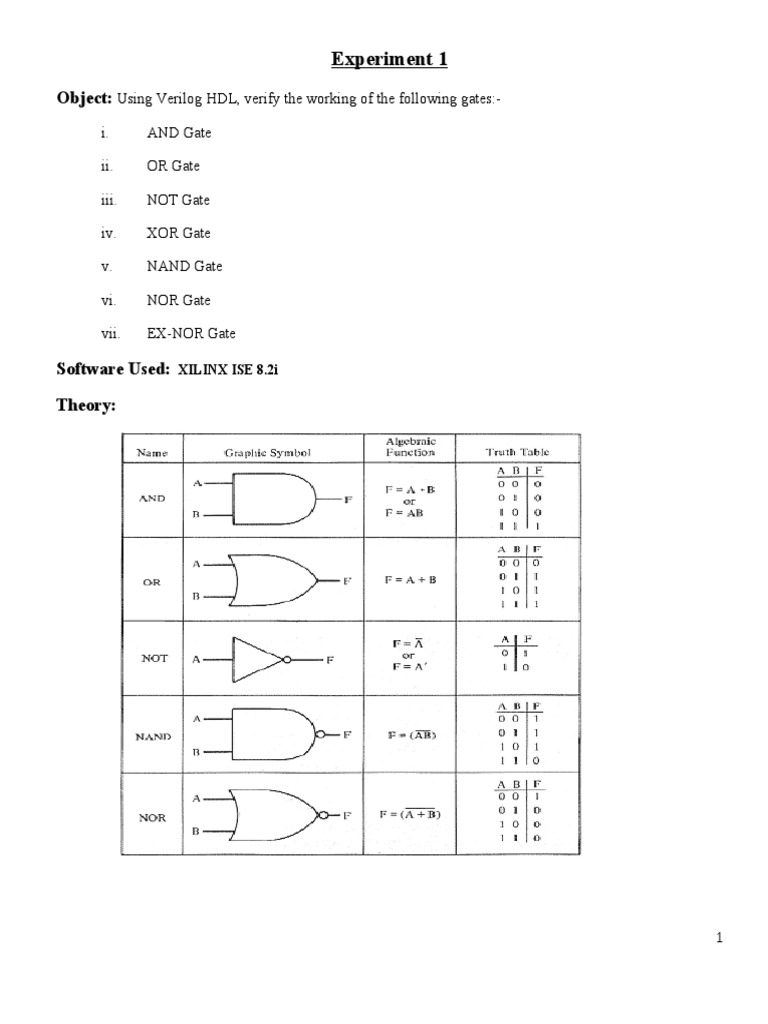

    Experiment 1

    Object: Using Verilog HDL, verify the working of the following gates:i.

    AND Gate

    ii.

    OR Gate

    iii.

    NOT Gate

    iv.

    XOR Gate

    v.

    NAND Gate

    vi.

    NOR Gate

    vii.

    EX-NOR Gate

    Software Used:

    XILINX ISE 8.2i

    Theory:

    Verilog Code :module a(input_1, input_2, and_out, or_out, not_out, nand_out, nor_out, xor_out, xnor_out);
    input input_1;
    input input_2;
    output and_out;
    output or_out;
    output not_out;
    output nand_out;
    output nor_out;
    output xor_out;
    output xnor_out;
    not(not_out,input_1);
    and(and_out,input_1,input_2);
    or(or_out,input_1,input_2);
    nand(nand_out,input_1,input_2);
    xor(xor_out,input_1,input_2);
    nor(nor_out,input_1,input_2);
    xnor(xnor_out,input_1,input_2);
    endmodule

    RTL Schematic:2

    Simulation Waveforms:-

    Conclusion: All the gates were designed using Verilog HDL and verified using ISE
    Simulator.
