Software Design

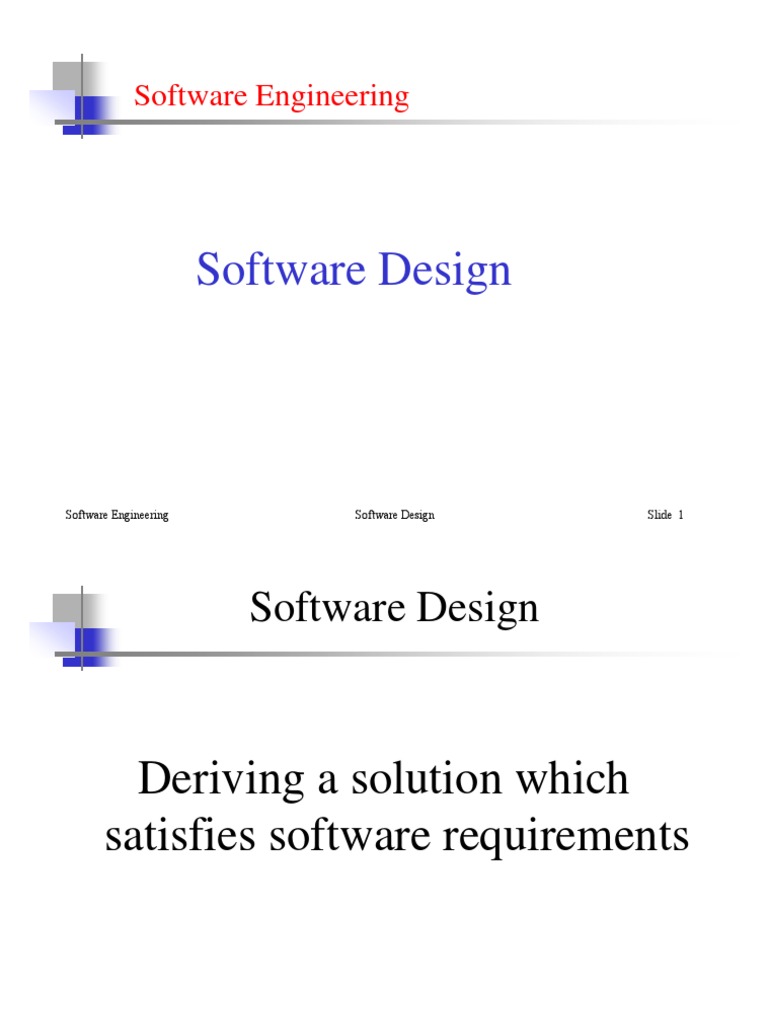

Software Engineering
Software Design
Software Design
Slide 1
Software Design
Deriving a solution which satisfies software requirements
Software Design
Slide 2
Stages of Design
Problem understanding
Look at the problem from different angles to discover the design requirements.
Identify one or more solutions

Evaluate possible solutions and choose the most appropriate depending on the designer's experience and available resources.
Describe solution abstractions

Use graphical, formal or other descriptive notations to describe the components of the design.
Repeat process for each identified abstraction until the design is expressed in primitive terms.
Software Engineering Software Design Slide 3
The Design Process

Any design may be modelled as a directed graph made up of entities with attributes which participate in relationships. The system should be described at several different levels of abstraction. Design takes place in overlapping stages. It is artificial to separate it into distinct phases but some separation is usually necessary.
Phases in the Design Process

Re quir e m e nts spe c if iction a De sign a c vitie ti s Ar c hite c tur al design Abstr a ct spe c if ictio a n I nter fa c e design Com pone nt design Da ta struc tur e design Algorithm design
Sy stem ar c hite c tur e
Sof tw a re spe c if iction a
I nter fa c e spe c if ic tion a
Com pone nt spe c if iction a De sign pr oduc ts
Da ta struc tur e spe c if iction a
Algorithm spe c if ic tion a
Software Design
Slide 5
Design Phases
Architectural design: Identify sub-systems. Abstract specification: Specify sub-systems. Interface design: Describe sub-system interfaces. Component design: Decompose sub-systems into components. Data structure design: Design data structures to hold problem data. Algorithm design: Design algorithms for problem functions.
Design
Computer systems are not monolithic: they are usually composed of multiple, interacting modules. Modularity has long been seen as a key to cheap, high quality software. The goal of system design is to decode:
What the modules are; What the modules should be; How the modules interact with one-another
Software Design
Slide 7
Modular programming
In the early days, modular programming was taken to mean constructing programs out of small pieces: subroutines But modularity cannot bring benefits unless the modules are
autonomous, coherent and robust
Procedural Abstraction
The most obvious design methods involve functional decomposition. This leads to programs in which procedures represent distinct logical functions in a program. Examples of such functions:
Display menu Get user option
This is called procedural abstraction

Programs as Functions
Another view is programs as functions:
input output x f f ( x)
the program is viewed as a function from a set I of legal inputs to a set O of outputs. There are programming languages (ML, Miranda, LISP) that directly support this view of programming
Well-suited to certain application domains - e.g., compilers
Less well-suited to distributed, nonterminating systems - e.g., process control systems, operating systems like WinNT, ATM machines
Software Design Slide 10
Object-oriented design
The system is viewed as a collection of interacting objects.
The system state is decentralized and each object manages its own state. Objects may be instances of an object class and communicate by exchanging methods.
Software Design
Slide 11
Five Criteria for Design Methods

We can identify five criteria to help evaluate modular design methods:
Modular decomposability; Modular composability; Modular understandability; Modular continuity; Modular protection.
Software Design
Slide 12
Modular Decomposability
This criterion is met by a design method if the method supports the decomposition of a problem into smaller sub-problems, which can be solved independently. In general method will be repetitive: subproblems will be divided still further Top-down design methods fulfil this criterion; stepwise refinement is an example of such method
Hierarchical Design Structure

System level Sub-system level
Software Design
Slide 14
Top-down Design
In principle, top-down design involves starting at the uppermost components in the hierarchy and working down the hierarchy level by level. In practice, large systems design is never truly top-down. Some branches are designed before others. Designers reuse experience (and sometimes components) during the design process.
Modular Composability
A method satisfies this criterion if it leads to the production of modules that may be freely combined to produce new systems. Composability is directly related to the issue of reusability Note that composability is often at odds with decomposability; top-down design,
for example, tends to produce modules that may not be composed in the way desired
This is because top-down design leads to modules which fulfil a specific function, rather than a general one
Examples
The Numerical Algorithm Group (NAG) libraries contain a wide range of routines for solving problems in linear algebra, differential equations, etc. The Unix shell provides a facility called a pipe, written , whereby
the standard output of one program may be redirected to the standard input of another; this convention favours composability.
Modular Understandability
A design method satisfies this criterion if it encourages the development of modules which are easily understandable.
COUNTER EXAMPLE 1. Take a thousand lines program, containing no procedures; its just a long list of sequential statements. Divide it into twenty blocks, each fifty statements long; make each block a method. COUNTER EXAMPLE 2. Go to statements.
Software Design
Slide 18
Understandability
Related to several component characteristics
Can the component be understood on its own? Are meaningful names used? Is the design well-documented? Are complex algorithms used?
Informally, high complexity means many relationships between different parts of the design.
Modular Continuity
A method satisfies this criterion if it leads to the production of software such that a small change in the problem specification leads to a change in just one (or a small number of ) modules. EXAMPLE. Some projects enforce the rule that no numerical or textual literal should be used in programs: only symbolic constants should be used COUNTER EXAMPLE. Static arrays (as opposed to open arrays) make this criterion harder to satisfy.
Modular Protection
A method satisfied this criterion if it yields architectures in which the effect of an abnormal condition at run-time only effects one (or very few) modules EXAMPLE. Validating input at source prevents errors from propagating throughout the program. COUNTER EXAMPLE. Using int types where subrange or short types are appropriate.
Software Design
Slide 21
Five principles for Good Design

From the discussion above, we can distil five principles that should be adhered to:
Linguistic modular units; Few interfaces; Small interfaces Explicit interfaces; Information hiding.
Software Design
Slide 22
Linguistic Modular Units

A programming language (or design language) should support the principle of linguistic modular units:
Modules must correspond to linguistic units in the language used
EXAMPLE. Java methods and classes COUNTER EXAMPLE. Subroutines in BASIC are called by giving a line number where execution is to proceed from; there is no way of telling, just by looking at a section of code, that it is a subroutine.
Few Interfaces
This principle states that the overall number of communication channels between modules should be as small as possible:
Every module should communicate with as few others as possible.
So, in the system with n modules, there may be n(n 1) a minimum of n-1 and a maximum of 2 links; your system should stay closer to the minimum
Few Interfaces
Software Design
Slide 25
Small Interfaces (Loose Coupling)

This principle states:
If any two modules communicate, they should exchange as little information as possible.
COUNTER EXAMPLE. Declaring all instance variables as public!
Software Design
Slide 26
Coupling
A measure of the strength of the inter-connections between system components. Loose coupling means component changes are unlikely to affect other components.
Shared variables or control information exchange lead to tight coupling. Loose coupling can be achieved by state decentralization (as in objects) and component communication via parameters or message passing.
Tight Coupling
Module A Module C Module B Module D
Shared data area

Loose Coupling
Module A As data
Module B Bs data
Module C Cs data
Module D Ds data
Coupling and Inheritance

Object-oriented systems are loosely coupled because there is no shared state and objects communicate using message passing. However, an object class is coupled to its super-classes. Changes made to the attributes or operations in a super-class propagate to all sub-classes.
Software Design
Slide 30
Reusability
A major obstacle to the production of cheap quality software is the intractability of the reusability issue. Why isnt writing software more like producing hardware? Why do we start from scratch every time, coding similar problems time after time after time? Obstacles:
Economic; Organizational; Psychological.
Stepwise Refinement
The simplest realistic design method, widely used in practice. Not appropriate for large-scale, distributed systems: mainly applicable to the design of methods. Basic idea is:
Start with a high-level spec of what a method is to achieve; Break this down into a small number of problems (usually no more than 10) For each of these problems do the same; Repeat until the sub-problems may be solved immediately.
Explicit Interfaces
If two modules must communicate, they must do it so that we can see it:
If modules A and B communicate, this must be obvious from the text of A or B or both.
Why? If we change a module, we need to see what other modules may be affected by these changes.
Software Design
Slide 33
Information Hiding
This principle states:
All information about a module, (and particularly how the module does what it does) should be private to the module unless it is specifically declared otherwise.
Thus each module should have some interface, which is how the world sees it anything beyond that interface should be hidden. The default Java rule: Make everything private
Cohesion
A measure of how well a component fits together. A component should implement a single logical entity or function. Cohesion is a desirable design component attribute as when a change has to be made, it is localized in a single cohesive component. Various levels of cohesion have been identified.
Cohesion Levels
Coincidental cohesion (weak)
Parts of a component are simply bundled together.
Logical association (weak)

Components which perform similar functions are grouped.
Temporal cohesion (weak)

Components which are activated at the same time are grouped.
Cohesion Levels
Communicational cohesion (medium)
All the elements of a component operate on the same input or produce the same output.
Sequential cohesion (medium)

The output for one part of a component is the input to another part.
Functional cohesion (strong)

Each part of a component is necessary for the execution of a single function.
Object cohesion (strong)

Each operation provides functionality which allows object attributes to be modified or inspected.
Cohesion as a Design Attribute

Not well-defined. Often difficult to classify cohesion. Inheriting attributes from super-classes weakens cohesion.
To understand a component, the super-classes as well as the component class must be examined. Object class browsers assist with this process.
