EAGLE Mechanical Seals

LB150

ROTATING OUTSIDE MOUNT SEAL

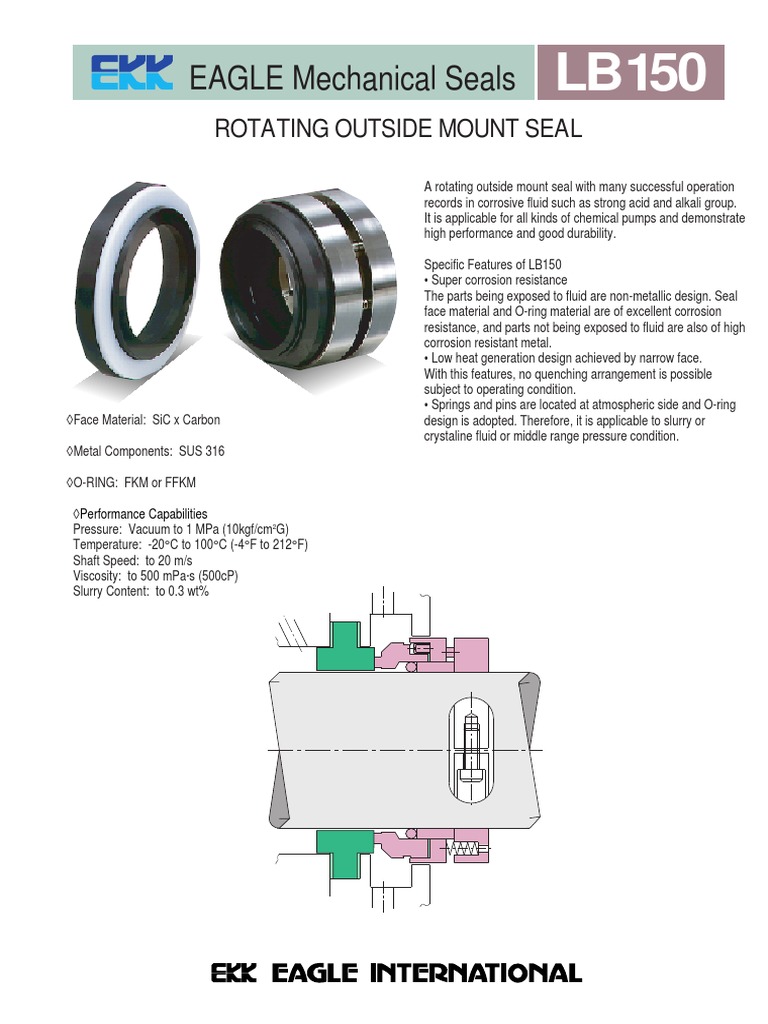

A rotating outside mount seal with many successful operation records in corrosive fluid such as strong acid and alkali group. It is applicable for all kinds of chemical pumps and demonstrate high performance and good durability. Specific Features of LB150 Super corrosion resistance The parts being exposed to fluid are non-metallic design. Seal face material and O-ring material are of excellent corrosion resistance, and parts not being exposed to fluid are also of high corrosion resistant metal. Low heat generation design achieved by narrow face. With this features, no quenching arrangement is possible subject to operating condition. Springs and pins are located at atmospheric side and O-ring design is adopted. Therefore, it is applicable to slurry or crystaline fluid or middle range pressure condition.

Face Material: SiC x Carbon Metal Components: SUS 316 O-RING: FKM or FFKM Performance Capabilities Pressure: Vacuum to 1 MPa (10kgf/cm2G) Temperature: -20C to 100C (-4F to 212F) Shaft Speed: to 20 m/s Viscosity: to 500 mPas (500cP) Slurry Content: to 0.3 wt%

LB150
L0.3

QUENCHING

METRIC SIZES
SIZE 028 035 040 045 050 055 060 065 070 075 080 085 D 28 35 40 45 50 55 60 65 70 75 80 85 D1 57 64 69 74 80 84 90 94 100 106 111 116 D2 48 55 60 65 72 80 86 92 96 101 106 114 D3 61 68 74 79 87 95 101 107 111 116 121 129 L 38.1 38.1 38.1 38.1 45 45 45 45 45 49 49 49 L1 14 14 15 15 18 18 18 21 21 23 23 23 L2 4 4 5 5 6 6 6 7 7 7 7 7 L3 10 10 10 10 12 12 12 14 14 14 14 14 L4 3 3 4 4 5 5 5 6 6 6 6 6

D1ref.

Dh7
