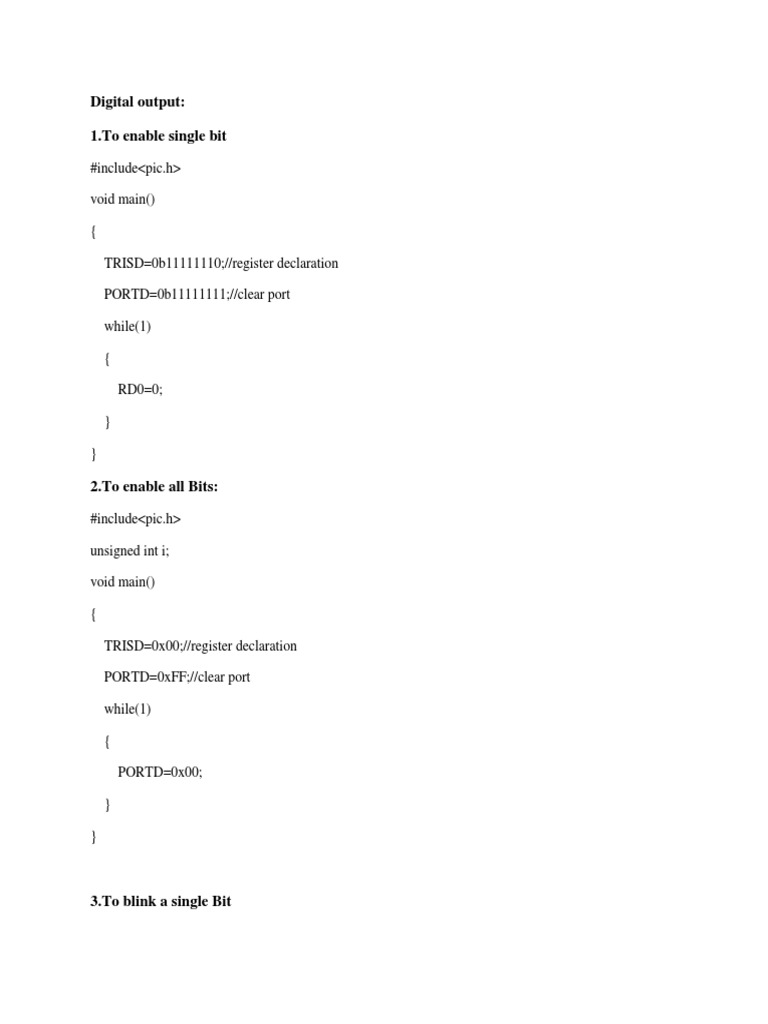

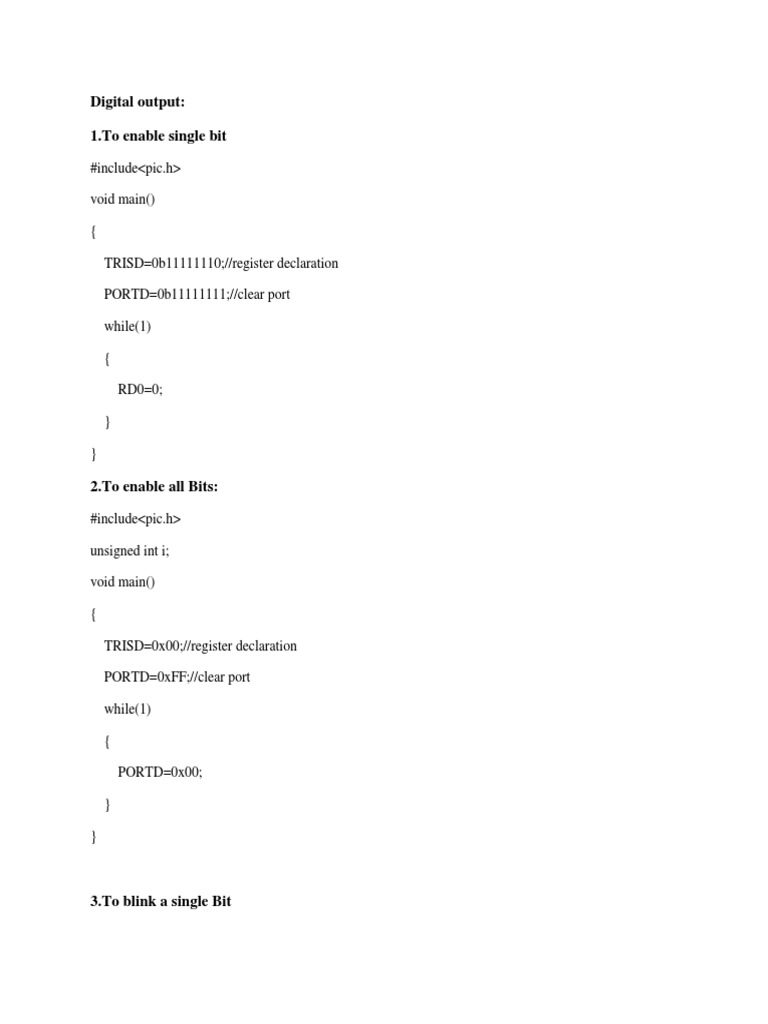

    Digital output:

    1.To enable single bit


    #include<pic.h>
    void main()
    {
    TRISD=0b11111110;//register declaration
    PORTD=0b11111111;//clear port
    while(1)
    {
    RD0=0;
    }
    }

    2.To enable all Bits:


    #include<pic.h>
    unsigned int i;
    void main()
    {
    TRISD=0x00;//register declaration
    PORTD=0xFF;//clear port
    while(1)
    {
    PORTD=0x00;
    }
    }

    3.To blink a single Bit

    #include<pic.h>
    unsigned int i;
    void main()
    {
    TRISD=0b11111110;//register declaration
    PORTD=0xFF;//clear port
    while(1)
    {
    RD0=0;
    for(i=0;i<40000;i++);
    RD0=1;
    for(i=0;i<40000;i++);
    }
    }

    4.Toggle all bits


    #include<pic.h>
    unsigned int i;
    void main()
    {
    TRISD=0x00;
    PORTD=0xFF;
    while(1)
    {
    PORTD=0x55;
    for(i=0;i<60000;i++);
    PORTD=0xAA;

    for(i=0;i<40000;i++);
    }
    }

    5.Binary counting
    #include<pic.h>
    unsigned int i,j;
    void main()
    {
    TRISD=0x00;
    PORTD=0xFF;
    while(1)
    {
    for(i=0;i<=256;i++)
    {
    PORTD=~i;
    for(j=0;j<60000;j++);
    }
    }
    }

    6.Led shift bitwise


    #include<pic.h>
    unsigned int i;
    void main()
    {
    TRISD=0x00;
    PORTD=0xFF;

    while(1)
    {
    PORTD=0b11111110;
    for(i=0;i<40000;i++);
    PORTD=0b11111101;
    for(i=0;i<40000;i++);
    PORTD=0b11111011;
    for(i=0;i<40000;i++);
    PORTD=0b11110111;
    for(i=0;i<40000;i++);
    PORTD=0b11101111;
    for(i=0;i<40000;i++);
    PORTD=0b11011111;
    for(i=0;i<40000;i++);
    PORTD=0b10111111;
    for(i=0;i<40000;i++);
    PORTD=0b01111111;
    for(i=0;i<40000;i++);
    }
    }

    7.Led shift by shift operator


    #include<pic.h>
    unsigned int i,j,a;
    void main()
    {
    TRISD=0x00;

    PORTD=0xFF;
    j=0;
    a=0x01;
    while(j<9)
    {
    PORTD=~a;
    a=a<<1;
    for(i=0;i<60000;i++);
    j++;
    }
    }
