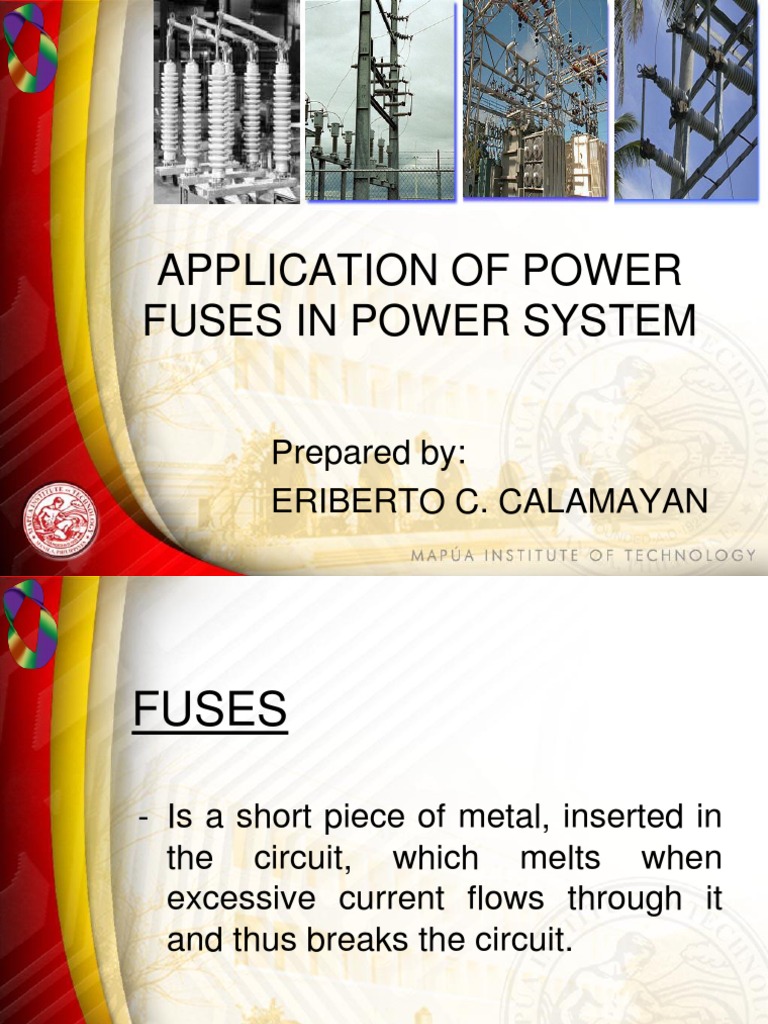

Prepared by: ERIBERTO C. CALAMAYAN FUSES - Is a short piece of metal, inserted in the circuit, which melts when excessive current flows through it and thus breaks the circuit. CHARACTERISTICS OF FUSE ELEMENT 1. Low melting point e,g. tin, lead. 2. High conductivity e,g. silver, copper. 3. Free from deterioration due to oxidation e,g. silver. 4. Low cost e,g. lead, tine copper. FUSE ELEMENT MATERIALS - Materials used for fuse element are lead, tin, copper, zinc and silver. >> For small current up to 10 A, tin and lead used. >>For larger currents, copper or silver is employed. TYPES OF FUSES A. Low Voltage Fuses B. High Voltage Fuses A. LOW VOLTAGE FUSES 1. Semi-enclosed rewirable fuse.
- rewirable fuse (also known as kit-kat type) is used where low values of fault current are to be interrupted. Cont.. Low voltage fuses 2. High-Rupturing Capacity (H.R.C) Cartridge fuse. - The primary objection of low and uncertain breaking capacity of semi- enclosed rewirable focuses is overcome in H.R.C. cartridge fuse. Cont.. Low voltage fuses 3. H.R.C. fuse with tripping device - H.R.C. cartridge fuse is provided with a tripping device. When the fuse blows out under fault conditions, the tripping device cause to circuit breaker to operate. B. HIGH VOLTAGE FUSES 1. Cartridge type.
- this is similar in general construction to the low voltage cartridge type except that special design features are incorporated. Some designs employ fuse elements wound in the form of helix so as to avoid corona effects at higher voltage. Cont.. high voltage fuses 2. Liquid Type.
- This fuses are filled with carbon tetrachloride and have the widest range of application to high voltage systems. Cont.. high voltage fuses 3. Metal Clad Fuses.
- Metal clad oil-immersed fuses have been developed with the object of providing a substitute for the oil circuit breaker. Such fuses can be used for very high voltage circuits and operate most satisfactorily under-circuit conditions approaching their rated capacity.
