ABB | BU Motors and Generators | HV induction motors, technical catalog for IEC motors EN 09-2011 7

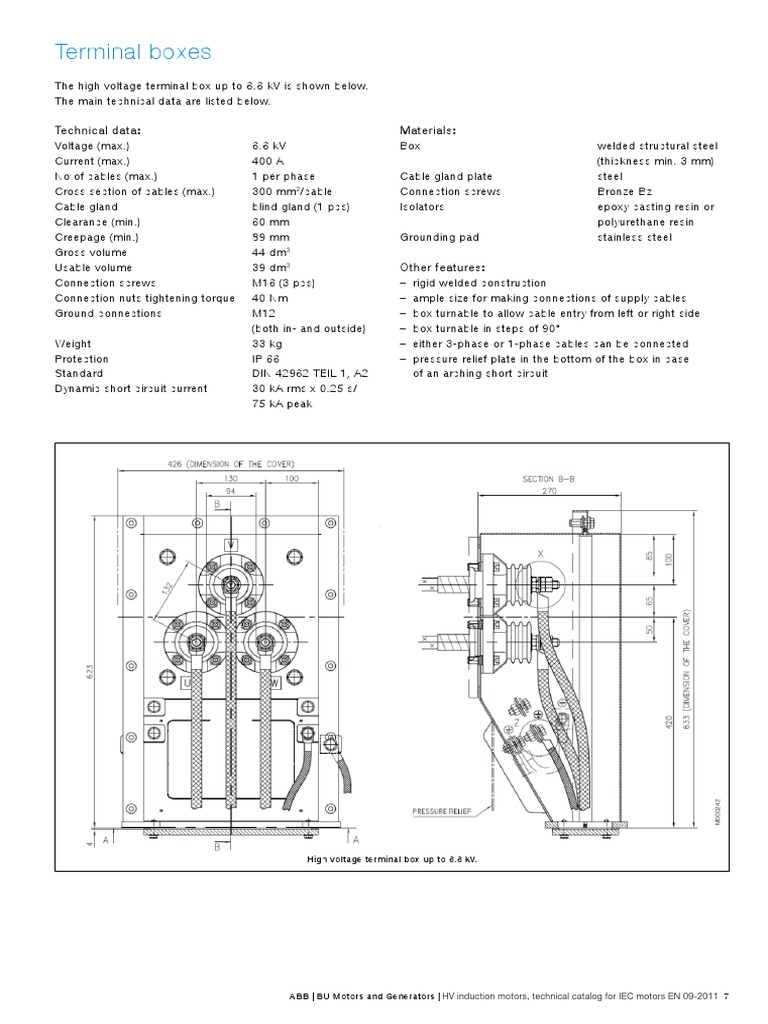

The high voltage terminal box up to 6.6 kV is shown below.
The main technical data are listed below. Technical data: Voltage (max.) 6.6 kV Current (max.) 400 A No of cables (max.) 1 per phase Cross section of cables (max.) 300 mm 2 /cable Cable gland blind gland (1 pcs) Clearance (min.) 60 mm Creepage (min.) 89 mm Gross volume 44 dm 3
Usable volume 39 dm 3 Connection screws M16 (3 pcs) Connection nuts tightening torque 40 Nm Ground connections M12 (both in- and outside) Weight 33 kg Protection IP 66 Standard DIN 42962 TEIL 1, A2 Dynamic short circuit current 30 kA rms x 0.25 s/ 75 kA peak Terminal boxes Materials: Box welded structural steel (thickness min. 3 mm) Cable gland plate steel Connection screws Bronze Bz Isolators epoxy casting resin or polyurethane resin Grounding pad stainless steel Other features: rigid welded construction ample size for making connections of supply cables box turnable to allow cable entry from left or right side box turnable in steps of 90 either 3-phase or 1-phase cables can be connected pressure relief plate in the bottom of the box in case of an arching short circuit High voltage terminal box up to 6.6 kV. M 0 0 0 2 4 2
