This document provides a color key for schematic diagrams showing hydraulic and pneumatic systems. It identifies different colors used to represent high pressure oil, reduced pressure oil, lubricating oil, pneumatic pressure, air, moving components, seals, and scavenge or hydraulic voids at different pressure levels.
This document provides a color key for schematic diagrams showing hydraulic and pneumatic systems. It identifies different colors used to represent high pressure oil, reduced pressure oil, lubricating oil, pneumatic pressure, air, moving components, seals, and scavenge or hydraulic voids at different pressure levels.
This document provides a color key for schematic diagrams showing hydraulic and pneumatic systems. It identifies different colors used to represent high pressure oil, reduced pressure oil, lubricating oil, pneumatic pressure, air, moving components, seals, and scavenge or hydraulic voids at different pressure levels.

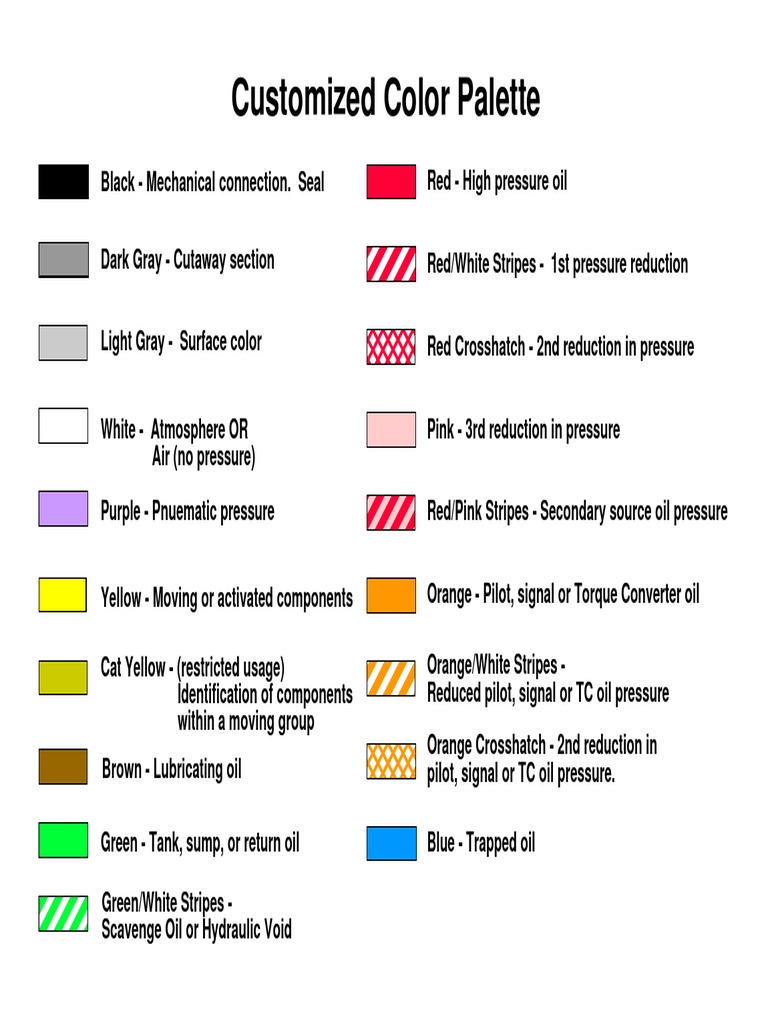

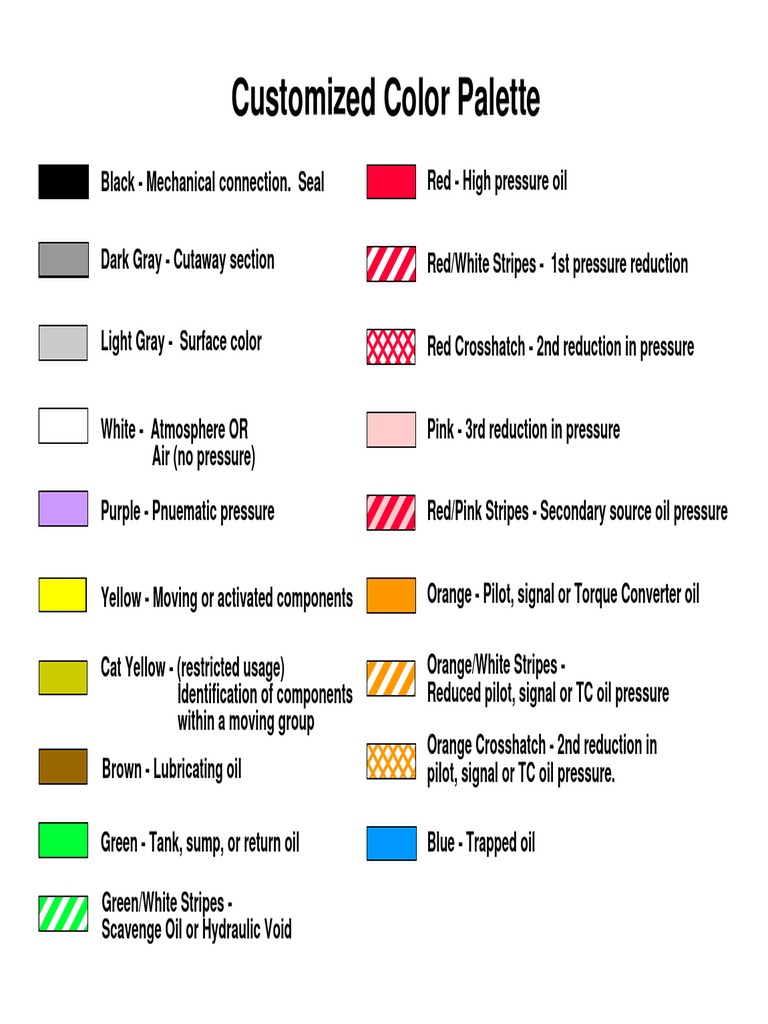

Red - High pressure oil Red/White Stripes - 1st pressure reduction Red Crosshatch - 2nd reduction in pressure Pink - 3rd reduction in pressure Red/Pink Stripes - Secondary source oil pressure Orange - Pilot, signal or Torque Converter oil Orange/White Stripes - Reduced pilot, signal or TC oil pressure Green - Tank, sump, or return oil Blue - Trapped oil Brown - Lubricating oil Purple - Pnuematic pressure Orange Crosshatch - 2nd reduction in pilot, signal or TC oil pressure. White - Atmosphere OR Air (no pressure) Yellow - Moving or activated components Cat Yellow - (restricted usage) Identification of components within a moving group Customized Color Palette Black - Mechanical connection. Seal Green/White Stripes - Scavenge Oil or Hydraulic Void
