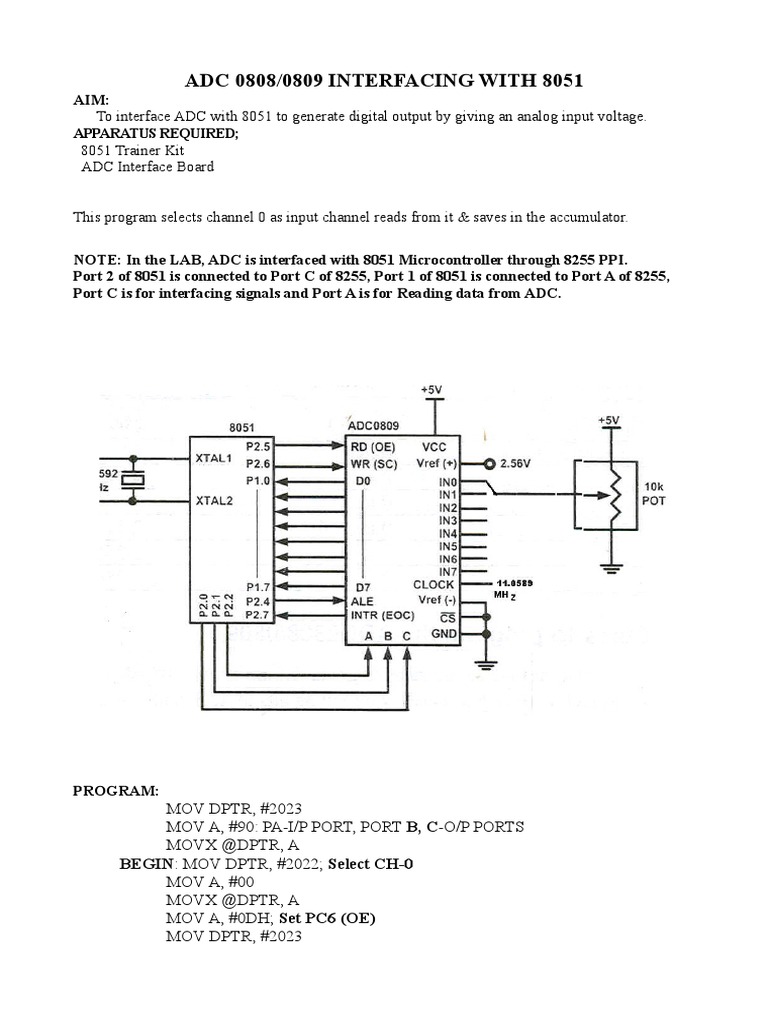

ADC 0808/0809 INTERFACING WITH 8051

AIM:
To interface ADC with 8051 to generate digital output by giving an analog input voltage.
APPARATUS REQUIRED;
8051 Trainer Kit
ADC Interface Board
This program selects channel 0 as input channel reads from it & saves in the accumulator.
NOTE: In the LAB, ADC is interfaced with 8051 Microcontroller through 8255 PPI.
Port 2 of 8051 is connected to Port C of 8255, Port 1 of 8051 is connected to Port A of 8255,
Port C is for interfacing signals and Port A is for Reading data from ADC.

PROGRAM:

MOV DPTR, #2023

MOV A, #90: PA-I/P PORT, PORT B, C-O/P PORTS
MOVX @DPTR, A
BEGIN: MOV DPTR, #2022; Select CH-0
MOV A, #00
MOVX @DPTR, A
MOV A, #0DH; Set PC6 (OE)
MOV DPTR, #2023

MOVX @DPTR, A
MOV A, #0FH; SET SOC
MOVX @DPTR, A
LCALL DELAY
MOV A, #0EH
MOVX @DPTR, A
MOV A, #0CH
MOVX @DPTR, A
MOV DPTR, #2020
BACK: MOVX A,@DPTR
JB 0E7, BACK
MOV DPTR, #2020
REP: MOVX A,@DPTR
ANL A, #80H
JNB 0E7, REP
MOV A, #0DH
MOV DPTR, #2023
MOVX @DPTR, A
MOV DPTR, #2020
MOVX A,@DPTR
MOV DPTR, #9000H; Read the digital output from this address
MOVX @DPTR, A
SJMP BEGIN
DELAY: MOV R3, #30H
AGAIN: MOV R4, #FFH
BACK: NOP
NOP
DJNZ R4, BACK
DJNZ R3, AGAIN
RET
