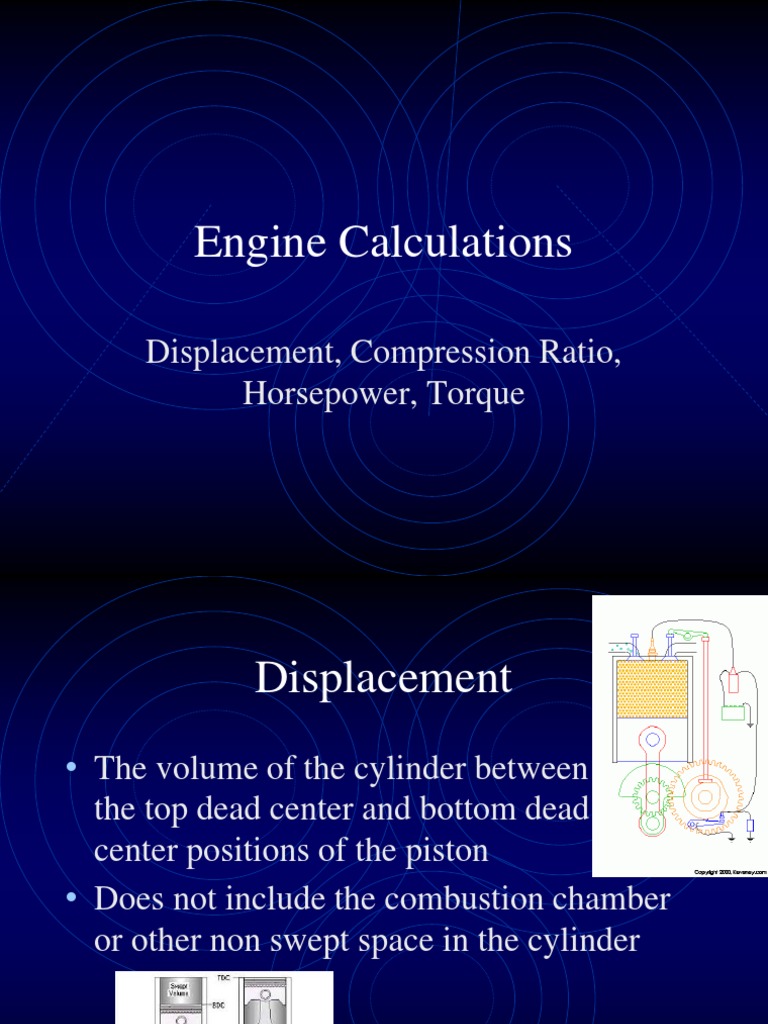

Horsepower, Torque Displacement The volume of the cylinder between the top dead center and bottom dead center positions of the piston Does not include the combustion chamber or other non swept space in the cylinder
Displacement Formula Cylinder displacement CID = ( ) 2 x 3.14 x Stroke Engine displacement Cylinder Displacement x Number of Cylinders Displacement conversions In 3 x 16.4 = cm 3 (ccs) Cm 3 divided by 1000 = Liters Bore 2 Example Bore = 4.030 Stroke = 3.48 8 cylinder engine CID = ( ) 2 x 3.14 x 3.48 CID = (2.015) 2 x 3.14 x 3.48 CID = 4.060 x 3.14 x 3.48 CID = 44.367 in 3 44.367 in 3 x 8 cylinders =354.9 in 3 4.030 2 Example Cont 354.9 in 3 x 16.4 = 5820 cm 3 5820 cm 3 divided by 1000 = 5.8 Liters
Compression Ratio The ratio between the volume of the cylinder at BDC and the volume of the cylinder at TDC
Compression Ratio Formula Compression ratio = V 1 + V 2 +V 3 +V 4 V 2 +V 3 +V 4 V 1 = Cylinder displacement volume V 2 = Deck clearance volume
V 3 = Head gasket volume
V 4 = Combustion chamber volume
Example .010 Deck clearance .041 Compressed head gasket thickness 64 cc combustion chamber (64cc / 16.4 = 3.90 in 3 ) 44.367 in 3 + .127 in 3 + .523 in 3 + 3.90 in 3 .127 in 3 + .523 in 3 + 3.90 in 3 10.75:1 Compression ratio Engine Factors Affecting Compression Ratio Piston design Head design (flat top, dish, dome, valve reliefs) Compression height distance from the centerline of the piston pin to the top of the piston Ring height Deck height distance from the centerline of the main journals to the block deck surface Bore Stroke Combustion chamber size Valve head design (flat, dished, domed) Head gasket thickness (and design) Torque Twisting force Measured in lb/ft
Horsepower Calculated from torque and RPM measurements One horsepower is the power needed to lift 550 pounds one foot in one second Horsepower = Torque x RPM 5252 Horsepower and torque values are always the same at 5252 RPMs
