1

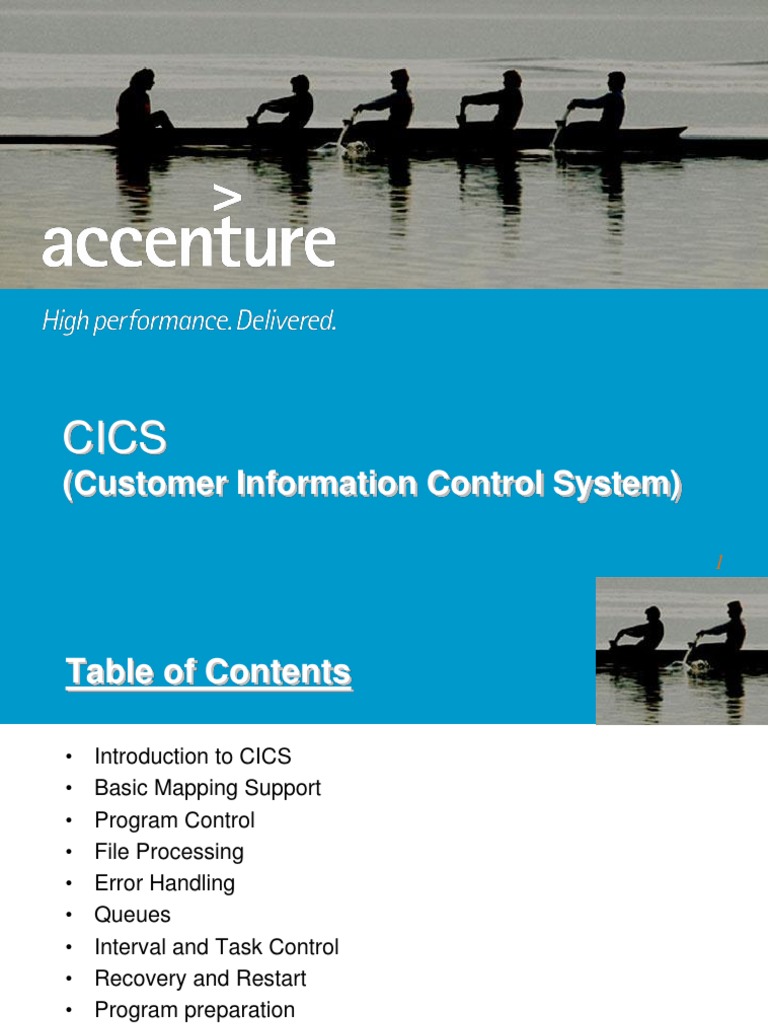

CICS
(Customer Information Control System)
2
Table of Contents
Introduction to CICS
Basic Mapping Support
Program Control
File Processing
Error Handling
Queues
Interval and Task Control
Recovery and Restart
Program preparation
CICS Supplied Transactions
Case Study
3
Introduction to CICS
Customer Information Control System -CICS developed in late
1960s as a DB/DC control system
CICS provides an interface between the Operating System and
application programs
Macro Level CICS - initial version Assembler macro to request
CICS services
Command Level CICS - high level lang.version - commands to
request CICS services - Single command can replace series of
macros
4
Batch & Online : Differences
BATCH SYSTEM
1. Input data is prepared and
given in sequence (file)
2. Processing sequence is
predictable and hence
restarting the process in case
of failure is easy.
3. Programs and files cant be
shared
4. Programs are scheduled
through jobs
5. O/P printed on paper or in
sequential of VSAM or Indexed
files
6. Response time: Could be
scheduled to be Hours or days
ONLINE SYSTEM
1. Data is entered as needed not
in sequence (terminal)
2. Since processing sequence is
unpredictable, special
recovery/restart proc. is
required in case of failure
3. Programs and files can be
shared
4. Transaction can be run at any
time
5. O/p displayed on Terminal
updated files
6. Response Time: Could be in
minutes or second. Usually in
seconds
5
CICS & Operating System
Operating System
CICS
Users
App.
Files &
Database
Enter Code :
6
DB/DC System
Terminals
Central System
Data
Base
CICS System
Environment &
API routines,
and Application
Programs
7
CICS System Services
Data-Communication Functions
Data-Handling Functions
Application Program Services
System Services
Monitoring Functions
8
Task :- A basic unit of work which is scheduled by the
operating system or CICS
Ex -Read from and write to the terminal

Transaction :- An entity which initiates execution of a task. In
CICS, transaction is identified by the transaction identifier
(Trans-id)

Task & Transaction

9
Application Programming
Concepts
Pseudo-Conversational
Multitasking
Multithreading
Quasi-Reentrancy
10
Conversational : A mode of dialogue between program and
terminal based on a combination of sending message and
receiving message within the same task
Since human response is slower than the CPU speed, a
significant amount of resource will be wasted just waiting

Pseudo-Conversational. A mode of dialogue between program
and terminal which appears to the operator as a continuous
conversation but which is actually carried by a series of tasks

Terminal Conversation
11
PROCEDURE DIVISION.
:
FIRST-PROCESS.
EXEC CICS RECEIVE ---- <= TSK1,12345
END-EXEC.
: process
EXEC CICS SEND ----- <= EMP(12345) Details
END-EXEC.
* - - - - - - Program Waits For Response - - - - -
SECOND PROCESS.
EXEC CICS RECEIVE ----- <= User Enters Data
END-EXEC.
: process

Terminal Conversation
Example
12
Transaction TSK1
Program PROG1

PROCEDURE DIVISION.
:
EXEC CICS RECEIVE
END-EXEC.
:
EXEC CICS SEND
END-EXEC.
EXEC CICS RETURN
TRANSID (TSK2)
END-EXEC.

Transaction TSK2
Program PROG2

PROCEDURE DIVISION.
:
EXEC CICS
RECEIVE
END-EXEC.
:
EXEC CICS SEND
END-EXEC.
EXEC CICS RETURN
END-EXEC.

Pseudo-Conversation Example
13
Control Programs (or Management Modules)
Programs that interface between OS and app. pgm
Handle the general functions that are crucial to operation of
CICS
Control Tables
Define the CICS environment
Functionally associated with the management module
Control Blocks (or Areas)
Contain system type information. Eg. Task Control Area
contains information about the task

CICS Components
14
Programs
Program Control PCP
File control FCP
Terminal Control TCP
Task Control KCP
Temporary Storage TSP
Transient Data TDP
Storage Control SCP
Interval Control ICP
Journal Control JCP

Tables

Processing Program
Table PPT
File Control Table FCT
Terminal Control Table TCT
Program Control Table PCT
Temp. Storage Table TST
Destin. Control Table DCT

Mangement Pgms & Ctrl Tables
15
CICS Program Considerations
Considerations:

Must eventually return control to CICS

Cant modify procedure division instructions because CICS
programs may be shared by many tasks

Can modify working storage since a unique copy of working
storage is created for each task
16
CICS Program Restrictions
Restrictions:
No CONFIG. SECTION, I/O SECTION to be specified in the
ENVIRONMENT DIVISION.

FILE SECTION, OPEN, CLOSE, and non-CICS READ & WRITE
statements are not permitted because file management is handled
by CICS.

COBOL commands such as ACCEPT, DISPLAY, EXHIBIT,
TRACE, STOP RUN, GOBACK are avoided. (STOP RUN &
GOBACK are sometimes included in order to eliminate compiler
diagnostic but never executed)
17
Sample CICS Program
IDENTIFICATION DIVISION.
PROGRAM-ID. SAMPLE.
ENVIRONMENT DIVISION.
DATA DIVISION.
WORKING-STORAGE SECTION.
01 WS-INPUT.
05 WS-TRANSID PIC X(4).
05 FILLER PIC X(1).
05 WS-IN-EMP-CD PIC X(4) VALUE ALL
X.

18
Sample Program (Contd..)
01 WS-OUTPUT.
05 FILLER PIC X(16) VALUE EMP CODE : .
05 WS-OUT-EMP-CD PIC X(4).
01 WS-LENGTH PIC S9(4) COMP.
LINKAGE SECTION.
CAN Include DFHCOMMAREA if data needs to be communicated
between two transactions or multiple iterations of the same
transaction.
PROCEDURE DIVISION.
000-MAINLINE.
PERFORM 100-RECV-INPUT.
PERFORM 200-SEND-OUTPUT.
EXEC CICS RETURN END-EXEC.

19
100-RECV-INPUT.
MOVE 9 TO WS-LENGTH.
EXEC CICS RECEIVE
INTO (WS-INPUT) LENGTH (WS-LENGTH)
END-EXEC.
MOVE WS-IN-EMP-CODE TO WS-OUT-EMP-CODE
200-SEND-OUTPUT.
EXEC CICS SEND
FROM (WS-OUTPUT) LENGTH (20)
ERASE
END-EXEC.


Sample Program (Contd..)
20

The CICS translator converts CICS commands into the COBOL
code so that it could be compiled by a Standard Cobol compiler

CICS program with CICS
Commands
CICS Translator

COBOL Statements

CICS Translator
21

When you compile a CICS/VS program the translator will
automatically add many lines of code to your program, which can
be seen in the compiled listing






Translator
22
Basic Mapping Support

23
Topics in BMS
Introduction to BMS
Map and Mapset
Physical and Symbolic Map
Map Definition Macros
Screen Manipulation/Handling
Screen Design Considerations
Interfacing with Terminal using a Map
24
Introduction to BMS
Introductory concepts
In online systems, formatted screens are used. In order to display
formatted screen, a terminal (e.g. 3278) must receive a series of
data stream called Native Mode Data Stream (NMDS) based on the
hardware protocol; this NMDS is a mixture of Buffer Control
Characters (BCCs) and text data. NMDS is designed for a
particular terminal and is thus both device dependent and format
dependent. So if NMDS is used, re-coding is required whenever
there is change in the terminal device or screen format. To remove
this device and format dependency from application program, CICS
provides a facility called Basic Mapping Support (BMS).
25
Removal of device dependent codes from Application Program
Removal of constant information from Application program
(Headers, Titles...)
Construct NMDS - Native Mode Data Stream
Text handling
Terminal Paging & Message routing
Contents of the screen defined thru BMS is called Map.
Map is a program written in assembly language.
BMS macros are available for Map coding.

The BMS Macros are coded in the form of Maps, and Mapsets to
define the screen attributes, screen field positions, and field
characteristics.

Primary Functions of BMS
26
Map and Mapset
Representation of one screen format is called Map (screen
panel).
One or more maps, link edited together, makes up a Mapset
(load module).
Mapset must have a entry in PPT as given below:
DFHPPT TYPE=ENTRY,MAPSET=name
Or DFHPPT TYPE=ENTRY,PROGRAM=name
27
Mapset name has two parts.
Generic name 1- 7 chars. Used in App. Program.
Suffix 1 char. To identify the device type
Multimap Panel
Dynamically constructing a screen panel with multiple maps at
the execution time

Map and Mapset (Contd..)
28
The concepts of map and mapset can be utilized in two type of
cases as given below:

Case 1: A mapset consist of a single map. For e.g.
MAPSET1 MAPNUM1

Case 2: A mapset consists of several maps. For e.g.
MAPSET2 MAPNUM1
MAPNUM2

Map and Mapset (Contd..)
29
Types of MAPS
There are 2 types of MAPS
Physical Map
Physical Map is a map used by CICS (CSECT)
Ensure device independence in the application program
BMS macro coding ==> Assembly==> Link edit ==> Load module ==>
LOADLIB ===> To be used by CICS
Symbolic Map
Ensure device and format independence in the application program
Symbolic Map is a map used by Application Program (DSECT)
BMS macro coding ==> Assembly ==> Symbolic map definition ==>
COPYLIB ==> Copied (COPY) into CICS application program.
30
01 EMPRECI.
02 FILLER PIC X(12).
02 EMPNAL PIC S9(4) COMP.
02 EMPNAF PIC X.
02 FILLER REDEFINES EMPNAF.
03 EMPNAA PIC X.
02 EMPNAI PIC X(21).

01 EMPRECO REDEFINES EMPRECI.
02 FILLER PIC X(12).
02 FILLER PIC X(03).
02 EMPNAO PIC X(21).
Example Symbolic Map
31
Physical & Symbolic Map - Logic Flow
BMS
source
Assembler
Physical MAP
Linkage editor Symbolic MAP
Load module (MVS)
32
Physical Map.
The BMS macros are assembled and link-edited into CICS load
library to create the physical map. The mapset like any other CICS
program is stored in CICS runtime library the PPT(Program
Processing Table). At the program execution time the physical
map is being used by CICS to load the screen image.

In case of input operations, the physical map defines the maximum
length, the starting position for each field to be read and allows
BMS to interpret an input NMDS.

In case of output operations, the physical map defines the starting
position, length, field characteristics and the default data for each
field and allows BMS to construct an output NMDS.
Physical Map
33
The symbolic map is coded using the BMS macro, assembled
separately and catalogued into a copy library. The symbolic map
serves as a DSECT for referencing the Terminal Input/Output Area
(TIOA). The program issues a COBOL COPY statement to include it
in the program.

The symbolic maps represents the actual data structure of the fields
defined in the physical map, and is used by the application program
to send and receive information from the terminal, in the CICS
SEND-MAP & RECEIVE MAP commands.

The symbolic map can be used by the CICS application programs to
dynamically to alter the field attributes, modify screen cursor
position, and highlight , protect , unprotect specific fields on the
screen.
Symbolic Map
34
Map definition Macros
General Format
Column Number
1 16 72
setname operation operands contd.
Example
EMPMAP DFHMSD TYPE=MAP, X
MODE=INOUT, X
LANG=COBOL, X
STORAGE=AUTO, X
TIOAPFX=YES
*
* ANY COMMENTS
35
Explanations:
SETNAME : Name of the mapset. Used in CICS command to
read or write one of the maps in the mapset. It is
the load module name.
OPERATION : Macro identifier. Mapset/Map/Field definition.
OPERANDS : Optional key words (parameters) separated by
comma.
CONTD : Current line can be continued by leaving this
column non-blank (usually X) and the next line
have to be started in 16th column.
Comments : * in column 1 makes the line comment.
Map definition Macros (Contd..)
36
INITIAL VALUES : Always surround initial values by
single quote marks
Escape Chars : and &


Map definition Macros (Contd..)
37
Order of Macros
DFHMSD TYPE=DSECT Mapset
DFHMDI Map
DFHMDF A field
DFHMDF A field
:
DFHMDI Map
DFHMDF A field
DFHMDF A field
:
DFHMSD TYPE=FINAL Mapset
END
38
DFHMSD Macro
The DFHMSD macro is used to define a mapset (TYPE=MAP)
and its characteristics or to end a mapset definition
(TYPE=FINAL). Only one mapset is allowed in one assembly
run. All the maps in a map set get assembled together, and
they're loaded together at execution time.

Example:
TSTMSET DFHMSD TYPE=&SYSPARM, X
MODE=INOUT, X
LANG=COBOL,
X
STORAGE=AUTO, X
TIOAPFX=YES,
X
CNTL=(FREEKB,FRSET,PRINT)
39
Options

TYPE= To define the map type
DSECT For symbolic map
MAP For physical map
&SYSPARM For special assembly procedure
FINAL To indicate the end of a mapset coding

MODE= To indicate input/output operations
IN For an input map only
OUT For an output map only
INOUT For maps involving both input and output.
DFHMSD Macro (Contd..)
40
STORAGE =
AUTO To acquire a separate symbolic map area for
each mapset
BASE To have the same storage base for the symbolic
maps of from more than one mapset

TIOAPFX=
YES To reserve the prefix space (12 bytes) for BMS
commands to access TIOA properly. Required for
the CICS command level.


DFHMSD Macro (Contd..)
41
CNTL= To define the device control requests
FREEKB To unlock the keyboard
FRSET To reset MDT to zero status
ALARM To set an alarm at screen display time
PRINT To indicate the mapset to be sent to the
printer

TERM=type This ensures device independence,
required if other than 3270 terminal is being
used

SUFFIX=nn To specify the user provided suffix number.
This must correspond to the TCT parameter.

DFHMSD Macro (Contd..)
42
DFHMDI Macro
Defines a map and its characteristics
Example
EMPMAP DFHMDI SIZE=(ll,cc), X
LINE=nn, X
COLUMN=mm, X
JUSTIFY=LEFT/RIGHT
Options
SIZE=(ll,cc) To define the size of the map by the line size (ll)
and the column size (cc). Useful when the screen
contains.
LINE Indicates the starting line number of the map.
COLUMN Indicates the starting column number of the map.
JUSTIFY To specify the entire map (map fields) is to be left or
right justified.
43
The DFHMDF macro is used to define a field in a map and its
characteristics. This is the position on the screen where the field
should appear. It's the position relative to the beginning of the
map. Field starts with its attribute byte, so if POS=(1,1) is coded,
then the attribute byte for that field is on line 1 in column 1, and
the actual data starts in column 2. The length of the field (not
counting the attribute byte) is specified. Literals can be specified
within quotes; these character data is for an output field. It is
used to define labels and titles for the screen and keep them
independent of the program.
DFHMDF Macro
44
Sample Screen layout
The above defines the screen layout as given below:





Where

& Is the Attribute character
n Is unprotected numeric
_ Is Cursor


ITEM NUMBER :&nnnnnnnn
45
DFHMDF
Macro For The Above Layout
Define a field and its characteristics
Example
DFHMDF POS(ll,cc), X
INITIAL=Customer No. :, X
ATTRB=ASKIP, X
LENGTH=14
CUSTNO DFHMDF POS=(ll,cc), X
ATTRB=(UNPROT,NUM,FSET,IC), X
JUSTIFY=RIGHT, X
PICIN=9(8), X
PICOUT=9(8), X
LENGTH=8
46
Attribute character
Function:
The attribute character is an invisible 1-byte character, which
precedes a screen field and determines the characteristics of a
field.

ASKIP Autoskip. Data cannot be entered in this field. The cursor
skips to the next field.
PROT Protected field. Data cannot be entered into this field. If data
is entered, it will cause the input-inhibit status.
UNPROT Unprotected field. Data can be entered and this is used
for all input fields.
NUM Numeric field. Only numbers (0 to 9) and special characters
(. and -) are allowed.
47
Attribute character (Contd..)
BRT Bright display of a field (highlight).

NORM Normal display.

DRK Dark display.

IC Insert cursor. The cursor will be positioned in this field. In
case, IC is specified more than once, the cursor is placed in
the last field.

FSET Field set. MDT is set on so that the field data is to be sent
from the terminal to the host computer regardless of
whether the field is actually modified by the user.

48
Modified Data Tag
Function:
Modified Data Tag (MDT) is a one bit of the attribute character.
If it is off (0), it indicates that the terminal operator has not
modified the field. If it is on (1), it indicates that the operator has
modified this field. Only when MDT is on, the data of the field
will be sent by the terminal hardware to the host computer. An
effective use of MDT drastically reduces the amount of data
traffic in the communication line and thus improves
performance.

Three ways of setting and resetting the MDT.
1. Terminal user modifies a field on the screen, it is
automatically set to 1 (on) by the terminal hardware.

49
Modified Data Tag (Contd..)
2. If CNTL=FRSET is specified in the DFHMSD or DFHMDI
macro, when the mapset or the map is sent to the terminal,
MDT will be reset to 0 (off) i.e. not modified for all the
fields of the mapset or the map.

3. If FSET is specified in the ATTRB parameter of the
DFHMDF macro for a field, when the map is sent to the
terminal, MDT will be set to 1. (on i.e. modified) for the
field regardless of whether the field has been modified by
the terminal user.

50
Skipper Technique
Unlabelled 1-byte field with the autoskip attribute
DFHMDF POS(ll,cc),ATTRB=ASKIP,LENGTH=1
To skip the cursor to the next unprotected field after one
unprotected field.
Screen Layout :
&xxxxx&$ &xx
where
$ Skipper field
& Attribute byte
X Unprotected field
51
Stopper Technique
Unlabelled 1-byte field with the protect attribute
DFHMDF POS(ll,cc),ATTRB=PROT,LENGTH=1
To stop the cursor in order to prevent erroneous field overflow by
terminal user.
Screen Layout :
&xxxxx&$#&$
where
# Stopper field
52
Format Of the Symbolic Map
Format of Symbolic Map
Once the symbolic map is assembled and is placed in the COPY
library, the COBOL COPY statement can be used to include it in
the application program.

The symbolic map starts with the 01 level definition of the map
name specified in the DFHMDI macro with the suffix I for the
input map and the suffix O for the output map.

Next is the definition of FILLER PIC X(12), which is the TIOA
prefix created by the TIOAPFX=YES of the DFHMSD macro; this
is required by the BMS under the CICS command level.
53
Format Of the Symbolic Map
(Contd..)
For each field name (1 to 7 characters) specified in the DFHMDF
macro, BMS creates three fields for inputs and three fields for
outputs, by placing one character suffix to the original field name.
The meaning of these fields are given below:

Name + L: The half-word binary (PIC S9(4) COMP)
field. For the input field, the actual number of characters typed
in the field will be placed by the BMS when the map is
received. For the output field, this is used for the dynamic
cursor positioning.
54
Format Of the Symbolic Map
(Contd..)

Name + F: Flag Byte. For the input field, it will be X80
if the field has been modified but no data is sent (i.e. the field
has been cleared). Otherwise this field is X00.

Name + A: The Attribute byte for both input and output
fields.

Name + I: The input data field. X00 will be placed if
no data is entered. Note that space X40 is data. The
application program should differentiate X00 from space
(X40).

Name + O: The output data field.
55
Example Of Symbolic Map
01 EMPRECI.
02 FILLER PIC X(12).
02 EMPNAL PIC S9(4) COMP.
02 EMPNAF PIC X.
02 FILLER REDEFINES EMPNAF.
03 EMPNAA PIC X.
02 EMPNAI PIC X(21).

01 EMPRECO REDEFINES EMPRECI.
02 FILLER PIC X(12).
02 FILLER PIC X(03).
02 EMPNAO PIC X(21).
56
Cursor Positioning Techniques
CICS provides multiple ways of to specify where to position the
cursor on the screen. The cursor positioning is important to
prompt an user of an entry he has to make, or to point to an error
which has occurred during editing the user entries.

Static positioning (Achieved thru Map definition
ATTRIB=IC).

Example :
DFHMDF
POS=(5,8),ATTRB=(UNPROT,FSET,IC),LENGTH=10

57
Cursor Positioning Techniques
(Contd..)
Dynamic/Symbolic Positioning.

The cursor is placed dynamically through an
application program by moving -1 to the symbolic map
field-length field (i.e. fieldname + L) for the field where
the cursor is to be placed. The SEND MAP command
must be issued with the CURSOR option (without
value). Also, the mapset should be coded with
MODE=INOUT in the DFHMSD macro. This approach
is very useful when the cursor is to be placed at the
field where data entry error has been detected by the
data edit routine.

58
Cursor Positioning Techniques
(Contd..)
Example Of Dynamic Cursor Positioning.

WORKING-STORAGE SECTION.
:
COPY MAPSET1
01 MAPSET1I
05 FILLER PIC X(6).
05 FIELD1L PIC X(5).
05 FIELD1F PIC X.
05 FIELD1I PIC X.


59
Cursor Positioning Techniques
(Contd..)
PROCEDURE DIVISION.
: MOVE 1 TO FIELDL.
EXEC CICS SEND MAP(MAP1)
MAPSET(MAPSET1)
CURSOR
ERASE
END-EXEC.
The cursor will be placed at FIELD1 field of the map during
execution.

60
Cursor Positioning Techniques
(Contd..)
Dynamic/Relative Positioning (application program)

The cursor is placed dynamically through an application program
using the CURSOR(data-value) option in the SEND MAP
command with the value of the relative position (starting from
zero) of the terminal. At the completion of the SEND MAP
command, the map will be displayed with the cursor placed at
the specified position, overriding the static cursor position
defined at the map definition time.


61
Cursor Positioning Techniques
(Contd..)
Example EXEC CICS SEND
MAP(MAP1)
MAPSET(MAPSET1)
CURSOR(100)
ERASE
END-EXEC.

The cursor will be placed at FIELD1 field of the map MAP1
during execution.

62
Interfacing with a Terminal
using a Map
The BMS maps are used in the application programs for the
actual terminal input/output operation. These operations are
performed by a set of CICS commands for BMS.
The following are the three basic functions performed by CICS
commands:
1. Map Sending function using the data in the symbolic map,
BMS prepares the output NMDS, the corresponding physical
map, and sends to the terminal.
2. Map Receiving Function using the input NDMS from the
terminal, BMS prepares data in the symbolic map through the
corresponding physical map.
3. Text Handling Function BMS prepares text without using a
map and sends to the terminal.
63
Interfacing with a Terminal
using a Map (Contd..)
Flow of Information from 3270 Terminal and the Application Program.

Application
Program
Send Map
Command

Symbolic
Map
BMS
Physical
Map
BMS
Symbolic
Map



Application
Program
Receive Map
Command


Output
NDMS
Input
NDMS
Terminal
Data
Entry
Terminal
64
Interfacing with a Terminal
using a Map (Contd..)
The following are the available commands:

RECEIVE MAP : To receive a map
SEND MAP : To send a map
SEND CONTROL : To send a control function to the
terminal
SEND TEXT : To send a text
SEND PAGE : To send the accumulated text or
maps as a logical message
65
Receive Map Command
RECEIVE MAP Command is used to receive input from a terminal.
At the completion of the command, the symbolic map will contain
valid data from the terminal in the following three fields as per each
field defined by the DFHMDF macro:

Field name + L : The length field, which contains the actual
number of characters, typed in the screen
field.
Field name + F : The Flag Byte which is normally X00. It will
be X80 if the field has been modified but
cleared.
Field name + I : The actual input data field. X00 will be placed
if no data is entered.

66
Receive Map Command
(Contd..)

Syntax: EXEC CICS RECEIVE
MAP (MAPNAME)
MAPSET(MAPSETNAME)
[ SET(POINTER)|
INTO(DATANAME) ]
[ LENGTH(MSG-LEN)]
[ HANDLE | NOHANDLE ]
[ RESP() ]
END-EXEC.

Conditions: INVREQ, MAPFAIL
67
Receive Map Command
(Contd..)
MAP specified the name of the MAP defined thru DFHMDI
command , which describes the screen details.

MAPSET specified the name of the MAPSET defined thru DFHMSD
command which includes the MAP.

INTO is used to specify the area in the working storage section to
which the data from the terminal is to be placed.

SET is used when the address pointer is to be set to the address of
the symbolic map (by CICS) so that the application program can
directly refer to the record without moving the record content into the
working storage area defined in the program.

68
Receive Map Command
(Contd..)
RESP will be used by CICS to place a response code at a
completion of the command.

HANDLE is used to transfer control to the procedure label
specified if the exceptional condition specified occurs.

NOHANDLE will cause no action to be taken for any exceptional
condition occurring during execution of the CICS command.

Conditions : INVMPSZ , INVREQR , LENGERR, MAPFAIL
MAPFAIL is set when the data being mapped has a length of
zero. It occurs when the following keys are pressed in response
to the RECEIVE MAP command: CLEAR or Attention Keys &
ENTER or PF keys without entering data.
69
SEND MAP Command
The SEND MAP command is used to send formatted output to a
terminal. Before issuing this command, the application program must
prepare the data in the symbolic map of the map to be sent, which has
the following three fields per each field defined by the DFHMDF
macro:

Name + L: The length field, for which the application program need
not prepare except when used for the dynamic cursor positioning.

Name + A: The Attribute byte for output fields. Application program
will use it for dynamic cursor positioning.

Name + O: The actual output data field, where the application
program places the data.
70
SEND MAP Command (Contd..)
EXEC CICS SEND MAP(MAP1)
MAPSET(MAPSET1) ]
[FROM(DATANAME) ], [DATAONLY] | MAPONLY],
[ CURSOR(VALUE) ],
[ FREEKB ] , [ ERASE ] , [ FRSET ] ,
[ HANDLE | NOHANDLE ] ,
[ RESP (DATANAME) ]
END-EXEC.

Conditions : INVREQ,LENGERR
71
SEND MAP Command (Contd..)
MAP specified the name of the MAP defined thru DFHMDI command
, which describes the screen details.

MAPSET specified the name of the MAPSET defined thru DFHMSD
command which includes the MAP.

MAPONLY is used when no data from your program is to be merged
into the map.

DATAONLY is used when only the data from the program is to be
sent to the screen. The constants in the map are not sent.
72
SEND MAP Command (Contd..)
FROM is used to specify the area in the working storage section
from which the data is to be sent to the terminal.

73
AID KEYS
First time when a transaction is initiated the application program
throws the screen image on the terminal thru SEND MAP command.
Once the screen appears, the AID (Attention Identifier ) Keys are
being used to send the information back from the terminal to CICS to
application program. CICS application program needs to trap the
attention identifier keys and process various functions related to the
AID keys.

Salient Points
PF keys, PA keys, ENTER & CLEAR key

EIBAID in the CICS Executive Interface Block contains, recently
used AID key.

74
AID KEYS (Contd..)
DFHAID CICS System copybook which stores the values of
the EIBAID field for the various AID keys. Flow : User hits
AID key Control goes to CICS To Application program.
EIBAID contains information about the last AID key pressed.
Program compares EIBAID to the DFHAID field and
performs processing logic as per the AID key pressed.

HANDLE AID establish the routines that are to be invoked
when the aid is detected by a RECEIVE MAP command.
Syntax : EXEC CICS HANDLE AID
Option (label)
END-EXEC

Conditions : INVREQ
75
Screen Design Considerations
Functional Screen Design

Screen layout should be similar to source where terminal
users enter data.

Screen id should be placed at the top right corner of a
screen. This helps at problem determination time.

Screen title and field descriptions should be self-explanatory.
Instructions should be concise.
76
Screen Design Considerations
(Contd..)
Large fields can be broken into a number of small fields. E.g.
the field contact information can be split into contact
numbers, email ids and postal address.

In case of repeated fields or group of fields, sequence
numbers helps.

Error messages should be provided. Preferably the last few
lines can be used for the error messages.


77
Screen Design Considerations
User-Friendly Screen Design
Screens should be simple and friendly.
Default values in fields helps in reducing keystrokes by the
users. Also, in case the user forgets to enter a field data,
defaults values are assigned according to the field.
Calculations should be done by program and not by users.
The cursors should be placed in the appropriate fields.
Highlight the error field. Using a different colour or blinking
the error field can achieve this. This enables users to identify
the erroneous field easily.

78
Screen Design Considerations
(Contd..)
Alarm sound can be used for error entries.
Provide suitable help messages for erroneous entries. The
help message should be instructive and kind and should not
be rude.
Provide help on fields and their meanings. Using an attention
key for a help menu, which has details on each field, makes a
screen user-friendly.

Artistic Screen Design
A simple screen layout is always preferred.
Proper use of indentations, spaces, and lines makes a
screen look good.


79
Screen Design Considerations
(Contd..)
Colour can help in improving the screen design; however the
colour used should be in accordance with the norms and
standards followed.

Considerations for Human Errors
Important and useful fields can be placed at the top part of
the screen.
Related fields can be grouped together.
Protected fields should be skipped automatically. This
reduces manual skipping and is preferred.
Skipper/Stopper techniques can be used at appropriate
places.
80
Exercise - 1
81
CICS File Processing
Techniques

82
CICS VS FILE PROCESSING
File handling in CICS is achieved thru a set of file handling
commands. It is essential to know the various file handling
commands for application programming.

File Specific functions to be performed are the following.
Defining a specific file to the CICS system.
Reading a file sequentially
Reading a Key Sequenced file randomly
Reading a file sequentially starting from a specific point.
Reading and Updating a record
Deleting a Record.
Handle any errors that occur during file processing
83
CICS VS FILE PROCESSING

Instead, CICS has a list of all the files it is allowed
To access.

This list is called the FILE CONTROL TABLE
(FCT) and is maintained by the systems
programmers

When CICS/VS is started up. It goes through the
FCT and makes all the files available. When
CICS/VS is closed down it closes all the files.



Application programs do not need
The FD Section, and the Input Output
Section. Application program directly
Refer to filenames in EXEC CICS
Command.

Files do not need to exclusively
defined in Application
programs. The files do not need
to opened and closed in a CICS
application program , before
being used in the program.
84
CICS COBOL V/S COBOL



BATCH COBOL CICS
COBOL
READ DATAFILE INTO REC-AREA EXEC CICS READ
DATASET (FILE IDENTIFIER)
INTO (RECORD NAME)
RID-FLD (record-key)
END-EXEC.
WRITE RECORD-NAME FROM
RECORD-AREA
EXEC CICS WRITE
DATASET (File identifier)
FROM (Record-Name)
RID-FLD (Record- key)
END-EXEC.
Replaced by
Replaced by
AT END MOVE Y TO
EOF-FLAG
85
VSAM
Different types of VSAM Datasets used in CICS are :

ESDS Entry Sequenced Dataset
KSDS Key Sequenced Dataset
RRDS Relative Record Dataset
86
Services Provided By CICS
Basic Operations required for a file are
Adding a Record.
Modifying an Existing Record.
Deleting an Existing Record.
Browsing One or Selected or All Records.

In Addition, CICS Provides
Exclusive Control. (Record Level Locking).
Data Independence.
Journaling.
Opening and closing Files.
88
Defining A File in CICS
Files should be defined in FCT (File Control Table).

FCT will contain all the Information about a file (like dataset
name, access methods, permissible file service request, etc.)

Defining files can be done either by CEDA Transaction or
DFHFCT Macro.
89
Syntax of DFHFCT Macro
DFHFCT TYPE=FILE,ACCMETH=VSAM,
DATASETNAME=NAME,
SERVRQ=(ADD,BROWSE,DELETE,READ,UPDATE),
FILSTAT=(ENABLED,OPENED)
90
File Handling in Programs
Files should not be defined in the Program.
Program should not open or close a File.
Records can be written in any order. A number of records can be
added at a time.
Records can be inserted, updated or deleted.
91
Important Key-Words
Dataset/File :- Name in the FCT.

Into/From (WS-Rec) :- Working-Storage Area defined in the
program where the CICS Puts/Gets the Data.

RIDFLD :- Contains the Record Key.

RESP :- Contains the return code of the executed
command.

LENGTH :- Length of the Record to be Retrieved or Written.
92
Random READ
EXEC CICS READ File(filename)
[SET() | Into()]
RIdfld(Rec-Key)
END-EXEC.

Condition: DISABLED, NOTOPEN, NOTFND, LENGERR,
DUPKEY, IOERR.
93
Example for Random Read
EXEC CICS READ
File( 'INVMAS ')
Into(WS-INVMAS-REC)
Length(WS-INVMAS-LEN)
RIdfld('7135950602') |
RIdfld(WS-INVMAS-KEY)
END-EXEC.
94
Sequential Read
Sequential Read is done by Browse Oper.
Establish the pointer to the First Record to be Read Using
StartBr.
Next and Previous Records can be Read as required Using
ReadNext and ReadPrev.
End the Browse Operation at last.
Browse can be re-positioned.
During Browse Operation, Records cannot be Updated.
95
Syntax for STARTBR

EXEC CICS STARTBR
FILE(filename)
RIDFLD(data-area)
END-EXEC.

Condition : DISABLED, IOERR, NOTFND, NOTOPEN.
96
Reading the Record after
STARTBR
Sequentially the Next or Previous Record can be read by a
READNEXT or READPREV.

The first READNEXT or READPREV will read the Record
where the STARTBR has positioned the File Pointer.

97
Syntax of READNext/READPrev
EXEC CICS READNext | READPrev
FILE(name)
INTO(data-area)|SET(ptr-ref)
RIDFLD(data-area)
END-EXEC.

Condition : DUPKEY, ENDFILE, IOERR, LENGERR, NOTFND.
98
ENDBRowse
ENDBRowse terminates a Previously issued STARTBR.

SYNTAX :
EXEC CICS ENDBR
FILE(filename)
END-EXEC.

Condition: INVREQ
99
RESETBR
Its effect is the same as ENDBR and then giving another
STARTBR.

Syntax :
EXEC CICS RESETBR
FILE(filename)
RIDFLD(data-area)
END-EXEC.

Condition: IOERR, NOTFND.
100
WRITE Command
Adds a new record into the File.
For ESDS, RIDFLD is not used but after write execution, RBA
value is returned and Record will be written at the end of the
File.
For KSDS, RIDFLD should be the Record Key. The record will
be written depending on the Key.
MASSINSERTion must be done in ascending order of the
Key.
101
Syntax for WRITE
EXEC CICS WRITE
FILE(filename)
FROM(data-area)
RIDFLD(data-area)
END-EXEC.

Condition: DISABLED, DUPREC, IOERR, LENGERR,
NOSPACE, NOTOPEN.
102
REWRITE Command

Updates a Record which is Previously Read with UPDATE
Option.

REWRITE automatically UNLOCKs the Record after
execution.
103
Syntax for REWRITE
EXEC CICS REWRITE
FILE(filename)
FROM(data-area)
END-EXEC.

Condition: DUPREC, IOERR, LENGERR, NOSPACE.
104
DELETE Command
Deletes a Record from a dataset.
Record can be deleted in two ways,
1. RIDFLD with the full key in it
2. The record read with READ with UPDATE will be
deleted.
Multiple Records Delete is possible using Generic Option.
105
Syntax of DELETE
EXEC CICS DELETE
FILE(filename)
RIDFLD(data-area) Optional
END-EXEC.

Condition: DISABLED, DUPKEY, IOERR, NOTFND,
NOTOPEN.
106
UNLOCK
To Release the Record which has been locked by READ with
UPDATE Command.

Syntax :
EXEC CICS UNLOCK
FILE(filename)
:
[other options]
END-EXEC.

Condition: DISABLED, IOERR, NOTOPEN.
107
General Exceptions
The following exceptions usually will occur for ALL CICS file
handling commands.

FILENOTFOUND,
NOTAUTH,
SYSIDERR,
INVREQ

108
CICS Error Handling
Procedures

109
Error Handling in CICS
Possible Errors:
Conditions that aren't normal from CICS's point of view but
that are expected in the program.
Conditions caused by user errors and input data errors.
Conditions caused by omissions or errors in the application
code.
Errors caused by mismatches between applications and
CICS tables, generation parameters and JCL
Errors related to hardware or other system conditions beyond
the control of an application program.
110
Error Handling methods
When the error (exceptional conditions) occur, the program can
do any of the following
Take no action & let the program continue - Control returns to
the next inst. following the command that has failed to execute.
A return code is set in EIBRESP and EIBRCODE. This state
occurs cause of NO HANDLE /RESP/IGNORE conditions
Pass control to a specified label - Control goes to a label in the
program defined earlier by a HANDLE CONDITION command.
Rely on the system default action - System will terminate or
suspend the task depends on the exceptional condition occurred
111
Error Handling methods
(Contd..)
HANDLE CONDITION condition[(label)]... 'condition' specifies
the name of the condition, and 'label' specifies the location
within the program to be branched
Remains active while the program is executing or until it
encounters IGNORE/another HANDLE condition.

Syntax :
EXEC CICS HANDLE CONDITION
ERROR(ERRHANDL)
LENGERR(LENGRTN)
END-EXEC
This example handles DUPREC condition separately, all the
other Errors together. LENGERR will be handled by system
112
HANDLE Condition
Example of Handle condition:

EXEC CICS HANDLE CONDITION
NOTFND(RECORD-NOT-FOUND)
END-EXEC
This condition catches the NOTFND condition and transfers control to the
REC-NOT- FOUND paragraph in the program. The error handling logic can be
coded in the REC-NOT-FND paragraph.
113
Alternative to Handle condition

NOHANDLE to specify no action to be taken for any condition or
attention identifier (AID)

RESP(xxx) "xxx" is a user-defined full word binary data area. On
return from the command, it contains a return code. Later, it can
be tested by means of DFHRESP as follows,
If xxx=DFHRESP(NOSPACE) ... or
If xxx=DFHRESP(NORMAL) ...


114
IGNORE Condition
IGNORE CONDITION condition ...
condition specifies the name of the condition that is to be
ignored( no action will be taken)
Syntax :
EXEC CICS IGNORE CONDITION
ITEMERR
LENGERR
END-EXEC
This command will not take any actions if the given two error
occurs and will pass the control to the next instruction
115
Sample program to use Handle
condition
Here is an example of the CICS- COBOL code with proper
handling of errors
Procedure Division.
EXEC CICS HANDLE CONDITION
NOT-FND(REC-NOT-FOUND)
END EXEC.
:
EXEC CICS READ
DATASET(SAMPLE)
RIDFLD(EMP-NO)
INTO (EMP-REC)
END-EXEC
:
GO TO LAST-PART

116
Sample program to use Handle
condition (Contd..)
REC-NOT-FOUND
MOVE NOT-ON-FILE TO NAMEO ( SYMBOLIC MAP
PARAMETER)

LAST-PART.
EXEC CICS SEND
MAP (TC0BM31)
MAPSET(TC0BM30)
FROM (TC0BM310)
DATA-ONLY
END-EXEC

117
PUSH & POP
To suspend all current HANDLE CONDITION, IGNORE
CONDITION, HANDLE AID and HANDLE ABEND commands.

Used for eg. while calling sub-pgms (CALL).

While receiving the control, a sub-program can suspend Handle
commands of the called program using PUSH HANDLE.

While returning the control, it can restore the Handle command
using POP HANDLE.
118
Syntax of Push & Pop
Syntax of Push :

EXEC CICS Push
Handle
END-EXEC.

Syntax of Pop :

EXEC CICS Pop
Handle
END-EXEC.
119
EXEC Interface Block (EIB)
CICS provides some system-related information to each task as
EXEC Interface Block (EIB)
Unique to the CICS command level
EIBAID Attention- Id (1 Byte)
EIBCALEN Length of DFHCOMMAREA (S9(4) comp)
EIBDATE Date when this task started (S9(7) comp-3)
EIBFN Function Code of the last command ( 2
Bytes)
EIBRCODE Response Code of the last command (6
Bytes)
EIBTASKN Task number of this task (S9(7) comp-3)
EIBTIME Time when this task started (S9(7) comp-3)
EIBTRMID Terminal-Id (1 to 4 chars)
EIBTRNID Transaction-Id (1 to 4 chars)
120
Processing Program Table - PPT
DFHPPT TYPE=ENTRY
PROGRAM |MAPSET= name
[PGMLANG= ASM|COBOL|PLI]
[RES= NO|FIX|YES]
:
: other options
:
Eg.
DFHPPT TYPE=ENTRY,PROGRAM=TEST,
PGMLANG=COBOL
121
PCT Entry
DFHPCT TYPE=ENTRY
TRANSID= name
PROGRAM=name
TASKREQ=pf6
RESTART=yes/no ( TRANSEC = 1 to 64)
RSLKEY= 1 to 24 resource level key
SCTYKEY= 1 to 64 security key
:
:
other options
122
PROGRAM CONTROL

123
Program Control Commands
LINK
XCTL
RETURN
LOAD
RELEASE
124
LINK
Used to pass control from one application program to another
The calling program expects control to be returned to it
Data can be passed to the called program using COMMAREA
If the called program is not already in main storage it is loaded
125
LINK Syntax
EXEC CICS LINK
PROGRAM(name)
[COMMAREA(data-area)
[LENGTH(data-value)]]
END-EXEC.

Conditions : PGMIDERR, NOTAUTH, LENGERR
126
XCTL
To transfer control from one application program to another in
the same logical level
The program from which control is transferred is released
Data can be passed to the called program using COMMAREA
If the called program is not already in main storage it is loaded
127
XCTL Syntax
EXEC CICS XCTL
PROGRAM(name)
[COMMAREA(data-area)
[LENGTH(data-value)]]
END-EXEC.

Conditions : PGMIDERR, NOTAUTH, LENGERR
128
RETURN
To return control from one application program to another at a
higher logical level or to CICS

Data can be passed using COMMAREA when returning to CICS
to the next task
129
RETURN Syntax
EXEC CICS RETURN
[TRANSID(name)
[COMMAREA(data-area)
[LENGTH(data-value)]]]
END-EXEC.

Conditions : INVREQ, LENGERR
130
PROG A
LINK
RETURN
CICS
PROG B
XCTL
PROG C
LINK
RETURN
PROG D
XCTL
PROG E
RETURN
Level 0


Level 1




Level 2



Level 3
Application Program
Logic Levels
131
LOAD
To load program/table/map from the CICS DFHRPL concatenation
library into the main storage
Using load reduces system overhead
Syntax :

EXEC CICS Load
Program(name)
[SET (pointer-ref)]
[LENGTH (data-area)]
END-EXEC.
Condition : NOTAUTH, PGMIDER
132
RELEASE
To RELEASE a loaded program/table/map
Syntax :

EXEC CICS RELEASE
PROGRAM(name)
END-EXEC.

Conditions : PGMIDERR, NOTAUTH, INVREQ
133
COMMAREA
Data passed to called program using COMMAREA in LINK
and XCTL
Calling program - Working Storage definition
Called program - Linkage section definition under
DFHCOMMAREA
Called program can alter data and this will automatically
available in calling program after the RETURN command
( need not use COMMAREA option in the return for this
purpose )
EIBCALEN is set when COMMAREA is passed

134
Communication With
Databases

135
CICS - DB2
CICS provides interface to DB2.
DB2 requires CICS Attachment Facility to connect itself to
CICS
CICS programs can issue commands for SQL services in order
to access the DB2 database.

EXEC SQL function
[options]
END-EXEC

136
Operating system
CICS REGION
DB2 REGION
App. Pgm. EXEC SQL..
CICS Attachment Facility
DB2
Database
DB2 Database access by CICS
137
RCT Entry
The CICS-to-DB2 connection is defined by creating and
assembling the resource control table (RCT)
The information in RCT is used to control the interactions
between CICS & DB2 resources
DB2 attachment facility provides a macro (DSNCRCT) to
generate the RCT.
The RCT must be link-edited into a library that is accessible to
MVS
138
DB2 - Precompiler
Source Program (EXEC SQL...
| EXEC CICS...)
DB2 Precompiler
|
CICS command translator
|
Compile By COBOL
|
Linkedit by Linkage editor
|
Load Module
139
QUEUES

140
Transient data Control
Provides application programmer with a queuing facility
Data can be stored/queued for subsequent internal or external
processing
Stored data can be routed to symbolic destinations
TDQs require a DCT entry
Identified by Destination id - 1 to 4 bytes
141
TDQs
Intra-partitioned - association within the same CICS subsystem
Typical uses are
- ATI (Automatic Task Initiation) associated with trigger level
- Message switching
- Broadcasting etc

Extra-partitioned - association external to the CICS subsystem, Can
associate with any sequential device - Tape, DASD, Printer etc
Typical uses are
- Logging data, statistics, transaction error messages
- Create files for subsequent processing by Non-CICS / Batch
programs.
142
TDQs
Operations

Write data to a transient data queue (WRITEQ TD)

Read data from a transient data queue (READQ TD)

Delete an intra partition transient data queue (DELETEQ TD).

143
WRITEQ TD
Syntax :
EXEC CICS WRITEQ TD
QUEUE(name)
FROM(data-area)
[LENGTH(data-value)]
[SYSID(systemname)]
END-EXEC.

Conditions: DISABLED, INVREQ, IOERR, ISCINVREQ,
LENGERR, NOSPACE, NOTAUTH, NOTOPEN, QIDERR,
SYSIDERR
144
READQ TD
Reads the queue destructively - Data record not available in the
queue after the read.
Syntax :
EXEC CICS READQ TD
QUEUE(name)
{INTO(data-area) | SET(ptr-ref) }
[LENGTH(data-value)]
[NOSUSPEND]
END-EXEC.
Conditions : DISABLED, IOERR, INVREQ, ISCINVREQ,
LENGERR, NOTAUTH, NOTOPEN, QBUSY, QIDERR, QZERO,
SYSIDERR
145
DELETEQ TD
Deletes all entries in the queue
Syntax :
EXEC CICS DELETEQ TD
QUEUE(name)
END-EXEC.

Conditions: INVREQ, ISCINVREQ, NOTAUTH,
QIDERR, SYSIDERR
146
Destination Control Table
DCT is to register the information of all TDQs
Destination Control Program (DCP) uses DCT to identify all
TDQs and perform all I/O operations.
DFHDCT is a macro to define intra & extra partition TDQs
TYPE=INTRA/EXTRA
REUSE option specified along with intra partition TDQ tells
whether the space used by TDQ record will be removed &
reused after it has been read.
147
Automatic Task Initiation
Facility through which a CICS transaction can be initiated
automatically
DFHDCT TYPE=INTRA
DESTID=MSGS
TRANSID=MSW1
TRIGLEV=500
When the number of TDQ records reaches 500, the
transaction MSW1 will be initiated automatically
Applications
Message switching & Report printing
148
Temporary Storage Control
Provides application programmer the ability to store and retrieve
data in a TSQ
Application can use the TSQ like a scratch pad
TSQs are
- Created and deleted dynamically
- No CICS table entry required if recovery not required
- Identified by Queue id - 1 to 8 bytes
- Typically a combination of termid/tranid/operid
Each record in TSQ identified by relative position, called the item
number
149
TSQs
Operations
Write and Update data
Read data - Sequential and random
Delete the queue
Access
Across transactions
Across terminals
Storage
Main - Non-recoverable
Auxiliary - Recoverable
TST entry required, VSAM file DFHTEMP
150
TSQs - Typical uses

Data passing among transactions

Terminal Paging

Report printing
151
WRITEQ TS
Syntax :
EXEC CICS WRITEQ TS
QUEUE(name)
FROM(data-area)
[LENGTH(data-value)]
[NUMITEMS(data-area) |
ITEM(data-area) [REWRITE] ]
[MAIN|AUXILIARY]
[NOSUSPEND]
END-EXEC.

Conditions : ITEMERR, LENGERR, QIDERR, NOSPACE, NOTAUTH,
SYSIDERR, IOERR, INVREQ, ISCINVREQ
152
READQ TS
Syntax :
EXEC CICS READQ TS
QUEUE(name)
{INTO(data-area) | SET(ptr-ref) }
LENGTH(data-value)
[NUMITEMS(data-area)]
[ITEM(data-area) | NEXT ]
END-EXEC.

Conditions : ITEMERR, LENGERR, QIDERR, NOTAUTH,
SYSIDERR, IOERR, INVREQ, ISCINVREQ
153
DELETEQ TS
Deletes all entries in the queue
Syntax :
EXEC CICS DELETEQ TS
QUEUE(name)
END-EXEC.

Conditions: INVREQ, ISCINVREQ, NOTAUTH, QIDERR,
SYSIDERR
154
INTERVAL & TASK
CONTROL

155
ASKTIME
Used to obtain current date and time
Syntax :
EXEC CICS ASKTIME[ABSTIME(data-area)]
END-EXEC.

EIBDATE and EIBTIME updated with current date and time
ABSTIME returns value of time in packed decimal format

156
FORMATTIME
Syntax :
EXEC CICS FORMATTIME ABSTIME(data-ref)
[YYDDD(data-area)]
[YYMMDD(data-area)]... etc.
[DATE(data-area) [DATEFORM[(data-area)]]]
[DATESEP[(data-value)]]
[DAYOFMONTH(data-area)]
[MONTHOFYEAR(data-area)]
[YEAR(data-area)].....
[TIME(data-area) [TIMESEP[(data-value)]]]
END-EXEC.

Condition: INVREQ
157
DELAY
Used to DELAY the processing of a task
The issuing task is suspended for a specified interval or Until the
specified time
Syntax :
EXEC CICS DELAY
INTERVAL(hhmmss) | TIME(hhmmss)
END-EXEC

Conditions: EXPIRED, INVREQ
158
START
Used to start a transaction at the specified terminal and at the
specified time or interval
Data can be passed to the new transaction
Syntax :
EXEC CICS START
TRANSID(transid)
[TERMID(termid)
TIME(hhmmss) | INTERVAL(hhmmss) ]
END-EXEC

Conditions : INVREQ, LENGERR,TERMIDERR, TRANSIDERR
159
Other Interval Control
Commands
POST - to request notification when the specified time has
expired.
WAIT EVENT - to wait for an event to occur.
RETRIEVE - Used to retrieve the data passed by the START
CANCEL -Used to cancel the Interval Control requests. eg.
DELAY,POST and START identified by REQID.
SUSPEND - Used to suspend a task
ENQ - to gain exclusive control over a resource
DNQ - to free the exclusive control from the resource gained by
ENQ
160
Recovery & Restart

161
The Need for Recovery/Restart
The possible failures that can occur outside the CICS system are
Communication failures (in online systems)
Data set or database failures
Application or system program failures
Processor failures & Power supply failures.

Recovery/Restart facilities are required to minimize or if possible,
eliminate the damage done to the online system, in case of the
above failures to maintain the system & data integrity.
162
RECOVERY
An attempt to come back to where the CICS system or the
transaction was when the failure occurred

Recoverable Resources
VSAM files
Intrapartition TDQ
TSQ in the auxiliary storage
DATA tables
Resource definitions & System definition files
163
RESTART
To resume the operation of the CICS system or the transaction when
the recovery is completed
164
Facilities for Recovery/Restart
Facilities for CICS Recovery/Restart

Dynamic Transaction Backout
Automatic Transaction Restart
Resource Recovery Using System Log
Resource Recovery Using Journal
System Restart
Extended Recovery Facility (XRF)
165
Dynamic Transaction Backout
(DTB)
When the transaction fails, backing out the changes made by
the transaction while the rest of the CICS system continues
normally is called DTB

CICS automatically writes the before image information of the
record into the dynamic log for the duration of one LUW ,the
work between the two consecutive SYNC points

When an ABEND occurs, CICS automatically recovers all
recoverable resources using the info. in dynamic log (Set
DTB=YES in PCT)
166
LUW & SYNC point
The period between the start of a particular set of changes and
the point at which they are complete is called a logical unit of
work - LUW
The end of a logical unit of work is indicated to CICS by a
synchronization point (sync pt).
Intermediate SYNC pt. can be done by
Syntax :
EXEC CICS SYNCPOINT
[ROLLBACK]
END-EXEC
167
LUWs & SYNC pts
|- - - - - - - - - - - - LUW - - - - - - - - - |
Task A|---------------------------------------------|
SOT EOT-SP

|- - - LUW- - |- - - LUW- - |- - -LUW- - |
Task B|---------------->--------------->--------------|
SOT SP SP EOT-SP

When the failure occurs, changes made within the abending
LUW will be backed out.

168
Automatic Transaction Restart
CICS capability to automatically restart a transaction after all
resources are recovered through DTB

If the transaction requires automatic restart facility, set
RESTART=YES in PCT

Care should be taken in order to restart the task at the point
where DTB completes in the case of intermediate SYNC point
169
Program Preparation


170
Introduction
Preparing a Program to run in CICS Environment.
Defining the Program in the CICS Region.
Executing the Program.
171
LOAD
MODULE
LINK
EDIT
COBOL
COMPILER
CICS
COMPILER
DB2
PRECOMPILER
IF DB2 :
SOURCE
Program preparation
172
Preparing a Program
CICS requires the following steps to prepare a program

Translating the Program.
Assemble or Compile the Translator Output. &
Link the Program.
173
Translation
Translates the EXEC CICS Statements into the Statements
your Language (COBOL) Compiler can Understand.
The Translator gives two outputs, a Program Listing as
SYSPRINT and a Translated Source in SYSPUNCH.
The SYSPUNCH is given as the input to the Program Compiler.
If any Copy Books are used in the Program, there should not be
any CICS Statements in the Copy Book.
174
Compiling or Linking

As the CICS Commands have been translated, the compilation
of the CICS program is the same as language program.

Hence, the compiler options can be specified as required.
175
Defining the Program

The Application should be defined and installed into the PPT.

This can be done either by using CEDA trans or DFHPPT.
176
CICS Supplied Transactions
177
CESN/CESF Transactions
To sign on to CICS system
CESN [USERID=userid] [,PS=password]
[,NEWPS=newpassword][,LANGUAGE=l]
Userid & password values can be from 1-8 chars.
In RACF, the Userid given in CESN is verified.
NEWPS to change the password and LANGUAGE to choose
national language
Sign off by CESF which breaks the connection between the user
and CICS
If the Sign on is done twice for the same userid at the terminal,
the previous operator will be signed off
178
CECI - Command Level
Interpreter
To build and test the effect of EXEC CICS commands
CECI ASSIGN is used to get the current userid,sysid, terminal id,
application id etc..
Before using the maps in programs, it can be tested using CECI
to check how it appears on the screen.
CECI gives the complete command syntax of the specified
command.
CECI READQ TD QUEUE(TESTL001) will read the current
record of the given TDQ
179
CEMT-Master Terminal
Transaction

CEMT provides the following services

Displays the status of CICS & system resources
Alter the status of CICS & system resources
Remove the installed resource definitions
Perform few functions that are not related to resources
180
CEDF-Execution Diagnostic
Facility
To test command level application programs interactively
CEDF [termid/sysid/sessionid] [,ON/,OFF]
Termid - the identifier of the terminal on which the transaction to
be tested is being run
Sessionid - To test/monitor a transaction attached across an
MRO/ISC session
Sysid - To test a transaction across an APPC session
181
CEDF (Contd..)
The points at which EDF interrupts execution of the program and
sends a display to the terminal
At transaction initialization, after EIB has been initialized and
before the app. pgm given control
Start of execution of each CICS command (auguement
values can be changed at this point)
End of execution of each CICS command and before the
Handle condition mechanism is invoked (response code
values can be changed)
At program termination & at normal task termination
When an ABEND occurs & at abnormal task termination.
EIB values can be changed..& CEBR can be invoked
182
CEBR-Temporary Storage
Browse
To browse the contents of CICS temporary storage queues
(TSQ)
CEBR by default will show the queue associated with the current
terminal CEBRL001 which can be overridden to view any other
queue
TERM to browse TSQ for another terminal
QUEUE to make the named queue, current
PUT to copy the current queue contents into TDQ
GET to fetch TDQ for browsing
PURGE erases the contents of the current queue

183
Exercise - 2
184
Thank You
