This document provides instructions for an engineering graphics lab assignment at the Indian Institute of Technology Gandhinagar. The assignment involves practicing lettering skills by writing a pledge in single stroke and block letters. It also involves reproducing technical drawings, including a 3D sketch, multi-view orthographic projections, and labeling of dimensions and part numbers on an engine schematic. Students are to observe dimensioning and numbering conventions and can find more information about the schematic online.
This document provides instructions for an engineering graphics lab assignment at the Indian Institute of Technology Gandhinagar. The assignment involves practicing lettering skills by writing a pledge in single stroke and block letters. It also involves reproducing technical drawings, including a 3D sketch, multi-view orthographic projections, and labeling of dimensions and part numbers on an engine schematic. Students are to observe dimensioning and numbering conventions and can find more information about the schematic online.
This document provides instructions for an engineering graphics lab assignment at the Indian Institute of Technology Gandhinagar. The assignment involves practicing lettering skills by writing a pledge in single stroke and block letters. It also involves reproducing technical drawings, including a 3D sketch, multi-view orthographic projections, and labeling of dimensions and part numbers on an engine schematic. Students are to observe dimensioning and numbering conventions and can find more information about the schematic online.

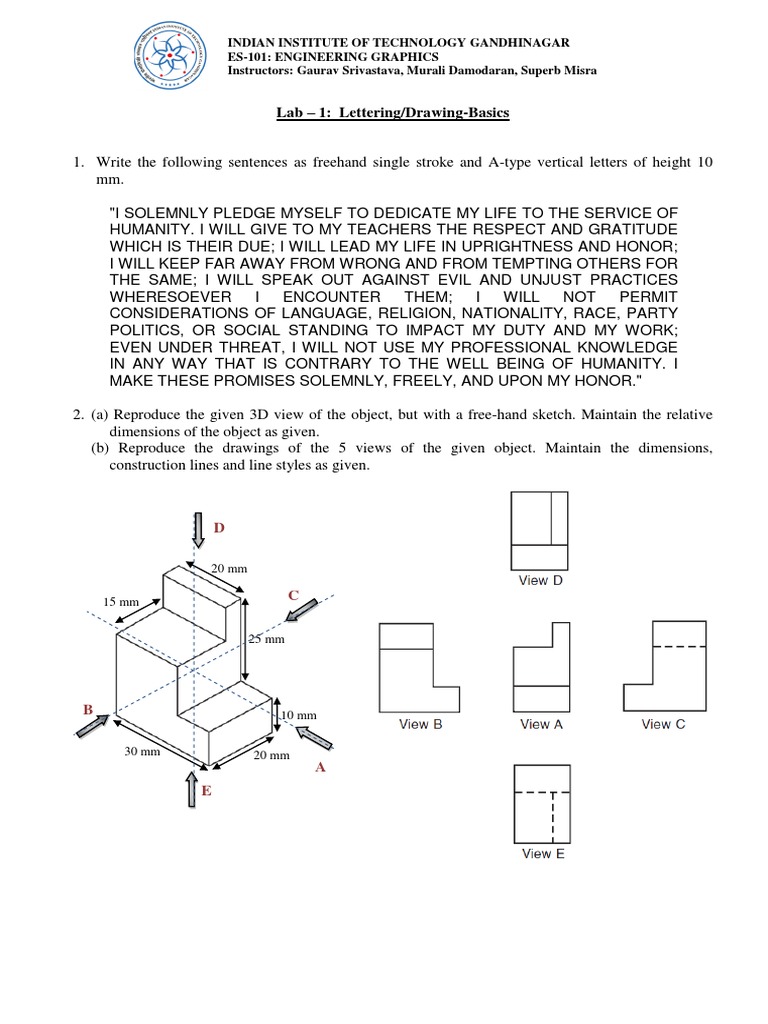

1. Write the following sentences as freehand single stroke and A-type vertical letters of height 10 mm.
"I SOLEMNLY PLEDGE MYSELF TO DEDICATE MY LIFE TO THE SERVICE OF HUMANITY. I WILL GIVE TO MY TEACHERS THE RESPECT AND GRATITUDE WHICH IS THEIR DUE; I WILL LEAD MY LIFE IN UPRIGHTNESS AND HONOR; I WILL KEEP FAR AWAY FROM WRONG AND FROM TEMPTING OTHERS FOR THE SAME; I WILL SPEAK OUT AGAINST EVIL AND UNJUST PRACTICES WHERESOEVER I ENCOUNTER THEM; I WILL NOT PERMIT CONSIDERATIONS OF LANGUAGE, RELIGION, NATIONALITY, RACE, PARTY POLITICS, OR SOCIAL STANDING TO IMPACT MY DUTY AND MY WORK; EVEN UNDER THREAT, I WILL NOT USE MY PROFESSIONAL KNOWLEDGE IN ANY WAY THAT IS CONTRARY TO THE WELL BEING OF HUMANITY. I MAKE THESE PROMISES SOLEMNLY, FREELY, AND UPON MY HONOR."
2. (a) Reproduce the given 3D view of the object, but with a free-hand sketch. Maintain the relative dimensions of the object as given. (b) Reproduce the drawings of the 5 views of the given object. Maintain the dimensions, construction lines and line styles as given.
25 mm 10 mm 20 mm 15 mm 20 mm 30 mm D E C B A
INDIAN INSTITUTE OF TECHNOLOGY GANDHINAGAR ES-101: ENGINEERING GRAPHICS Instructors: Gaurav Srivastava, Murali Damodaran, Superb Misra
3. Study the drawing shown. Reproduce all of the lettering. Certain features to be observed are: This detailed drawing has been taken from: http://modelenginenews.org/cardfile/m42.html Visit this website to gather more information about what this schematic represents. Notice the block where tolerance on dimensions are specified. Notice the specific part numbers (e.g. M5-2000 Piston). These are also part of the vocabulary though, specific to the present context (design of engines). Discuss with your neighbor.
