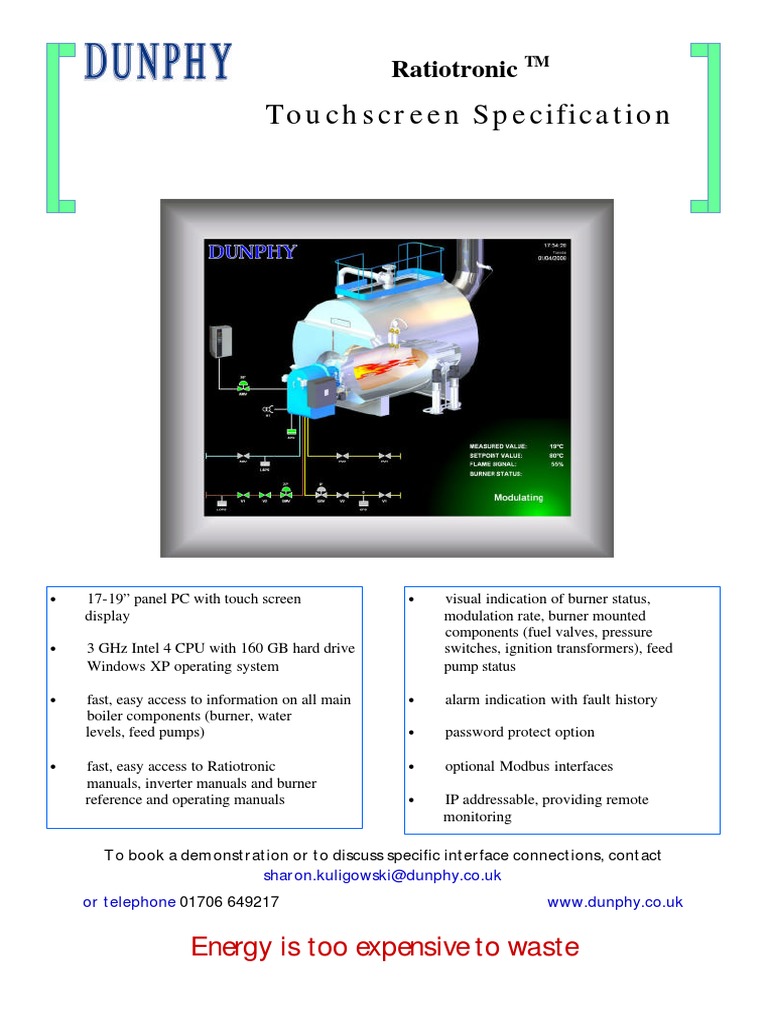

Touchscreen Specification
display
3 GHz Intel 4 CPU with 160 GB hard drive
Windows XP operating system
fast, easy access to information on all main
boiler components (burner, water
levels, feed pumps)
fast, easy access to Ratiotronic
manuals, inverter manuals and burner
reference and operating manuals
Energy is too expensive to waste
To book a demonstration or to discuss specific interface connections, contact
sharon.kuligowski@dunphy.co.uk
or telephone 01706 649217 www.dunphy.co.uk
visual indication of burner status,
modulation rate, burner mounted
components (fuel valves, pressure
switches, ignition transformers), feed
pump status
alarm indication with fault history
password protect option
optional Modbus interfaces
IP addressable, providing remote
monitoring
Ratiotronic
TM
Touchscreen Specification
T O U C H S C R E E N S P E C I F I C A T I O N
Available signals:
A summary of Modbus signals which can be derived from the touch screen (panel PC) is set out below, all of which are also
accessible locally using the touch screen display.
Standard read only:
Drive positions
Boiler measured value (actual boiler
pressure/temperature)
Burner hours run
Burner status (pre-purge, ignition, modulating etc)
Boiler set point value
Fault number (burner related faults)
Profile/fuel selected
Burner modulation rate (1% = low fire,
100% = high fire)
Gas pressure
Flame signal
Fan speed
1)
Oxygen level
Flue temperature
First low water alarm
Second low water alarm
High water alarm
Feed pump running
1)
Feed pump tripped
1)
Feed pump speed
1)
Standard read/write:
Burner on/off
2)
Profile/fuel select
2)
Boiler set point value
2)
Burner modulation rate
(1% = low fire, 100% = high fire)
2)
Oxygen trim enable
2)
Lead boiler select
2)
Boiler sequencing enable
2)
Feed pump on/off
1) 2)
Feed pump 1-2 select
1) 2)
Notes:
1)
function is only available with touch screen.
2)
function is only available when touch screen is set to remote/BMS control. If set to local,the BMS can only access read
only values. This function can be password protected.
Optional extras: (read only)
Additional signals can be quoted 9 but are not in-
cluded as standard). Typical additional signals may
include, but are not limited to:
Boiler TDS level (measured value)
1)
Boiler water level (measured value)
1)
Boiler TDS alarm
1)
Timed blowdown alarm
1)
Additional alarm signals
1)
