This document describes the unit load method for determining deflections in pin-jointed frames. The unit load method uses an energy approach to calculate deflection (Δ) at any node as Δ = P*u*L/A*E, where P is the force in a member due to applied loads, u is the force in a member due to a unit load at the position of desired deflection, L/A is the member's length to area ratio, and E is the modulus of elasticity. An example problem is then presented to show determining the deflections at joints B and D of a pin-jointed truss with applied vertical and horizontal loads at joint B.
This document describes the unit load method for determining deflections in pin-jointed frames. The unit load method uses an energy approach to calculate deflection (Δ) at any node as Δ = P*u*L/A*E, where P is the force in a member due to applied loads, u is the force in a member due to a unit load at the position of desired deflection, L/A is the member's length to area ratio, and E is the modulus of elasticity. An example problem is then presented to show determining the deflections at joints B and D of a pin-jointed truss with applied vertical and horizontal loads at joint B.
This document describes the unit load method for determining deflections in pin-jointed frames. The unit load method uses an energy approach to calculate deflection (Δ) at any node as Δ = P*u*L/A*E, where P is the force in a member due to applied loads, u is the force in a member due to a unit load at the position of desired deflection, L/A is the member's length to area ratio, and E is the modulus of elasticity. An example problem is then presented to show determining the deflections at joints B and D of a pin-jointed truss with applied vertical and horizontal loads at joint B.

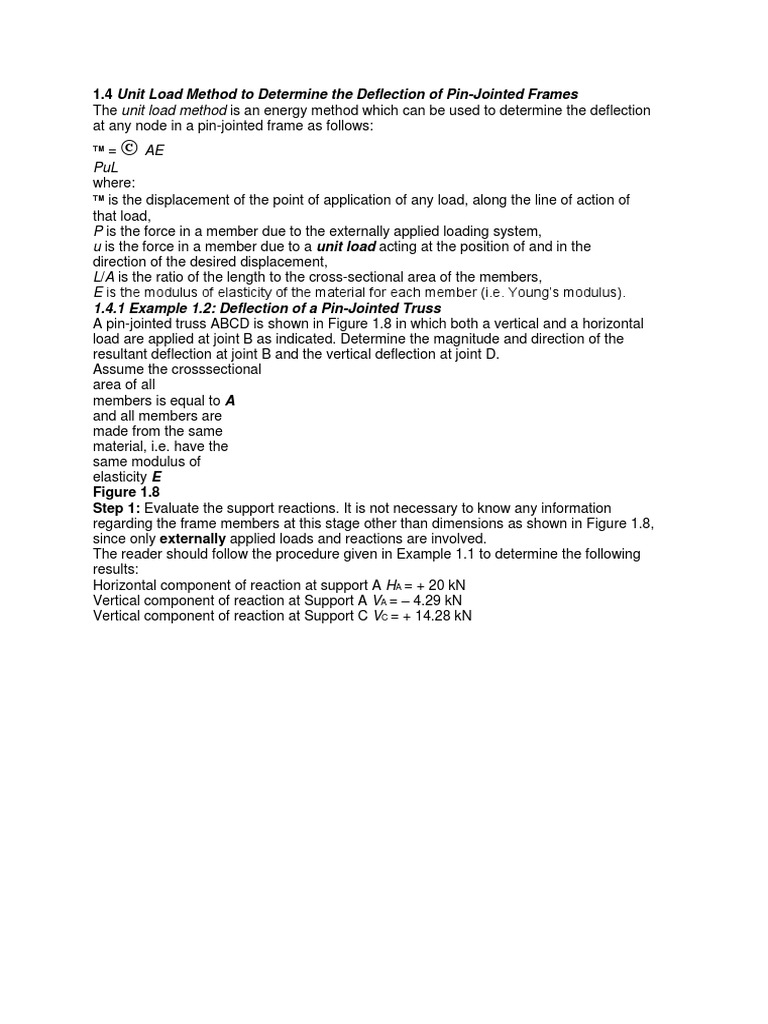

4 Unit Load Method to Determine the Deflection of Pin-J ointed Frames
The unit load method is an energy method which can be used to determine the deflection at any node in a pin-jointed frame as follows: = AE PuL where: is the displacement of the point of application of any load, along the line of action of that load, P is the force in a member due to the externally applied loading system, u is the force in a member due to a unit load acting at the position of and in the direction of the desired displacement, L/A is the ratio of the length to the cross-sectional area of the members, E is the modulus of elasticity of the material for each member (i.e. Youngs modulus). 1.4.1 Example 1.2: Deflection of a Pin-J ointed Truss A pin-jointed truss ABCD is shown in Figure 1.8 in which both a vertical and a horizontal load are applied at joint B as indicated. Determine the magnitude and direction of the resultant deflection at joint B and the vertical deflection at joint D. Assume the crosssectional area of all members is equal to A and all members are made from the same material, i.e. have the same modulus of elasticity E Figure 1.8 Step 1: Evaluate the support reactions. It is not necessary to know any information regarding the frame members at this stage other than dimensions as shown in Figure 1.8, since only externally applied loads and reactions are involved. The reader should follow the procedure given in Example 1.1 to determine the following results: Horizontal component of reaction at support A HA = + 20 kN Vertical component of reaction at Support A VA = 4.29 kN Vertical component of reaction at Support C VC = + 14.28 kN
