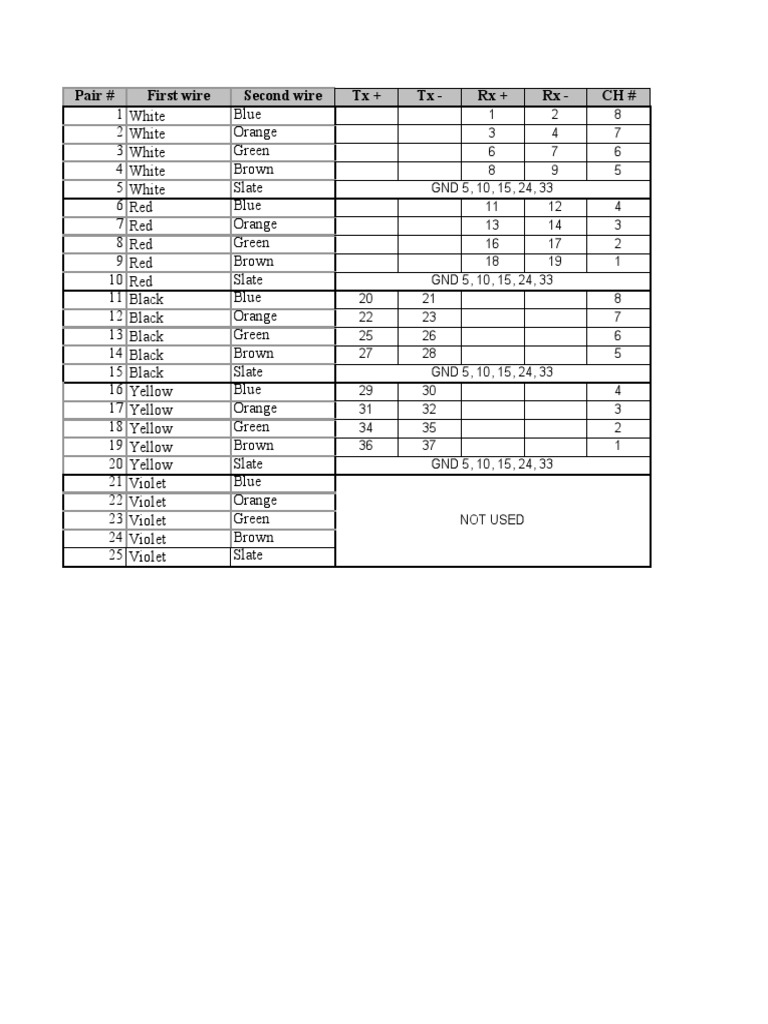

Pair # First wire Second wire Tx + Tx - Rx + Rx - CH #

1 White Blue 1 2 8
2 White Orange 3 4 7
3 White Green 6 7 6
4 White Brown 8 9 5
5 White Slate GND 5, 10, 15, 24, 33
6 Red Blue 11 12 4
7 Red Orange 13 14 3
8 Red Green 16 17 2
9 Red Brown 18 19 1
10 Red Slate GND 5, 10, 15, 24, 33
11 Black Blue 20 21 8
12 Black Orange 22 23 7
13 Black Green 25 26 6
14 Black Brown 27 28 5
15 Black Slate GND 5, 10, 15, 24, 33
16 Yellow Blue 29 30 4
17 Yellow Orange 31 32 3
18 Yellow Green 34 35 2
19 Yellow Brown 36 37 1
20 Yellow Slate GND 5, 10, 15, 24, 33
21 Violet Blue
22 Violet Orange
23 Violet Green NOT USED
24 Violet Brown
25 Violet Slate
Yellow TX+ Grey TX-
Yellow RX+ Green RX-

Red TX+ Gey TX-

Red RX+ Green RX-

Black TX+ Grey TX-

Black RX+ Green RX-

White TX+ Grey TX-

White RX+ Green RX-

Yellow TX+ Orange TX-

Yellow RX+ Blue RX-

Red TX+ Organge TX-

Red RX + Blue RX -

Black TX+ Orange TX -

Black RX+ Blue RX-

White TX+ Orange TX-

White RX+ Blue RX-
