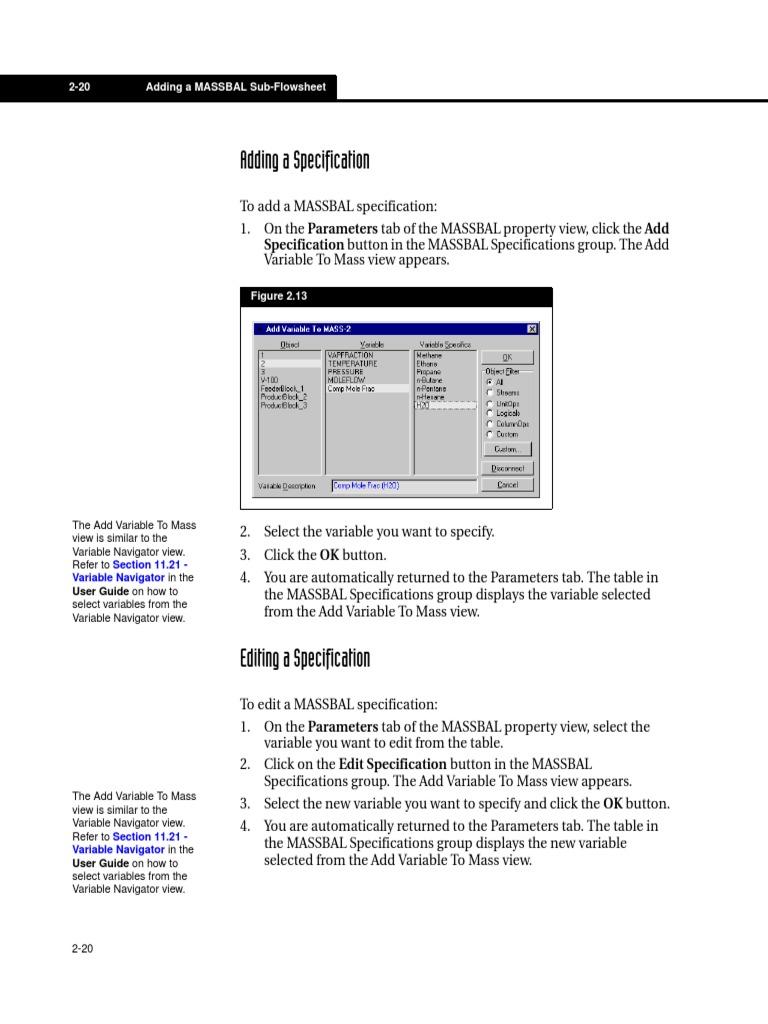

2-20 Adding a MASSBAL Sub-Flowsheet

2-20
Adding a Specification
To add a MASSBAL specification:
1. On the Parameters tab of the MASSBAL property view, click the Add
Specification button in the MASSBAL Specifications group. The Add
Variable To Mass view appears.
2. Select the variable you want to specify.
3. Click the OK button.
4. You are automatically returned to the Parameters tab. The table in
the MASSBAL Specifications group displays the variable selected
from the Add Variable To Mass view.
Editing a Specification
To edit a MASSBAL specification:
1. On the Parameters tab of the MASSBAL property view, select the
variable you want to edit from the table.
2. Click on the Edit Specification button in the MASSBAL
Specifications group. The Add Variable To Mass view appears.
3. Select the new variable you want to specify and click the OK button.
4. You are automatically returned to the Parameters tab. The table in
the MASSBAL Specifications group displays the new variable
selected from the Add Variable To Mass view.
Figure 2.13
The Add Variable To Mass
view is similar to the
Variable Navigator view.
Refer to Section 11.21 -
Variable Navigator in the
User Guide on how to
select variables from the
Variable Navigator view.
The Add Variable To Mass
view is similar to the
Variable Navigator view.
Refer to Section 11.21 -
Variable Navigator in the
User Guide on how to
select variables from the
Variable Navigator view.
