    Section Modulus Equations

    Uploaded by

    Reymondo Bundoc
    This document provides equations for calculating the section modulus of different cross-sectional shapes including rectangles, I-sections, circles, tubes, diamonds, and C-channels. For each shape, it shows a diagram indicating the neutral axis and provides the corresponding equation for determining the section modulus based on the shape's geometry. The section modulus equations allow calculating the bending strength of structural members based on their cross-sectional properties.

    Copyright:

    © All Rights Reserved
    Download as DOCX, PDF, TXT or read online from Scribd
    Flag for inappropriate content
    Download as docx, pdf, or txt
    of 2

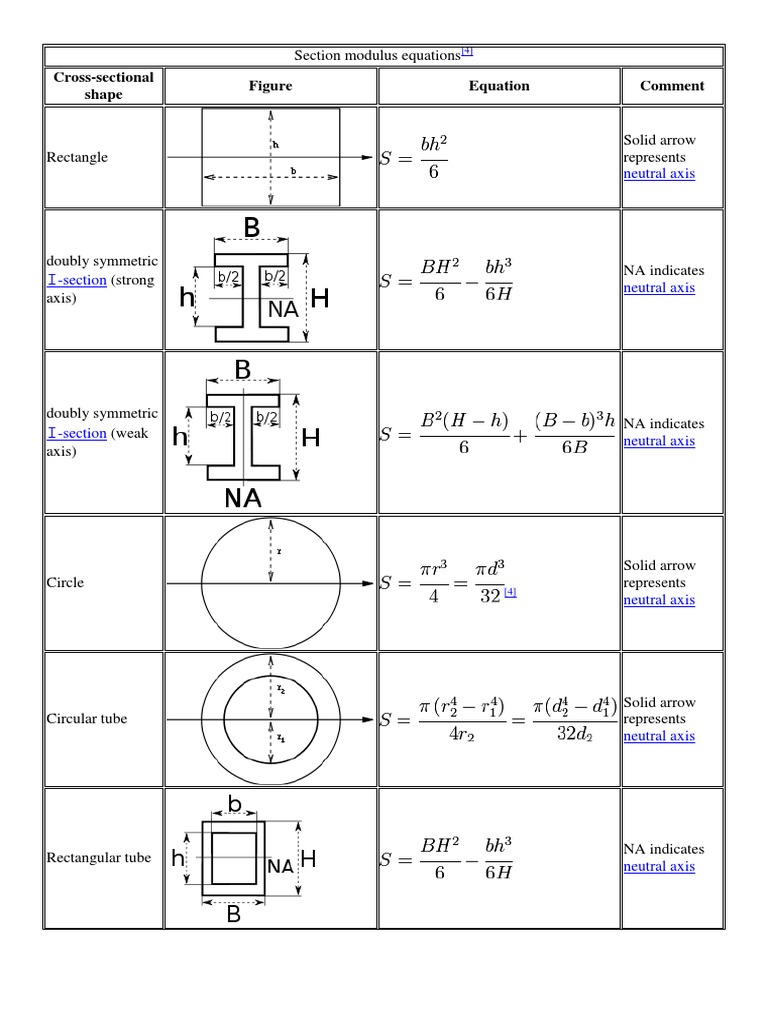

    Section modulus equations[4]

    Cross-sectional
    shape

    Figure

    Equation

    Comment

    Rectangle

    Solid arrow
    represents
    neutral axis

    doubly symmetric
    I-section (strong
    axis)

    NA indicates
    neutral axis

    doubly symmetric
    I-section (weak
    axis)

    NA indicates
    neutral axis

    Circle

    Solid arrow
    represents
    neutral axis

    [4]

    Circular tube

    Solid arrow
    represents
    neutral axis

    Rectangular tube

    NA indicates
    neutral axis

    Diamond

    NA indicates
    neutral axis

    C-channel

    NA indicates
    neutral axis
