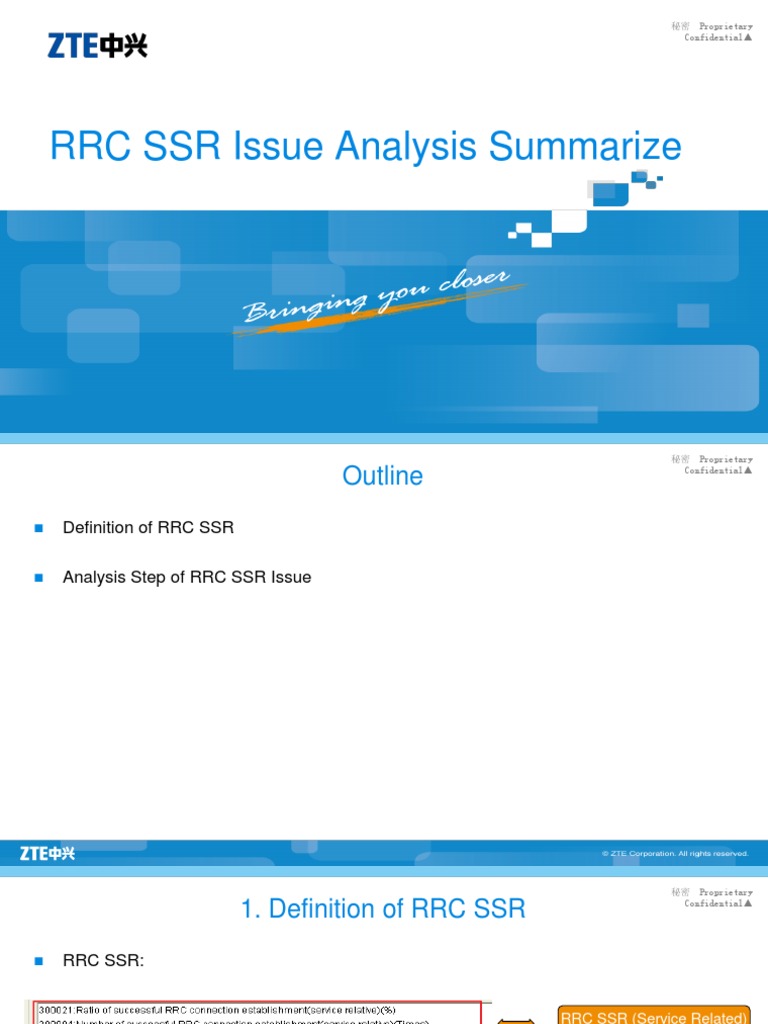

    RRC SSR Issue Analysis Summarize

    Outline

    Definition of RRC SSR

    Analysis Step of RRC SSR Issue

    Proprietary
    Confidential

    1. Definition of RRC SSR

    Proprietary
    Confidential

    RRC SSR:

    RRC SSR (Service Related)

    RRC SSR (All)

    Now we use RRC SSR(All) counter

    2. Analysis of RRC SSR Issue

    Issue Location Step


    Site Alarms
    NodeB Source
    Packet Loss
    Coverage
    RSSI
    Neighbor Cell
    RTWP

    Proprietary
    Confidential

    Proprietary
    Confidential

    2.1 Issue Location


    TopN Cells in 1 Cluster

    All sectors in 1 site have issue

    1 or 2 sector in1 site have issue

    OMMR Team

    Site Alarms

    Coverage / RSSI

    TI Team

    OMMR Team

    NodeB Source

    Neighbor Cell

    Planning Team

    Transmission Team

    Packet Loss

    RTWP

    OMMR Team

    Other Issue

    Optimization expert

    2.2 Site Alarms

    Major or critical 3G site alarms, fg:


    SCTP association is interrupted
    VSWR alarms
    Cell / NodeB is out of service
    RRU link is broken

    Proprietary
    Confidential

    2.3 NodeB Source

    CE resource limited

    Proprietary
    Confidential

    2.4 Packet Loss

    Packet loss ratio

    Proprietary
    Confidential

    2.5 Coverage & RSSI

    RSSI: the absolute difference of RSSI between antenna 1 and antenna 2


    7 days KPI, daily level
    Both the 2 cells in 1 sector is greater than 8, and continue a long time

    Proprietary
    Confidential

    2.5 Coverage & RSSI

    Overshooting: the propagation delay is greater than 8,


    7 days KPI, daily level
    Both the 2 cells in 1 sector has the overshooting issue

    Proprietary
    Confidential

    2.6 Neighbor Cell

    Neighbor cell missing


    3G neighbor cells should greater than 25
    the coverage direction should be added 2 or 3 arc
    the behind direction should be added 1 arc
    2G neighbor cells should greater than 12(in future maybe is 20)

    Proprietary
    Confidential

    2.7 RTWP

    Proprietary
    Confidential

    Usually the normal RTWP is -105 ~ -102 dBm


    Because of the serious interference in LHR, if the RTWP is not greater than -90dBm, we
    think it is normal

    2.6 Poor Coverage

    Proprietary
    Confidential

    The decision whether it is problem of uplink or downlink poor coverage is based on the
    power of dedicated channel before call drop.
    UL Poor Coverage:

    TX power reaches the maximum

    UL BLER is poor

    NodeB report RL failure


    DL Poor Coverage:

    TX power reaches the maximum

    DL BLER is poor
    Scanner:

    If the RSCP and Ec/Io of the cell with the best coverage are poor, you can infer that
    the coverage is poor.
