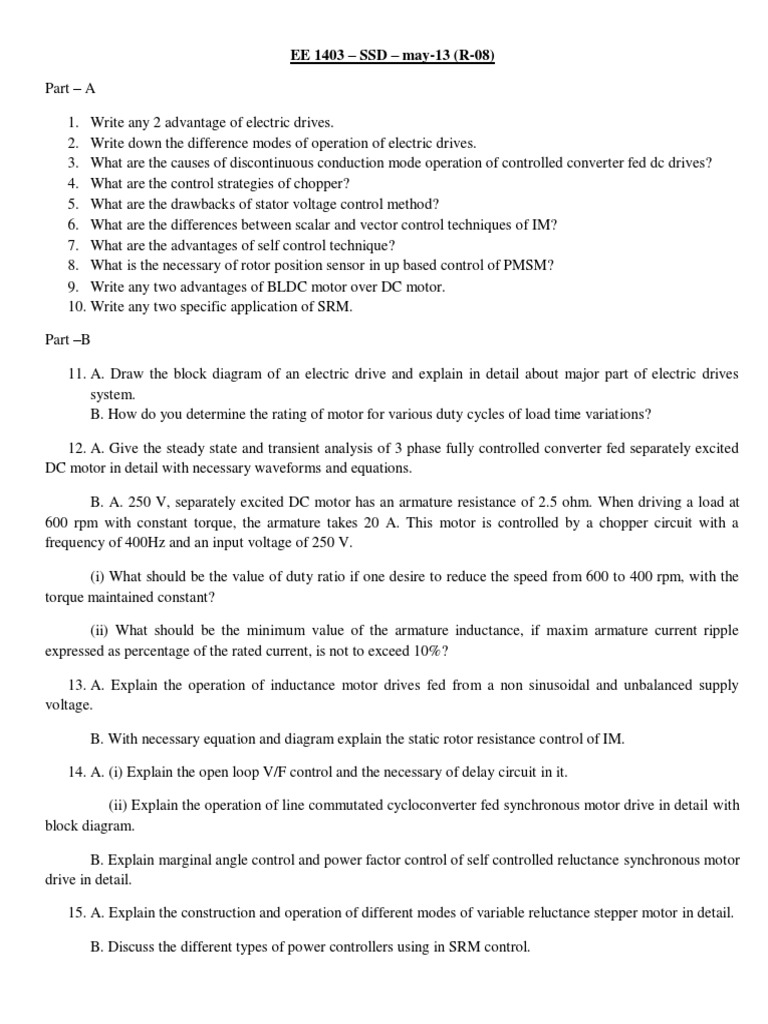

EE 1403 SSD may-13 (R-08)

Part A
1. Write any 2 advantage of electric drives.
2. Write down the difference modes of operation of electric drives.
3. What are the causes of discontinuous conduction mode operation of controlled converter fed dc drives?
4. What are the control strategies of chopper?
5. What are the drawbacks of stator voltage control method?
6. What are the differences between scalar and vector control techniques of IM?
7. What are the advantages of self control technique?
8. What is the necessary of rotor position sensor in up based control of PMSM?
9. Write any two advantages of BLDC motor over DC motor.
10. Write any two specific application of SRM.
Part B
11. A. Draw the block diagram of an electric drive and explain in detail about major part of electric drives
system.
B. How do you determine the rating of motor for various duty cycles of load time variations?
12. A. Give the steady state and transient analysis of 3 phase fully controlled converter fed separately excited
DC motor in detail with necessary waveforms and equations.
B. A. 250 V, separately excited DC motor has an armature resistance of 2.5 ohm. When driving a load at
600 rpm with constant torque, the armature takes 20 A. This motor is controlled by a chopper circuit with a
frequency of 400Hz and an input voltage of 250 V.
(i) What should be the value of duty ratio if one desire to reduce the speed from 600 to 400 rpm, with the
torque maintained constant?
(ii) What should be the minimum value of the armature inductance, if maxim armature current ripple
expressed as percentage of the rated current, is not to exceed 10%?
13. A. Explain the operation of inductance motor drives fed from a non sinusoidal and unbalanced supply
voltage.
B. With necessary equation and diagram explain the static rotor resistance control of IM.
14. A. (i) Explain the open loop V/F control and the necessary of delay circuit in it.
(ii) Explain the operation of line commutated cycloconverter fed synchronous motor drive in detail with
block diagram.
B. Explain marginal angle control and power factor control of self controlled reluctance synchronous motor
drive in detail.
15. A. Explain the construction and operation of different modes of variable reluctance stepper motor in detail.
B. Discuss the different types of power controllers using in SRM control.
