This document contains 4 problems related to calculating drag on objects in laminar boundary layer flow based on the Blasius solution. Problem 1 involves evaluating shear stress and velocity distributions for a flat plate. Problem 2 calculates momentum thickness and drag on a flat plate splitter plate. Problem 3 estimates drag on a curved plate in air flow. Problem 4 asks which of two plate configurations in water flow would experience lower drag before calculating the actual drag values.
This document contains 4 problems related to calculating drag on objects in laminar boundary layer flow based on the Blasius solution. Problem 1 involves evaluating shear stress and velocity distributions for a flat plate. Problem 2 calculates momentum thickness and drag on a flat plate splitter plate. Problem 3 estimates drag on a curved plate in air flow. Problem 4 asks which of two plate configurations in water flow would experience lower drag before calculating the actual drag values.
This document contains 4 problems related to calculating drag on objects in laminar boundary layer flow based on the Blasius solution. Problem 1 involves evaluating shear stress and velocity distributions for a flat plate. Problem 2 calculates momentum thickness and drag on a flat plate splitter plate. Problem 3 estimates drag on a curved plate in air flow. Problem 4 asks which of two plate configurations in water flow would experience lower drag before calculating the actual drag values.

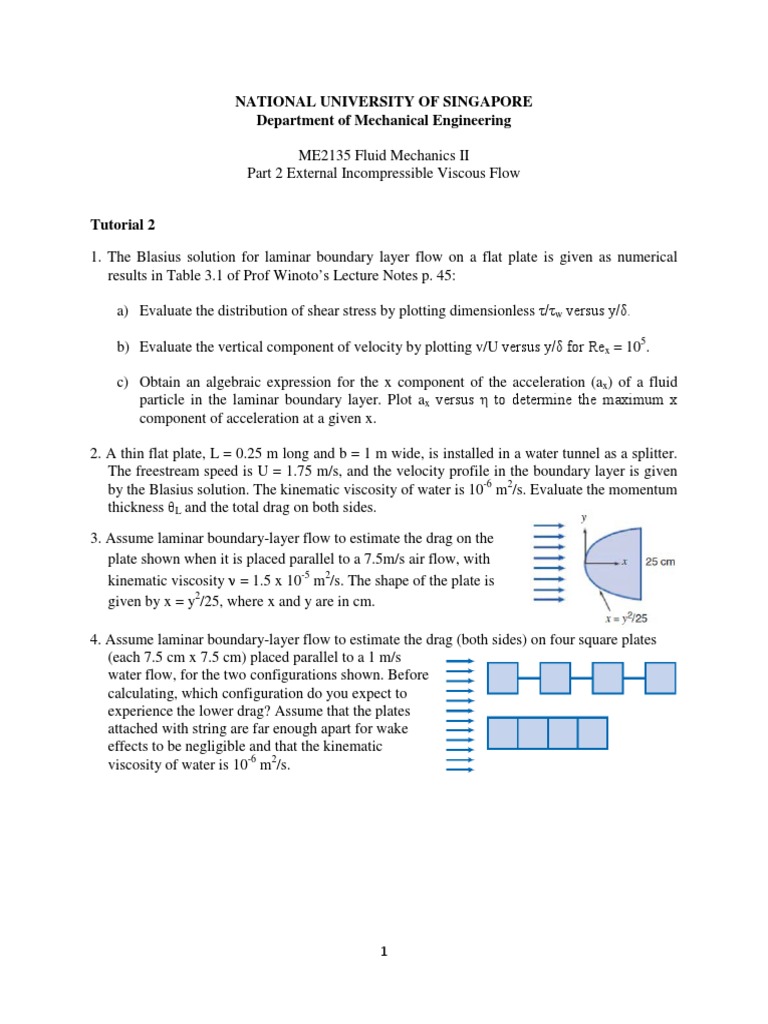

ME2135 Fluid Mechanics II Part 2 External Incompressible Viscous Flow Tutorial 2 1. The Blasius solution for laminar boundary layer flow on a flat plate is given as numerical results in Table 3.1 of Prof Winotos Lecture Notes p. 45: a) Evaluate the distribution of shear stress by plotting dimensionless /w versus y/. b) Evaluate the vertical component of velocity by plotting v/U versus y/ for Rex = 105. c) Obtain an algebraic expression for the x component of the acceleration (ax) of a fluid particle in the laminar boundary layer. Plot ax versus to determine the maximum x component of acceleration at a given x. 2. A thin flat plate, L = 0.25 m long and b = 1 m wide, is installed in a water tunnel as a splitter. The freestream speed is U = 1.75 m/s, and the velocity profile in the boundary layer is given by the Blasius solution. The kinematic viscosity of water is 10-6 m2/s. Evaluate the momentum thickness L and the total drag on both sides. 3. Assume laminar boundary-layer flow to estimate the drag on the plate shown when it is placed parallel to a 7.5m/s air flow, with kinematic viscosity = 1.5 x 10-5 m2/s. The shape of the plate is given by x = y2/25, where x and y are in cm. 4. Assume laminar boundary-layer flow to estimate the drag (both sides) on four square plates (each 7.5 cm x 7.5 cm) placed parallel to a 1 m/s water flow, for the two configurations shown. Before calculating, which configuration do you expect to experience the lower drag? Assume that the plates attached with string are far enough apart for wake effects to be negligible and that the kinematic viscosity of water is 10-6 m2/s.
