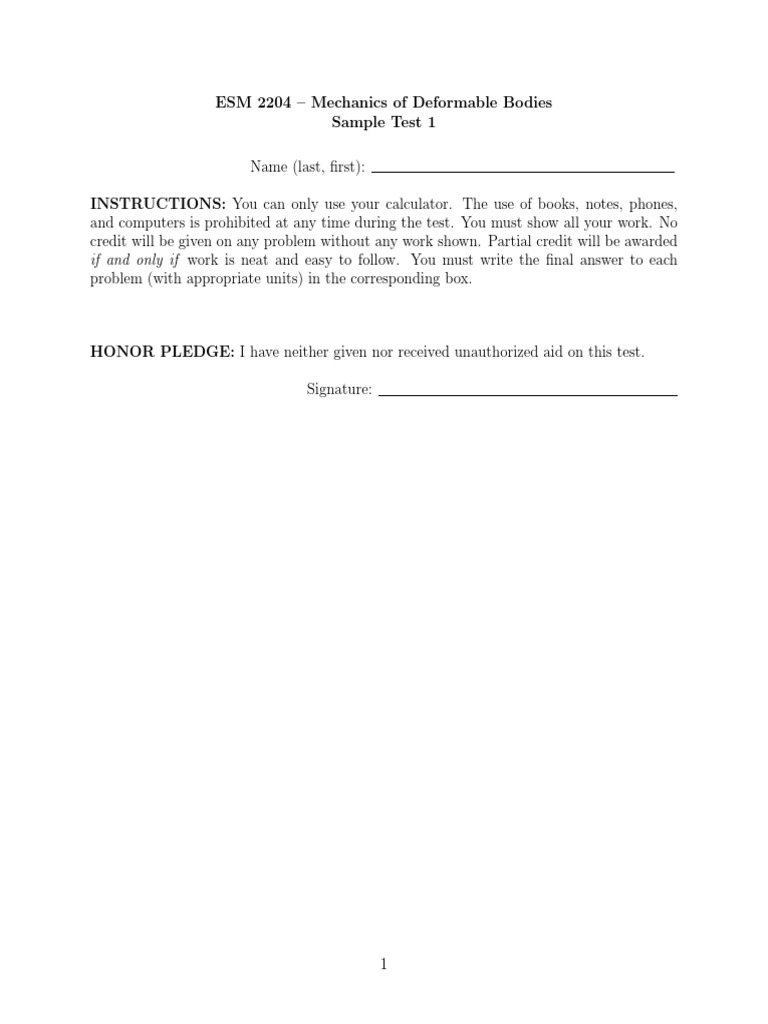

ESM 2204 Mechanics of Deformable Bodies

Sample Test 1
Name (last, first):
INSTRUCTIONS: You can only use your calculator. The use of books, notes, phones,
and computers is prohibited at any time during the test. You must show all your work. No
credit will be given on any problem without any work shown. Partial credit will be awarded
if and only if work is neat and easy to follow. You must write the final answer to each
problem (with appropriate units) in the corresponding box.

HONOR PLEDGE: I have neither given nor received unauthorized aid on this test.
Signature:

[10%] The rod ABC is made of an aluminum for which E=70 GPa. Knowing that P = 6
kN and Q = 42 kN, determine the displacement of (a) point A, (b) point B.

20 mm diameter

0.4 m
B

0.5 m

60 mm diameter

(a)=

(b)=
2

[15%] The change in diameter of a large steel bolt is carefully measured as the nut is tightened.
Knowing that E = 29 106 psi and = 0.30, determine the internal force in the bolt, if the
diameter is observed to decrease by 0.5103 in.
4 in

force in bolt=
3

[15%] An acetal polymer block is fixed to rigid plates at its top and bottom surfaces. If the
top plate displaces 2 mm horizontally when it is subjected to a horizontal force P = 2 kN,
determine the shear modulus of the polymer. The width of the block is 100 mm. Assume
that the polymer is linearly elastic and use small angle analysis.
400 mm
P 5 2 kN

200 mm

shear modulus=

[10%] The yoke-and-rod connection is subjected to a tensile force of 10 kN. Determine the
average normal stress in rod B and rod C.
10 kN

5 kN

8040mm
mm
B

30 mm
A
25 mm
50
mm

C
60 mm

kN
105kN

Normal stress in rod B=

Normal stress in rod C=

[25%] Workout Problem: The concrete post (Ec = 3.6 106 psi and c = 5.5 106 /o F)
is reinforced with six steel bars (Es = 29 106 psi and s = 6.5 106 /o F), each having a
diameter of 0.875 in. Determine the normal stresses induced in the steel and in the concrete
by a temperature rise of 65 o F.

72 ft

10 in

10 in

Normal stress in steel=

Normal stress in concrete=

[25%] Workout Problem: The rigid link is supported by a pin at A and two steel wires, each
having an unstretched length of 15 in. and cross-sectional area of 0.0115 in2 . Determine the
force developed in the wires when the link supports the vertical load of 400 lb. Note that
Es = 29 103 ksi.
C

15 in.

7 in.
B
5 in.

6 in.

400 lb

FB =

FC =
