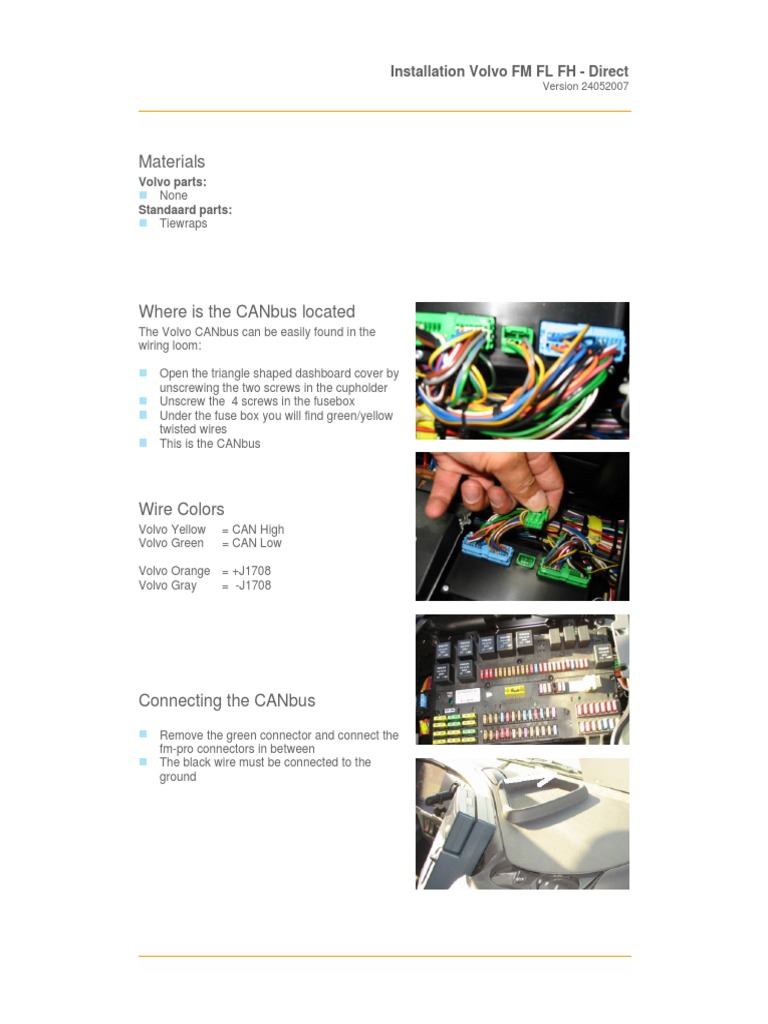

    Installation Volvo FM FL FH - Direct

    Version 24052007

    Materials
    Volvo parts:
    None
    Standaard parts:
    Tiewraps

    Where is the CANbus located


    The Volvo CANbus can be easily found in the
    wiring loom:
    Open the triangle shaped dashboard cover by
    unscrewing the two screws in the cupholder
    Unscrew the 4 screws in the fusebox
    Under the fuse box you will find green/yellow
    twisted wires
    This is the CANbus

    Wire Colors
    Volvo Yellow
    Volvo Green

    = CAN High
    = CAN Low

    Volvo Orange = +J1708


    Volvo Gray
    = -J1708

    Connecting the CANbus


    Remove the green connector and connect the
    Ffm-pro connectors in between
    The black wire must be connected to the
    ground
