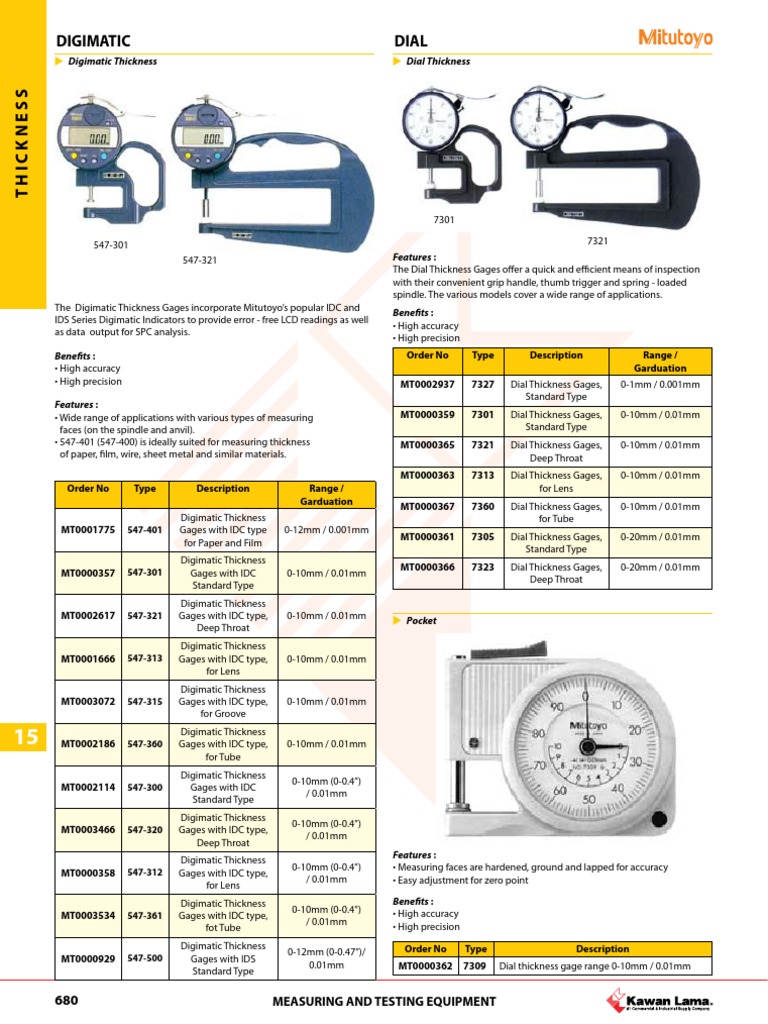

DIGIMATIC

DIAL
Dial Thickness

THICKNESS

Digimatic Thickness

7301
7321

547-301

Features :
The Dial Thickness Gages offer a quick and efficient means of inspection
with their convenient grip handle, thumb trigger and spring - loaded
spindle. The various models cover a wide range of applications.

547-321

The Digimatic Thickness Gages incorporate Mitutoyos popular IDC and

IDS Series Digimatic Indicators to provide error - free LCD readings as well
as data output for SPC analysis.
Benefits :
High accuracy
High precision
Features :
Wide range of applications with various types of measuring
faces (on the spindle and anvil).
547-401 (547-400) is ideally suited for measuring thickness
of paper, film, wire, sheet metal and similar materials.
Order No

15

Order No

Type

Description

Range /
Garduation

MT0002937

7327

Dial Thickness Gages,

Standard Type

0-1mm / 0.001mm

MT0000359

7301

Dial Thickness Gages,

Standard Type

0-10mm / 0.01mm

MT0000365

7321

Dial Thickness Gages,

Deep Throat

0-10mm / 0.01mm

MT0000363

7313

Dial Thickness Gages,

for Lens

0-10mm / 0.01mm

MT0000367

7360

Dial Thickness Gages,

for Tube

0-10mm / 0.01mm

MT0000361

7305

Dial Thickness Gages,

Standard Type

0-20mm / 0.01mm

MT0000366

7323

Dial Thickness Gages,

Deep Throat

0-20mm / 0.01mm

Type

Description

MT0001775

547-401

Digimatic Thickness
Gages with IDC type
for Paper and Film

0-12mm / 0.001mm

MT0000357

547-301

Digimatic Thickness
Gages with IDC
Standard Type

0-10mm / 0.01mm

MT0002617

547-321

Digimatic Thickness
Gages with IDC type,
Deep Throat

0-10mm / 0.01mm

MT0001666

547-313

Digimatic Thickness
Gages with IDC type,
for Lens

0-10mm / 0.01mm

MT0003072

547-315

Digimatic Thickness
Gages with IDC type,
for Groove

0-10mm / 0.01mm

MT0002186

547-360

Digimatic Thickness
Gages with IDC type,
for Tube

0-10mm / 0.01mm

MT0002114

547-300

Digimatic Thickness
Gages with IDC
Standard Type

0-10mm (0-0.4)
/ 0.01mm

MT0003466

547-320

Digimatic Thickness
Gages with IDC type,
Deep Throat

0-10mm (0-0.4)
/ 0.01mm

MT0000358

547-312

Digimatic Thickness
Gages with IDC type,
for Lens

0-10mm (0-0.4)
/ 0.01mm

Features :
Measuring faces are hardened, ground and lapped for accuracy
Easy adjustment for zero point

MT0003534

547-361

Digimatic Thickness
Gages with IDC type,
fot Tube

0-10mm (0-0.4)
/ 0.01mm

Benefits :
High accuracy
High precision

MT0000929

547-500

Digimatic Thickness
Gages with IDS
Standard Type

0-12mm (0-0.47)/
0.01mm

Order No

Type

MT0000362

7309

680

Range /
Garduation

Benefits :
High accuracy
High precision

Pocket

MEASURING AND TESTING EQUIPMENT

Description
Dial thickness gage range 0-10mm / 0.01mm
