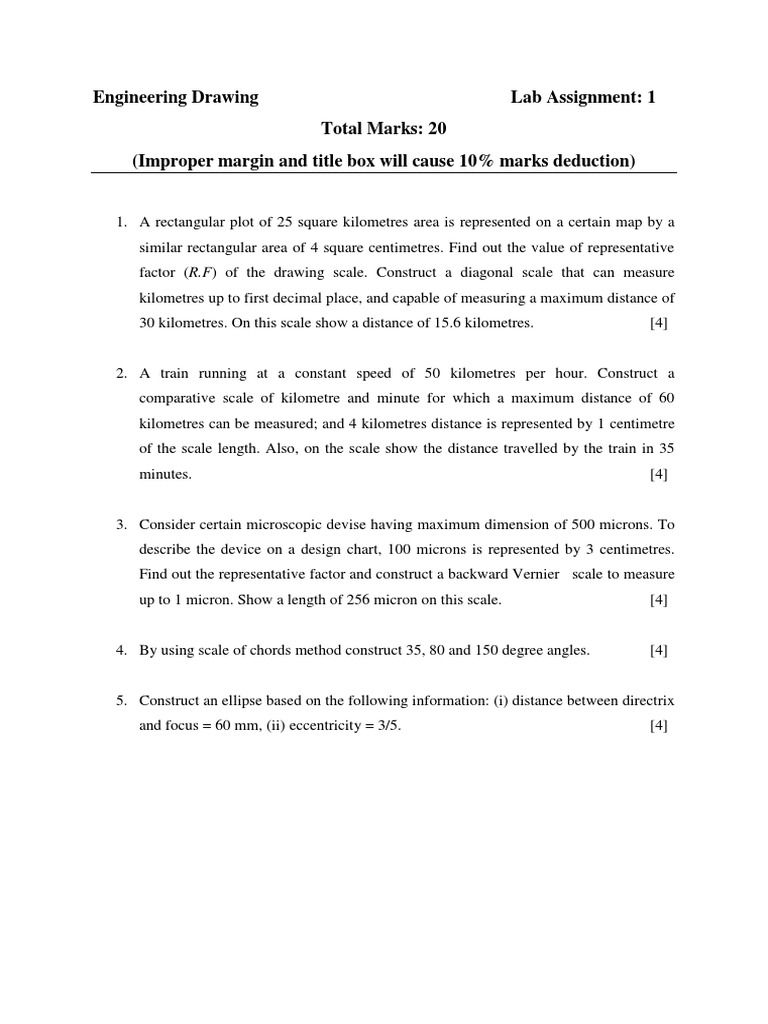

Engineering Drawing

Lab Assignment: 1
Total Marks: 20

(Improper margin and title box will cause 10% marks deduction)

1. A rectangular plot of 25 square kilometres area is represented on a certain map by a

similar rectangular area of 4 square centimetres. Find out the value of representative
factor (R.F) of the drawing scale. Construct a diagonal scale that can measure
kilometres up to first decimal place, and capable of measuring a maximum distance of
30 kilometres. On this scale show a distance of 15.6 kilometres.

[4]

2. A train running at a constant speed of 50 kilometres per hour. Construct a

comparative scale of kilometre and minute for which a maximum distance of 60
kilometres can be measured; and 4 kilometres distance is represented by 1 centimetre
of the scale length. Also, on the scale show the distance travelled by the train in 35
minutes.

[4]

3. Consider certain microscopic devise having maximum dimension of 500 microns. To

describe the device on a design chart, 100 microns is represented by 3 centimetres.
Find out the representative factor and construct a backward Vernier scale to measure
up to 1 micron. Show a length of 256 micron on this scale.

4. By using scale of chords method construct 35, 80 and 150 degree angles.

[4]

[4]

5. Construct an ellipse based on the following information: (i) distance between directrix
and focus = 60 mm, (ii) eccentricity = 3/5.

[4]
