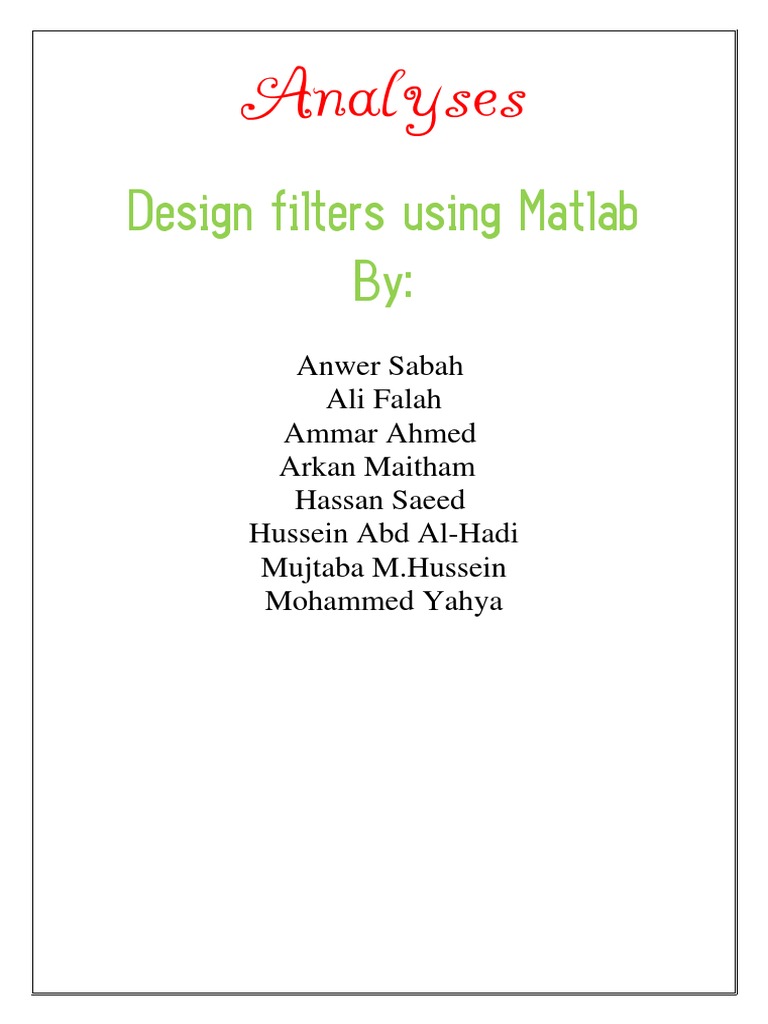

    Design filters using Matlab

    By:
    Anwer Sabah
    Ali Falah
    Ammar Ahmed
    Arkan Maitham
    Hassan Saeed
    Hussein Abd Al-Hadi
    Mujtaba M.Hussein
    Mohammed Yahya

    1- Low Pass Filter "LPF":Fs: simple frequency.


    Fn: nyquist frequency.
    n: the filter order.
    wn: the filtering frequencies.
    P: no. of elements of the array.
    Q: no. of rows .
    Type: 'LPF' .

    fs= ;
    fn=fs/2;
    x=randn(p,q);
    [b,a]=butter(n,wn/fn,'type');
    y=filter(b,a,x)
    freqz(b,a, number of poins,fs)
    Example1:fs=1500;
    fn=fs/2;
    x=randn(1000,1);
    [b,a]=butter(4,50/fn);
    y=filter(b,a,x);
    figure(1)
    freqz(b,a,1000,fs)

    Example2:fs=1500;
    fn=fs/2;
    t=0:1/fs:0.5;
    x=cos(2*pi*500*t);
    [b,a]=butter(6,500/fn);
    y=filter(b,a,x);
    figure(1)
    freqz(b,a,1000,fs)

    2- High Pass Filter "HPF":Fs: simple frequency.


    Fn: nyquist frequency.
    n: the filter order.
    wn: the filtering frequencies.
    P: no. of elements of the array.
    Q: no. of rows .
    Type: 'HPF' .

    fs= ;
    fn=fs/2;
    x=randn(p,q);
    [b,a]=butter(n,wn/fn,'type');
    y=filter(b,a,x)
    freqz(b,a, number of poins,fs)

    Example1:fs=1500;
    fn=fs/2;
    x=randn(1000,1);
    [b,a]=butter(6,150/fn,'high');
    y=filter(b,a,x);
    figure(1)
    freqz(b,a,1000,fs)

    Example2:fs=1500;
    fn=fs/2;
    t=0:1/fs:0.5;
    x=cos(2*pi*400*t);
    [b,a]=butter(6,150/fn,'high');
    y=filter(b,a,x);
    figure(1)
    freqz(b,a,1000,fs)

    3- Band Pass Filter "BPF":Fs: simple frequency.


    Fn: nyquist frequency.
    n: the filter order.
    wn: the filtering frequencies=[wn1 wn2].
    P: no. of elements of the array.
    Q: no. of rows .
    Type: 'BPF' .

    fs= ;
    fn=fs/2;
    x=randn(p,q);
    [b,a]=butter(n,wn/fn,'type');
    y=filter(b,a,x)
    freqz(b,a, number of poins,fs)
    Example1:fs=1000;
    fn=fs/2;
    x=randn(1000,1);
    [b,a]=butter(4,[400 450]/fn,'bandpass');
    y=filter(b,a,x);
    figure(1)
    freqz(b,a,1000,fs)

    Example2:fs=1000;
    fn=fs/2;
    t=0:1/fs:0.5;
    x=cos(2*pi*50*t);
    [b,a]=butter(4,[25 75]/fn,'bandpass');
    y=filter(b,a,x);
    figure(1)
    freqz(b,a,1000,fs)

    4- Band Stop Filter "PSF":Fs: simple frequency.


    Fn: nyquist frequency.
    n: the filter order.
    wn: the filtering frequencies=[wn1 wn2].
    P: no. of elements of the array.
    Q: no. of rows .
    Type: 'PSF' .

    fs= ;
    fn=fs/2;
    x=randn(p,q);
    [b,a]=butter(n,wn/fn,'type');
    y=filter(b,a,x)
    freqz(b,a, number of poins,fs)
    Example1:fs=1000;
    fn=fs/2;
    x=randn(1000,1);
    [b,a]=butter(4,[150 250]/fn,'stop');
    y=filter(b,a,x);
    figure(1)
    freqz(b,a,1000,fs)

    Example2:fs=1000;
    fn=fs/2;
    t=0:1/fs:0.5;
    x=cos(2*pi*100*t);
    [b,a]=butter(4,[100 200]/fn,'stop');
    y=filter(b,a,x);
    figure(1)
    freqz(b,a,1000,fs)
