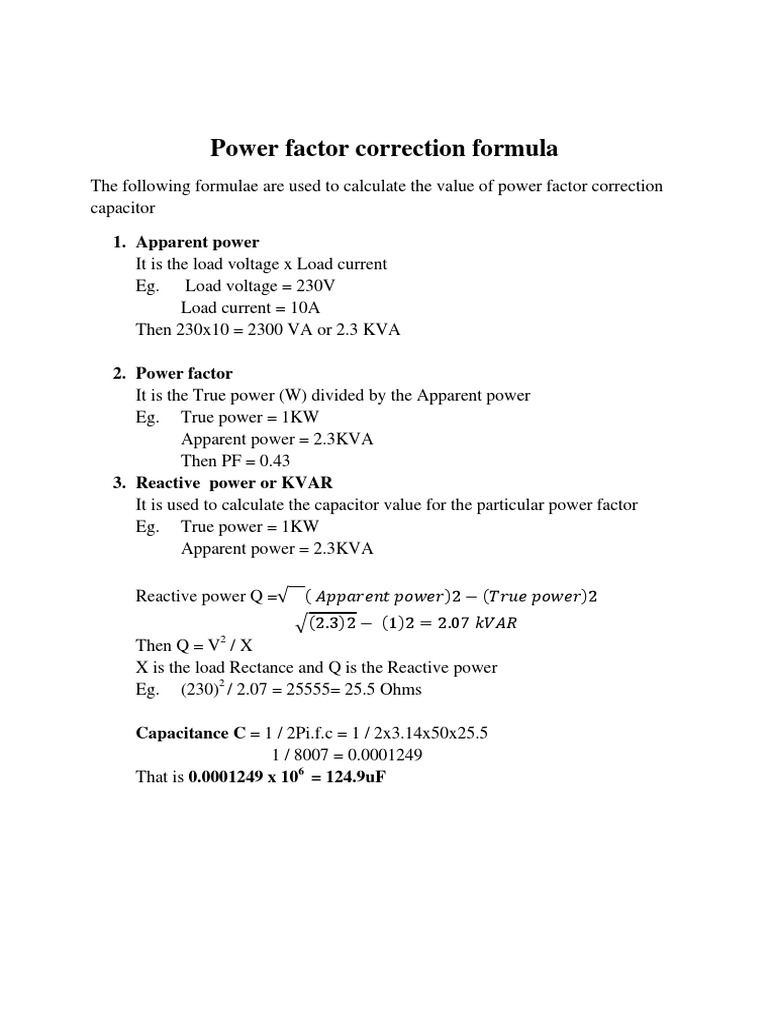

    Power factor correction formula

    The following formulae are used to calculate the value of power factor correction
    capacitor
    1. Apparent power
    It is the load voltage x Load current
    Eg. Load voltage = 230V
    Load current = 10A
    Then 230x10 = 2300 VA or 2.3 KVA
    2. Power factor
    It is the True power (W) divided by the Apparent power
    Eg. True power = 1KW
    Apparent power = 2.3KVA
    Then PF = 0.43
    3. Reactive power or KVAR
    It is used to calculate the capacitor value for the particular power factor
    Eg. True power = 1KW
    Apparent power = 2.3KVA
    Reactive power Q =
      2    2
    2.3 2 1 2 = 2.07
    2

    Then Q = V / X
    X is the load Rectance and Q is the Reactive power
    Eg. (230)2 / 2.07 = 25555= 25.5 Ohms
    Capacitance C = 1 / 2Pi.f.c = 1 / 2x3.14x50x25.5
    1 / 8007 = 0.0001249
    That is 0.0001249 x 106 = 124.9uF
