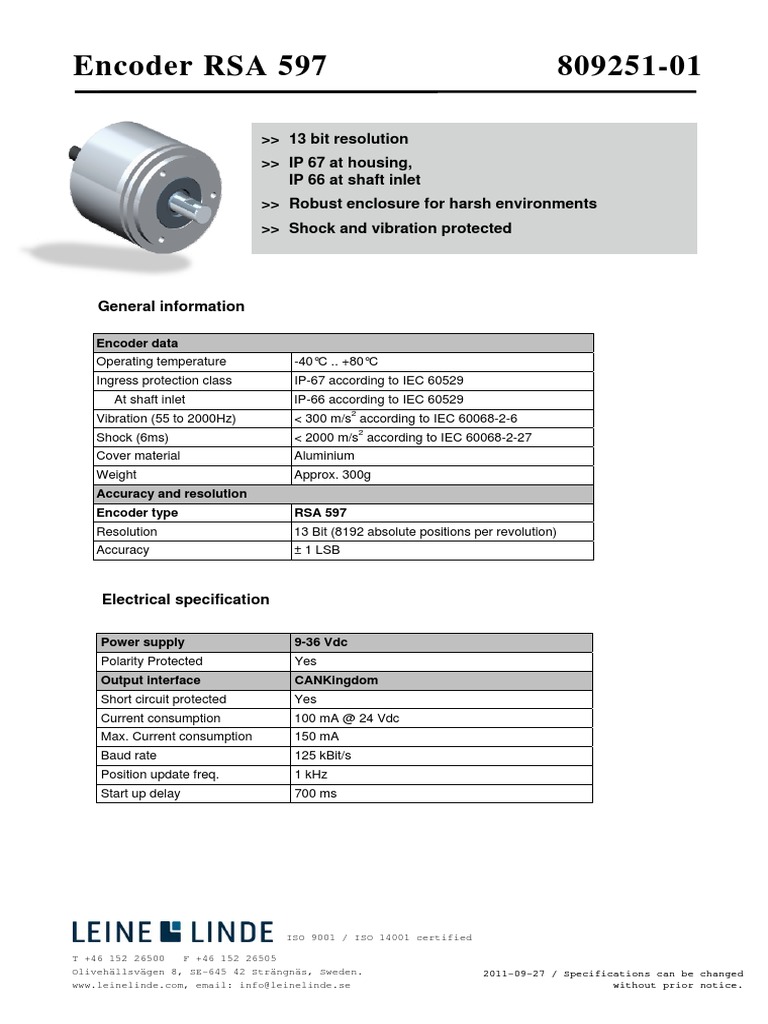

    Encoder RSA 597

    809251-01

    >> 13 bit resolution


    >> IP 67 at housing,
    IP 66 at shaft inlet
    >> Robust enclosure for harsh environments
    >> Shock and vibration protected

    General information
    Encoder data
    Operating temperature

    -40C .. +80C

    Ingress protection class

    IP-67 according to IEC 60529

    At shaft inlet

    IP-66 according to IEC 60529

    Vibration (55 to 2000Hz)

    < 300 m/s2 according to IEC 60068-2-6

    Shock (6ms)

    < 2000 m/s2 according to IEC 60068-2-27

    Cover material

    Aluminium

    Weight

    Approx. 300g

    Accuracy and resolution


    Encoder type

    RSA 597

    Resolution

    13 Bit (8192 absolute positions per revolution)

    Accuracy

    1 LSB

    Electrical specification
    Power supply

    9-36 Vdc

    Polarity Protected

    Yes

    Output interface

    CANKingdom

    Short circuit protected

    Yes

    Current consumption

    100 mA @ 24 Vdc

    Max. Current consumption

    150 mA

    Baud rate

    125 kBit/s

    Position update freq.

    1 kHz

    Start up delay

    700 ms

    ISO 9001 / ISO 14001 certified


    T +46 152 26500
    F +46 152 26505
    Olivehllsvgen 8, SE-645 42 Strngns, Sweden.
    www.leinelinde.com, email: info@leinelinde.se

    2011-09-27 / Specifications can be changed


    without prior notice.

    Encoder RSA 597

    809251-01

    Connection
    Encoder type

    Pin

    Function

    Cable

    Address bit 0

    White

    Address bit 1

    Brown

    Address bit 2

    Grey

    Address bit 3

    Violet

    Address 0 Volt

    Pink

    CAN_H

    Green

    CAN_L

    Yellow

    CAN_GND

    Black

    +E Volt

    Red

    0 Volt

    Blue

    Case

    Shield

    Connecting direction
    Axial

    Flange specification
    Flange type

    63, Synchro

    Outer diameter

    58 mm

    Mounting holes

    3 x M4

    Flange material

    Aluminium

    Shaft specification
    Shaft type

    10 with face

    Axial shaft load

    50 N

    Radial shaft load

    60 N

    Mech. permissible
    speed
    Shaft material

    6000 rpm (12000 rpm)


    Stainless steel

    Moment of inertia

    2,0 x 10-6 kgm2

    ISO 9001 / ISO 14001 certified


    T +46 152 26500
    F +46 152 26505
    Olivehllsvgen 8, SE-645 42 Strngns, Sweden.
    www.leinelinde.com, email: info@leinelinde.se

    2011-09-27 / Specifications can be changed


    without prior notice.

    Encoder RSA 597

    809251-01

    Ordering information
    CANKingdom

    80925101

    RSA5976310wf936Vdc8192CANKingdomax.cab5m

    Dimensions
    RSA 597 63 10wf ax. Cab

    ISO 9001 / ISO 14001 certified


    T +46 152 26500
    F +46 152 26505
    Olivehllsvgen 8, SE-645 42 Strngns, Sweden.
    www.leinelinde.com, email: info@leinelinde.se

    2011-09-27 / Specifications can be changed


    without prior notice.

    Encoder RSA 597

    809251-01

    ISO 9001 / ISO 14001 certified


    T +46 152 26500
    F +46 152 26505
    Olivehllsvgen 8, SE-645 42 Strngns, Sweden.
    www.leinelinde.com, email: info@leinelinde.se

    2011-09-27 / Specifications can be changed


    without prior notice.
