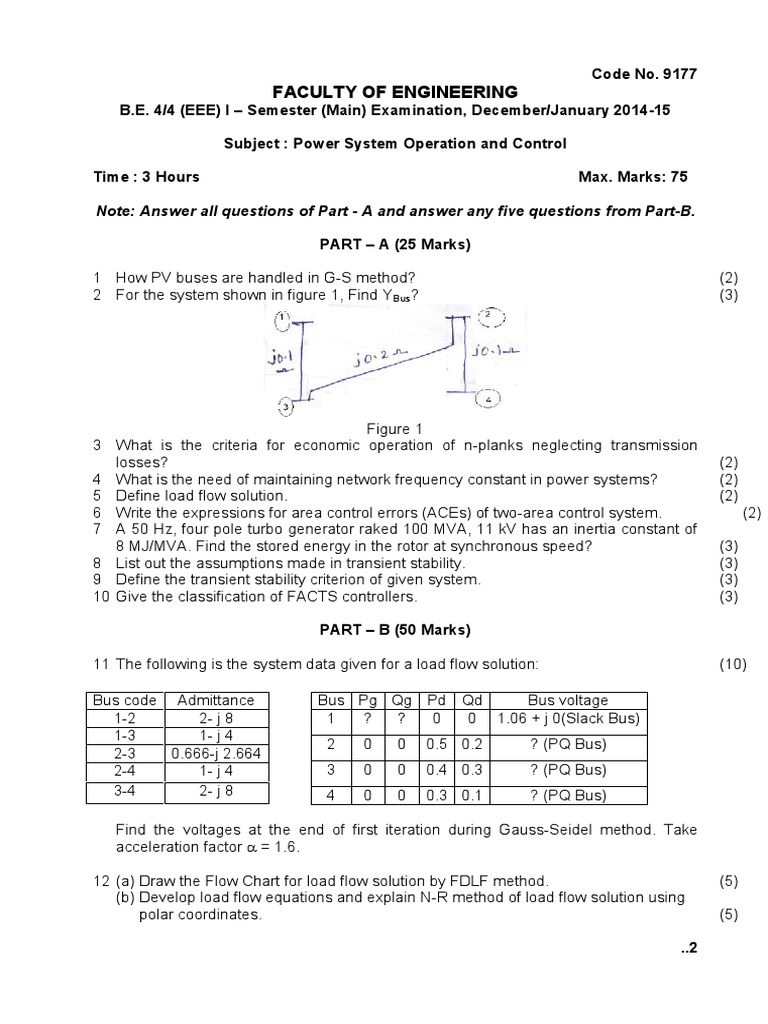

Code No.

9177

FACULTY OF ENGINEERING

B.E. 4/4 (EEE) I Semester (Main) Examination, December/January 2014-15

Subject : Power System Operation and Control
Time : 3 Hours

Max. Marks: 75

Note: Answer all questions of Part - A and answer any five questions from Part-B.
PART A (25 Marks)
1 How PV buses are handled in G-S method?
2 For the system shown in figure 1, Find YBus?

(2)
(3)

Figure 1
3 What is the criteria for economic operation of n-planks neglecting transmission
losses?
4 What is the need of maintaining network frequency constant in power systems?
5 Define load flow solution.
6 Write the expressions for area control errors (ACEs) of two-area control system.
7 A 50 Hz, four pole turbo generator raked 100 MVA, 11 kV has an inertia constant of
8 MJ/MVA. Find the stored energy in the rotor at synchronous speed?
8 List out the assumptions made in transient stability.
9 Define the transient stability criterion of given system.
10 Give the classification of FACTS controllers.

(2)
(2)
(2)

(2)

(3)
(3)
(3)
(3)

PART B (50 Marks)

11 The following is the system data given for a load flow solution:
Bus code Admittance
1-2
2- j 8
1-3
1- j 4
2-3
0.666-j 2.664
2-4
1- j 4
3-4
2- j 8

Bus Pg Qg Pd
1
?
?
0

(10)

Qd
Bus voltage
0 1.06 + j 0(Slack Bus)

0.5 0.2

? (PQ Bus)

0.4 0.3

? (PQ Bus)

0.3 0.1

? (PQ Bus)

Find the voltages at the end of first iteration during Gauss-Seidel method. Take
acceleration factor = 1.6.
12 (a) Draw the Flow Chart for load flow solution by FDLF method.
(b) Develop load flow equations and explain N-R method of load flow solution using
polar coordinates.
..2

(5)
(5)

..2..

Code No. 9177

13 (a) Derive an expression for Bmn coefficients.

(b) A system consists of two planks connected by a transmission line. The only load
is located at plant 2. When 200 MW is transmitted from plant 1 to plant 2 power
loss in the line is 16 MW. Find the required generation for each plant and the
power received by the load when = Rs.12.5/MWh. Assume that incremental fuel
costs can be approximated by the following expressions.
dF1
dF
0.01 p1 8.5 Rs / MWh ; 2 0.015 p 2 9.5 Rs / MWh
dp1
dp 2

(5)

14 (a) Obtain the steady state response of load frequency control of an isolated power
system for uncrontrolled case?
(b) Derive the state variable model of LFC for single area system.

(5)
(5)

15 (a) Derive the swing equation.

(b) Find the maximum steady state power transfer for the system shown in figure 2.

(5)
(5)

16

Figure 2
Find the critical clearing angle for the system shown in figure 3 for a three-phase
fault at point p. The generator is delivering 1.0 pu power under pre-fault
conditions.

Figure 3
17 (a) Explain the principle of operation UPFC with neat diagrams.
(b) Explain the factors that affect transient stability.
*****

(10)

(5)
(5)
