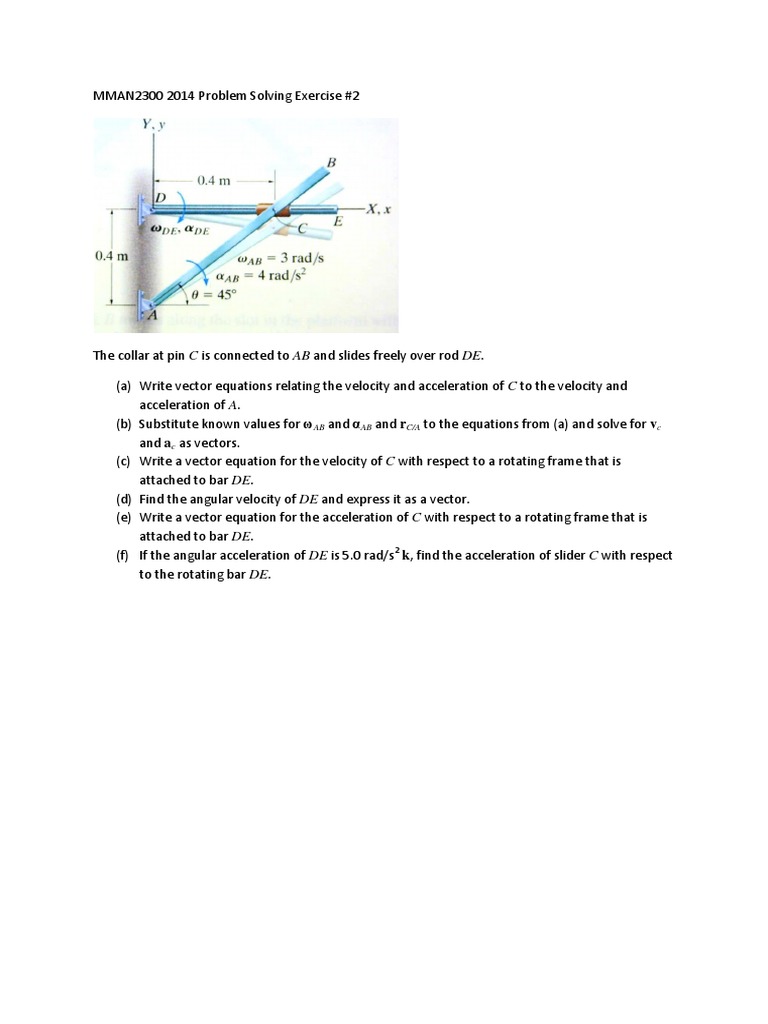

    MMAN2300 2014 Problem Solving Exercise #2

    The collar at pin C is connected to AB and slides freely over rod DE.
    (a) Write vector equations relating the velocity and acceleration of C to the velocity and
    acceleration of A.
    (b) Substitute known values for AB and AB and rC/A to the equations from (a) and solve for vc
    and ac as vectors.
    (c) Write a vector equation for the velocity of C with respect to a rotating frame that is
    attached to bar DE.
    (d) Find the angular velocity of DE and express it as a vector.
    (e) Write a vector equation for the acceleration of C with respect to a rotating frame that is
    attached to bar DE.
    (f) If the angular acceleration of DE is 5.0 rad/s2 k, find the acceleration of slider C with respect
    to the rotating bar DE.
