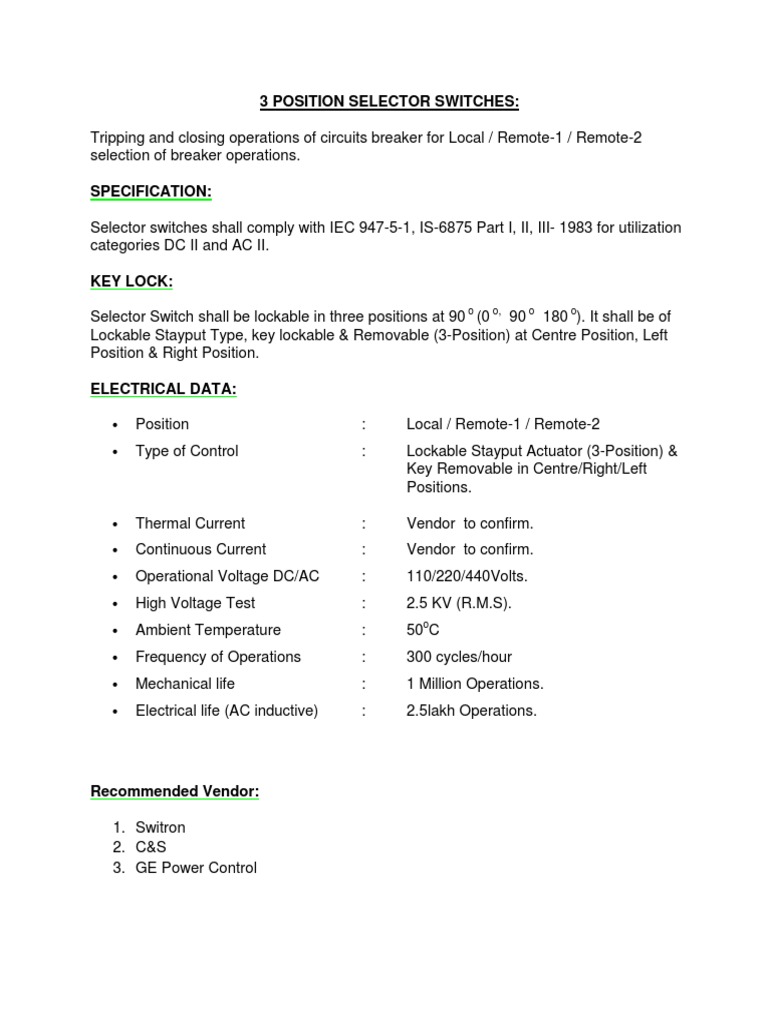

    3 POSITION SELECTOR SWITCHES:

    Tripping and closing operations of circuits breaker for Local / Remote-1 / Remote-2
    selection of breaker operations.
    SPECIFICATION:
    Selector switches shall comply with IEC 947-5-1, IS-6875 Part I, II, III- 1983 for utilization
    categories DC II and AC II.
    KEY LOCK:
    Selector Switch shall be lockable in three positions at 90 o (0 o, 90 o 180 o). It shall be of
    Lockable Stayput Type, key lockable & Removable (3-Position) at Centre Position, Left
    Position & Right Position.
    ELECTRICAL DATA:

    Position

    Local / Remote-1 / Remote-2

    Type of Control

    Lockable Stayput Actuator (3-Position) &


    Key Removable in Centre/Right/Left
    Positions.

    Thermal Current

    Vendor to confirm.

    Continuous Current

    Vendor to confirm.

    Operational Voltage DC/AC

    110/220/440Volts.

    High Voltage Test

    2.5 KV (R.M.S).

    Ambient Temperature

    50oC

    Frequency of Operations

    300 cycles/hour

    Mechanical life

    1 Million Operations.

    Electrical life (AC inductive)

    2.5lakh Operations.

    Recommended Vendor:
    1. Switron
    2. C&S
    3. GE Power Control
