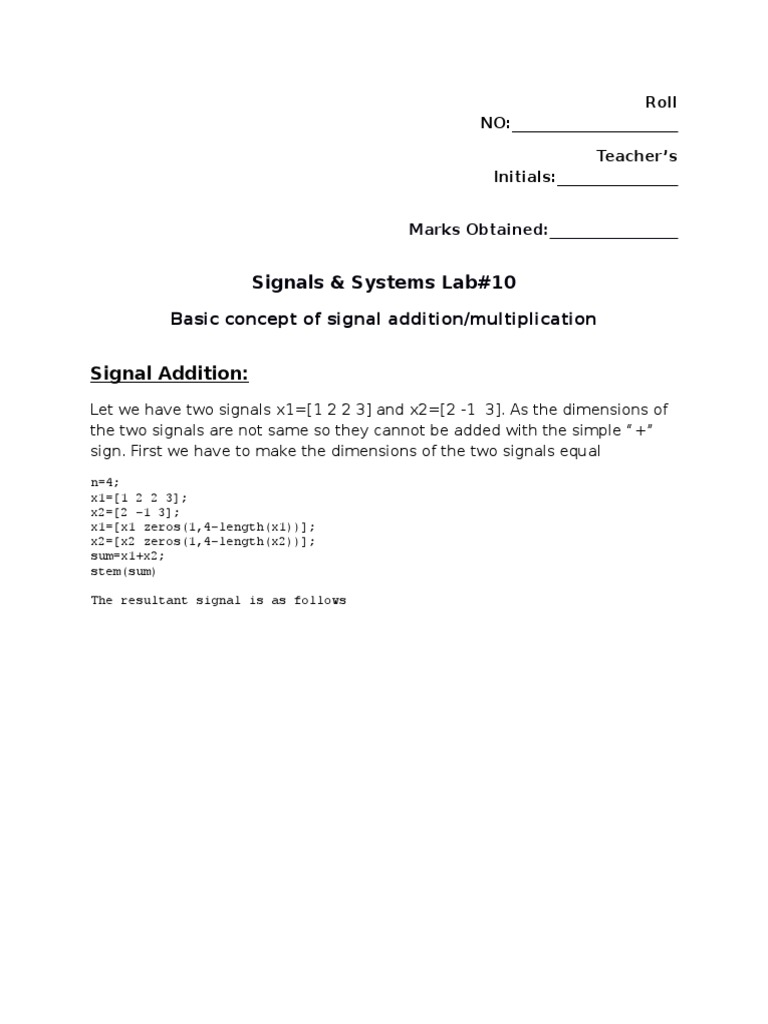

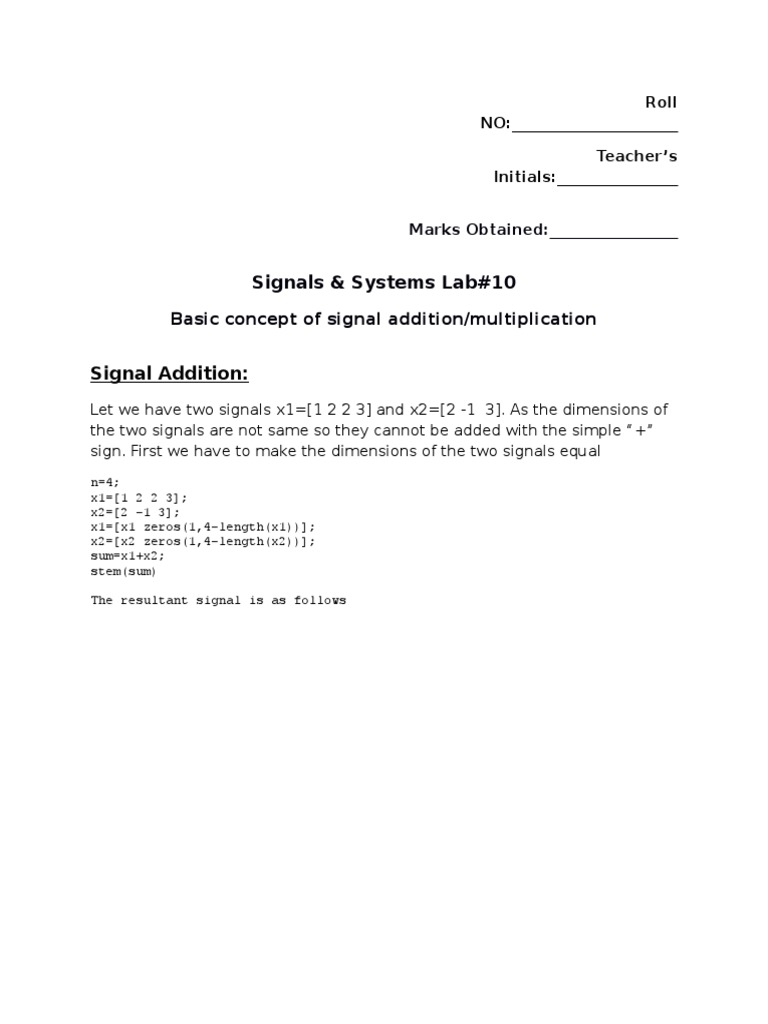

Signals & Systems Lab#10

Basic concept of signal addition/multiplication

Signal Addition:
Let we have two signals x1=[1 2 2 3] and x2=[2 -1 3]. As the dimensions of
the two signals are not same so they cannot be added with the simple +
sign. First we have to make the dimensions of the two signals equal
n=4;
x1=[1 2 2 3];
x2=[2 -1 3];
x1=[x1 zeros(1,4-length(x1))];
x2=[x2 zeros(1,4-length(x2))];
sum=x1+x2;
stem(sum)
The resultant signal is as follows

5
4.5
4
3.5
3
2.5
2
1.5
1
0.5
0

0.5

1.5

2.5

Task(5.1): Write a code in Matlab to generate and plot the following

sequence.
Y[n]= 2(n+2) (n-4)
Take the interval -2 n 4.
First plot the signal Y[n] without using matlab.

Task(5.2): First write the equation of the following figure and then
write the matlab code to plot it with the help of its equation.
6

0.5

1.5

2.5

3.5

4.5

Task(5.3) : With the help of Matlab, first plot the following

sequence .You have to take the interval by observing the
sequence. Technique used for signal addition should be used
for plotting the sequence below.
y[ n] =2 [n] + 5 [ n 3] + 2 [n +1] + 7
[n + 2]

Task(5.4): Let x1={1, 2, 3, 4, 5, 6}, n1= {0, 1, 2, 3, 4, 5},

x2 ={-1, -2, -3, -4, -5, -6} ,n2 = {-5, -4, -3, -2, -1, 0}
Determine and plot the following sequences

y = x1+x2
z = x1 * x2

Task(5.5) Write the Matlab code for the following sequence and show the
resultant figure.
Take the interval 0 n 20.
Y[n]= u[n] + u[n-10]

Task(5.6) Write the Matlab code for the following equation and show
the resultant figure. You have to take the interval by observing the
equation
Y[n] = u[n] + u[n-1] + u[n-2] + u[n-3] + u[n-4] + u[n-5]

Task(5.7) Implement the following equation with the help of Matlab

and plot the resultant figure.
Y[n] = u[n] + u[n-1] + u[n-2] - u[n-3] - u[n-4] - u[n-5]
