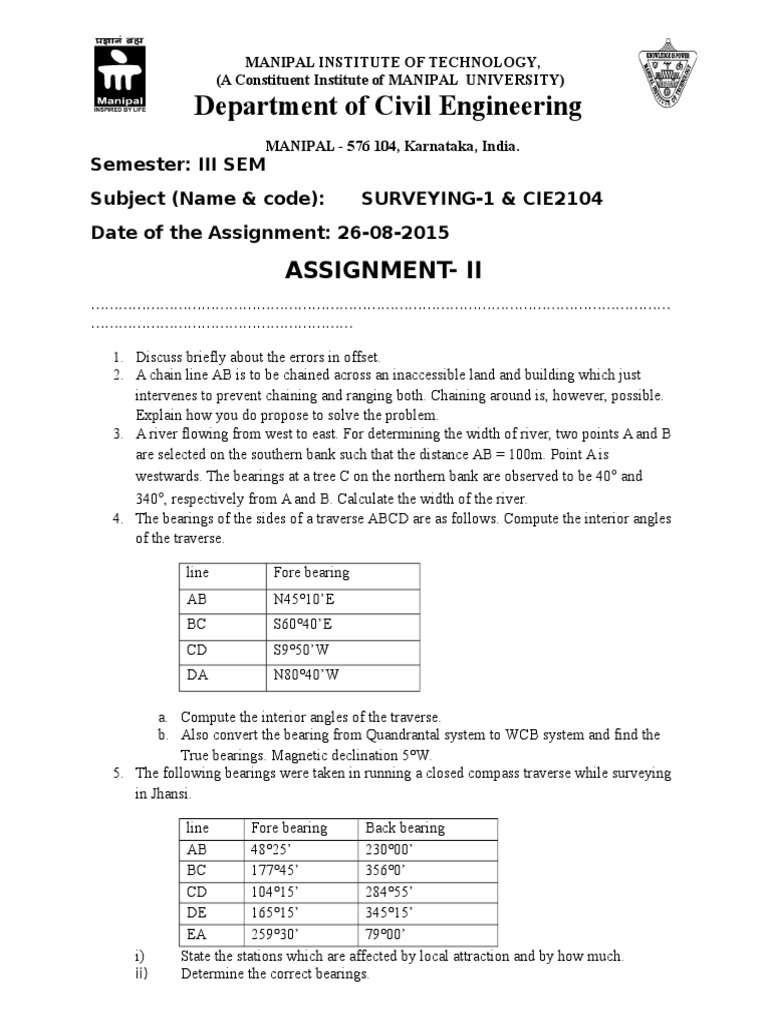

MANIPAL INSTITUTE OF TECHNOLOGY,

(A Constituent Institute of MANIPAL UNIVERSITY)

Department of Civil Engineering

MANIPAL - 576 104, Karnataka, India.

Semester: III SEM

Subject (Name & code):

SURVEYING-1 & CIE2104

Date of the Assignment: 26-08-2015

ASSIGNMENT- II

1. Discuss briefly about the errors in offset.

2. A chain line AB is to be chained across an inaccessible land and building which just
intervenes to prevent chaining and ranging both. Chaining around is, however, possible.
Explain how you do propose to solve the problem.
3. A river flowing from west to east. For determining the width of river, two points A and B
are selected on the southern bank such that the distance AB = 100m. Point A is
westwards. The bearings at a tree C on the northern bank are observed to be 40 and
340, respectively from A and B. Calculate the width of the river.
4. The bearings of the sides of a traverse ABCD are as follows. Compute the interior angles
of the traverse.
line

Fore bearing

AB

N4510E

BC

S6040E

CD

S950W

DA

N8040W

a. Compute the interior angles of the traverse.

b. Also convert the bearing from Quandrantal system to WCB system and find the
True bearings. Magnetic declination 5W.
5. The following bearings were taken in running a closed compass traverse while surveying
in Jhansi.

i)
ii)

line
Fore bearing
Back bearing
AB
4825
23000
BC
17745
3560
CD
10415
28455
DE
16515
34515
EA
25930
7900
State the stations which are affected by local attraction and by how much.
Determine the correct bearings.
