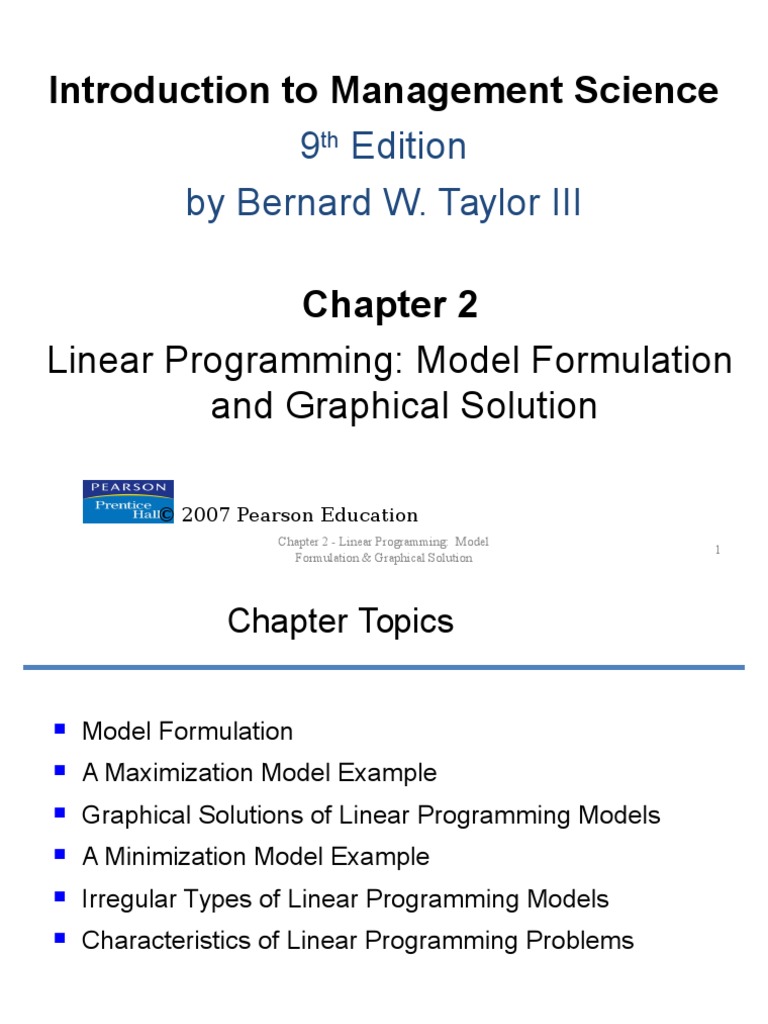

Introduction to Management Science
9th Edition
by Bernard W. Taylor III
Chapter 2
Linear Programming: Model Formulation
and Graphical Solution
2007 Pearson Education
Chapter 2 - Linear Programming: Model
Formulation & Graphical Solution
Chapter Topics
Model Formulation
A Maximization Model Example
Graphical Solutions of Linear Programming Models
A Minimization Model Example
Irregular Types of Linear Programming Models
Characteristics of Linear Programming Problems

Linear Programming: An Overview
Objectives of business decisions frequently involve

maximizing profit or minimizing costs.
Linear programming is an analytical technique in which

linear algebraic relationships represent a firms decisions,
given a business objective, and resource constraints.
Steps in application:
Identify problem as solvable by linear programming.
Formulate a mathematical model of the unstructured

problem.
Solve the model.
Implementation
Model Components
Decision variables - mathematical symbols
representing levels of activity of a firm.
Objective function - a linear mathematical relationship
describing an objective of the firm, in terms of decision
variables - this function is to be maximized or minimized.
Constraints requirements or restrictions placed on the
firm by the operating environment, stated in linear
relationships of the decision variables.
Parameters - numerical coefficients and constants used
in the objective function and constraints.
Summary of Model Formulation Steps
Step 1 : Clearly define the decision variables

Step 2 : Construct the objective function
Step 3 : Formulate the constraints

LP Model Formulation
A Maximization Example (1 of 3)
Product mix problem - Beaver Creek Pottery Company
How many bowls and mugs should be produced to
maximize profits given labor and materials constraints?
Product resource requirements and unit profit:


Resource
Availability:
40 hrs of labor per day

120 lbs of clay
Decision
Variables:
x1 = number of bowls to produce per day

x2 = number of mugs to produce per day
Objective
Function:
Maximize Z = $40x1 + $50x2

Where Z = profit per day
Resource
Constraints:
1x1 + 2x2 40 hours of labor

4x1 + 3x2 120 pounds of clay
Non-Negativity
Constraints:
x1 0; x2 0
Complete Linear Programming Model:
subject to:
1x1 + 2x2 40
4x2 + 3x2 120
x1, x2 0

Feasible Solutions
A feasible solution does not violate any of the constraints:

Example x1 = 5 bowls
x2 = 10 mugs
Z = $40x1 + $50x2 = $700
Labor constraint check:
1(5) + 2(10) = 25 < 40 hours, within constraint
Clay constraint check:
4(5) + 3(10) = 70 < 120 pounds, within constraint

10
Infeasible Solutions
An infeasible solution violates at least one of the

constraints:
Example x1 = 10 bowls
x2 = 20 mugs
Z = $1400
Labor constraint check:
1(10) + 2(20) = 50 > 40 hours, violates constraint

11
Graphical Solution of LP Models

Graphical solution is limited to linear programming
models containing only two decision variables (can be
used with three variables but only with great difficulty).
Graphical methods provide visualization of how a
solution for a linear programming problem is obtained.

12
Coordinate Axes
Graphical Solution of Maximization Model (1 of 12)

subject to: 1x1 + 2x2 40
4x2 + 3x2 120
x1, x2 0
Figure
2.2 Coordinates for Graphical Analysis
13
Labor Constraint

4x2 + 3x2 120
x1, x2 0
Figure 2.3 Graph of Labor Constraint

14
Labor Constraint Area


4x2 + 3x2 120
x1, x2 0
Figure 2.4 Labor Constraint Area

15
Clay Constraint Area


4x2 + 3x2 120
x1, x2 0
Figure 2.5 Clay Constraint Area

16
Both Constraints

4x2 + 3x2 120
x1, x2 0
Figure 2.6 Graph of Both Model Constraints

17
Feasible Solution Area


4x2 + 3x2 120
x1, x2 0
Figure 2.7 Feasible Solution Area

18
Objective Function Solution = $800


4x2 + 3x2 120
x1, x2 0
Figure
2.8 Objection Function Line for Z = $800
19
Alternative Objective Function Solution Lines


4x2 + 3x2 120
x1, x2 0
Figure
2.9 Alternative Objective Function Lines
20
Optimal Solution

4x2 + 3x2 120
x1, x2 0
Figure 2.10 Identification of Optimal Solution

21

Optimal Solution Coordinates


4x2 + 3x2 120
x1, x2 0
Figure 2.11 Optimal Solution Coordinates

22
Extreme (Corner) Point Solutions


4x2 + 3x2 120
x1, x2 0
Figure 2.12 Solutions at All Corner Points

23
Optimal Solution for New Objective Function


4x2 + 3x2 120
x1, x2 0
Figure
Solution with Z = 70x1 + 2420x2
Chapter 22.13
- Linear Optimal
Programming: Model
A Minimization Example (1 of 7)
Two brands of fertilizer available - Super-Gro, Crop-Quick.
Field requires at least 16 pounds of nitrogen and 24 pounds

of phosphate.
Super-Gro costs $6 per bag, Crop-Quick $3 per bag.
Problem: How much of each brand to purchase to minimize

total cost of fertilizer given following data ?

25

26
Decision Variables:
x1 = bags of Super-Gro
x2 = bags of Crop-Quick
The Objective Function:
Minimize Z = $6x1 + 3x2
Where: $6x1 = cost of bags of Super-Gro
$3x2 = cost of bags of Crop-Quick
Model Constraints:
2x1 + 4x2 16 lb (nitrogen constraint)
4x1 + 3x2 24 lb (phosphate constraint)
x1, x2 0 (non-negativity constraint)
27
LP Model Formulation and Constraint Graph

Minimize Z = $6x1 + $3x2

4x2 + 3x2 24
x1, x2 0
Figure
2.16 Graph of Both Model Constraints
28
Feasible Solution Area


4x2 + 3x2 24
x1, x2 0
Figure 2.17 Feasible Solution Area

29
Optimal Solution Point


4x2 + 3x2 24
x1, x2 0
Figure 2.18 Optimum Solution Point

30
Irregular Types of Linear Programming Problems
For some linear programming models, the general rules

do not apply.
Special types of problems include those with:
Multiple optimal solutions
Infeasible solutions
Unbounded solutions

31
Multiple Optimal Solutions

Beaver Creek Pottery Example
Objective function is parallel to

to a constraint line.
Maximize Z=$40x1 + 30x2
4x2 + 3x2 120
x1, x2 0
Where:
x1 = number of bowls
x2 = number of mugs
Figure Chapter
2.202 - Linear
Example
with Multiple Optimal Solutions
Programming: Model
32
An Infeasible Problem
Every possible solution

violates at least one
constraint:
Maximize Z = 5x1 + 3x2
x1 4
x2 6
x1, x2 0
Figure 2.21 Graph of an Infeasible Problem

33
An Unbounded Problem
Value of objective function

increases indefinitely:
subject to: x1 4
x2 2
x1, x2 0
Figure
2.22 Graph of an Unbounded Problem
34
Characteristics of Linear Programming Problems
A linear programming problem requires a decision - a

choice amongst alternative courses of action.
The decision is represented in the model by decision
variables.
The problem encompasses a goal, expressed as an
objective function, that the decision maker wants to
achieve.
Constraints exist that limit the extent of achievement of
the objective.
The objective and constraints must be definable by
linear mathematical functional relationships.
35
Properties of Linear Programming Models
Proportionality - The rate of change (slope) of the

objective function and constraint equations is constant.
Additively - Terms in the objective function and
constraint equations must be additive.
Divisibility -Decision variables can take on any
fractional value and are therefore continuous as opposed
to integer in nature.
Certainty - Values of all the model parameters are
assumed to be known with certainty (non-probabilistic).

36
Problem Statement
Example Problem No. 1 (1 of 3)
Hot dog mixture in 1000-pound batches.
Two ingredients, chicken ($3/lb) and beef ($5/lb).
Recipe requirements:
at least 500 pounds of chicken
at least 200 pounds of beef
Ratio of chicken to beef must be at least 2 to 1.
Determine optimal mixture of ingredients that will minimize
costs.

37
Solution
Step 1:
Identify decision variables.
x1 = lb of chicken in mixture (1000 lb.)
x2 = lb of beef in mixture (1000 lb.)
Step 2:
Formulate the objective function.
where Z = cost per 1,000-lb batch
$3x1 = cost of chicken
$5x2 = cost of beef
38
Solution
Step 3:
Establish Model Constraints
x1 + x2 = 1,000 lb
x1 500 lb of chicken
x2 200 lb of beef
x1/x2 2/1 or x1 - 2x2 0
x1, x2 0
The Model: Minimize Z = $3x1 + 5x2
subject to: x1 + x2 = 1,000 lb
x1 50
x2 200
x1 - 2x2 0
Chapterx2 -,x
Linear Programming:
Model
0
1 2&
Formulation
Graphical Solution
39
Solve the following model

graphically:
subject to:
x1 + 2x2 10
6x1 + 6x2 36
x1 4
x1, x2 0
Step 1: Plot the constraints

as equations
Figure 2.23 Constraint Equations

40

subject to:
x1 + 2x2 10
6x1 + 6x2 36
x1 4
x1, x2 0
Step 2: Determine the

feasible solution space
Figure 2.24Chapter
Feasible
Solution Space and Extreme Points
2 - Linear Programming: Model
41

subject to:
x1 + 2x2 10
6x1 + 6x2 36
x1 4
x1, x2 0
Step 3 and 4: Determine

the solution points and
optimal solution
Figure 2.25 Optimal Solution Point

42

9 Edition by Bernard W. Taylor III: Introduction To Management Science

Uploaded by

Document Information

Original Title

Copyright

Available Formats

Share this document

Share or Embed Document

Sharing Options

Did you find this document useful?

Is this content inappropriate?

Copyright:

Available Formats

9 Edition by Bernard W. Taylor III: Introduction To Management Science

Uploaded by

Copyright:

Available Formats

Introduction to Management Science

A Maximization Model Example

Graphical Solutions of Linear Programming Models

A Minimization Model Example

Irregular Types of Linear Programming Models

Characteristics of Linear Programming Problems

Chapter 2 - Linear Programming: Model

Linear Programming: An Overview

Objectives of business decisions frequently involve

Linear programming is an analytical technique in which

Identify problem as solvable by linear programming.

Formulate a mathematical model of the unstructured

Solve the model.

Summary of Model Formulation Steps

Step 1 : Clearly define the decision variables

Chapter 2 - Linear Programming: Model

Chapter 2 - Linear Programming: Model

Chapter 2 - Linear Programming: Model

40 hrs of labor per day

x1 = number of bowls to produce per day

Maximize Z = $40x1 + $50x2

1x1 + 2x2 40 hours of labor

Chapter 2 - Linear Programming: Model

A feasible solution does not violate any of the constraints:

Chapter 2 - Linear Programming: Model

An infeasible solution violates at least one of the

Chapter 2 - Linear Programming: Model

Graphical Solution of LP Models

Chapter 2 - Linear Programming: Model

Maximize Z = $40x1 + $50x2

Maximize Z = $40x1 + $50x2

Figure 2.3 Graph of Labor Constraint

Chapter 2 - Linear Programming: Model

Labor Constraint Area

Maximize Z = $40x1 + $50x2

Figure 2.4 Labor Constraint Area

Chapter 2 - Linear Programming: Model

Clay Constraint Area

Maximize Z = $40x1 + $50x2

Figure 2.5 Clay Constraint Area

Chapter 2 - Linear Programming: Model

Maximize Z = $40x1 + $50x2

Figure 2.6 Graph of Both Model Constraints

Chapter 2 - Linear Programming: Model

Feasible Solution Area

Maximize Z = $40x1 + $50x2

Figure 2.7 Feasible Solution Area

Chapter 2 - Linear Programming: Model

Objective Function Solution = $800

Maximize Z = $40x1 + $50x2

Alternative Objective Function Solution Lines

Maximize Z = $40x1 + $50x2

Maximize Z = $40x1 + $50x2

Figure 2.10 Identification of Optimal Solution

Chapter 2 - Linear Programming: Model

Optimal Solution Coordinates

Maximize Z = $40x1 + $50x2

Figure 2.11 Optimal Solution Coordinates

Chapter 2 - Linear Programming: Model

Extreme (Corner) Point Solutions

Maximize Z = $40x1 + $50x2

Figure 2.12 Solutions at All Corner Points

Chapter 2 - Linear Programming: Model
