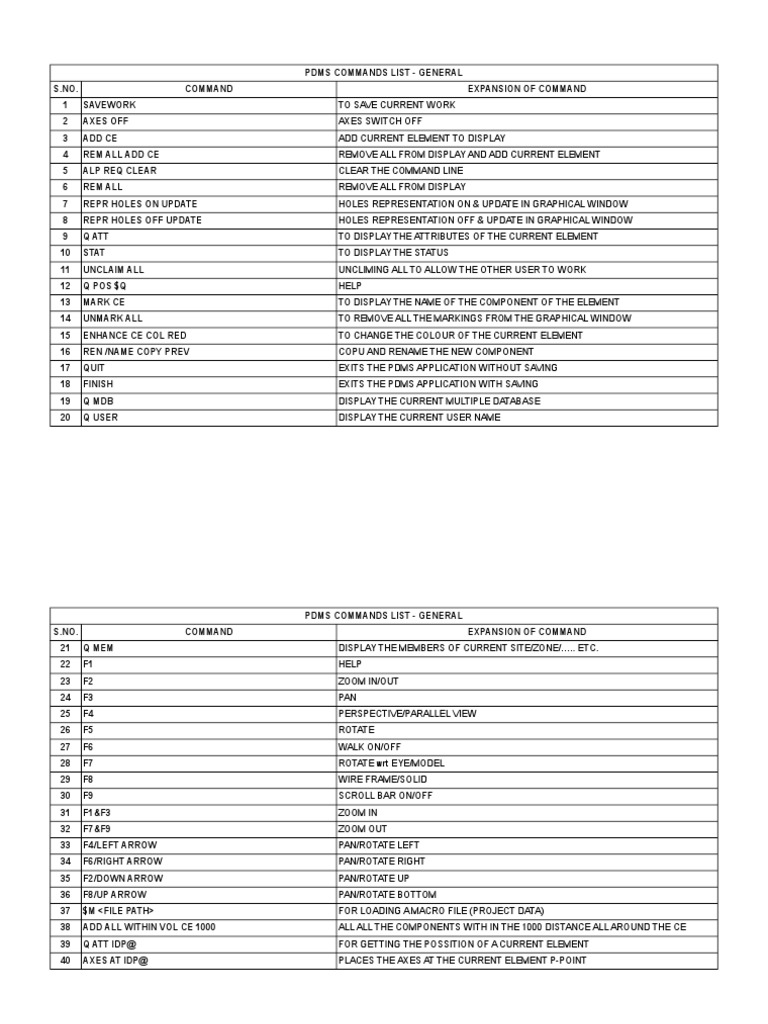

PDMS COMMANDS LIST - GENERAL

S.NO.

COMMAND

EXPANSION OF COMMAND

SAVEWORK

TO SAVE CURRENT WORK

AXES OFF

AXES SWITCH OFF

ADD CE

ADD CURRENT ELEMENT TO DISPLAY

REM ALL ADD CE

REMOVE ALL FROM DISPLAY AND ADD CURRENT ELEMENT

ALP REQ CLEAR

CLEAR THE COMMAND LINE

REM ALL

REMOVE ALL FROM DISPLAY

REPR HOLES ON UPDATE

HOLES REPRESENTATION ON & UPDATE IN GRAPHICAL WINDOW

REPR HOLES OFF UPDATE

HOLES REPRESENTATION OFF & UPDATE IN GRAPHICAL WINDOW

Q ATT

TO DISPLAY THE ATTRIBUTES OF THE CURRENT ELEMENT

10

STAT

TO DISPLAY THE STATUS

11

UNCLAIM ALL

UNCLIMING ALL TO ALLOW THE OTHER USER TO WORK

12

Q POS $Q

HELP

13

MARK CE

TO DISPLAY THE NAME OF THE COMPONENT OF THE ELEMENT

14

UNMARK ALL

TO REMOVE ALL THE MARKINGS FROM THE GRAPHICAL WINDOW

15

ENHANCE CE COL RED

TO CHANGE THE COLOUR OF THE CURRENT ELEMENT

16

REN /NAME COPY PREV

COPU AND RENAME THE NEW COMPONENT

17

QUIT

EXITS THE PDMS APPLICATION WITHOUT SAVING

18

FINISH

EXITS THE PDMS APPLICATION WITH SAVING

19

Q MDB

DISPLAY THE CURRENT MULTIPLE DATABASE

20

Q USER

DISPLAY THE CURRENT USER NAME

PDMS COMMANDS LIST - GENERAL

S.NO.

COMMAND

EXPANSION OF COMMAND

21

Q MEM

DISPLAY THE MEMBERS OF CURRENT SITE/ZONE/.. ETC.

22

F1

HELP

23

F2

ZOOM IN/OUT

24

F3

PAN

25

F4

PERSPECTIVE/PARALLEL VIEW

26

F5

ROTATE

27

F6

WALK ON/OFF

28

F7

ROTATE wrt EYE/MODEL

29

F8

WIRE FRAME/SOLID

30

F9

SCROLL BAR ON/OFF

31

F1&F3

ZOOM IN

32

F7&F9

ZOOM OUT

33

F4/LEFT ARROW

PAN/ROTATE LEFT

34

F6/RIGHT ARROW

PAN/ROTATE RIGHT

35

F2/DOWN ARROW

PAN/ROTATE UP

36

F8/UP ARROW

PAN/ROTATE BOTTOM

37

$M <FILE PATH>

FOR LOADING A MACRO FILE (PROJECT DATA)

38

ADD ALL WITHIN VOL CE 1000

ALL ALL THE COMPONENTS WITH IN THE 1000 DISTANCE ALL AROUND THE CE

39

Q ATT IDP@

FOR GETTING THE POSSITION OF A CURRENT ELEMENT

40

AXES AT IDP@

PLACES THE AXES AT THE CURRENT ELEMENT P-POINT

PDMS COMMANDS LIST - GENERAL

S.NO.

COMMAND

EXPANSION OF COMMAND

41

AXES ON

MAKE THE AXES TO DISPLAY

42

CHOO ALL

RESELECT

43

DIR N 45 E

TO ORIENT THE COMPONENT IN THE DIRECTION OF N 45 E

44

Q IDP@ WRT /*

DETAILS WITH RESPECT TO WORLD

45

NEW EQUI /<NEW NAME> COPY /<OLD NAME>

REN /<OLD NAME> /<NEW NAME>

FOR COPYING & RENAMING AN EQUIPMENT AS NEW

46

REPR OBST ON UPDATE

MAKE THE OBSTRUCTION AREA TO DISPLAY

47

LOCK ALL

LOCK ANY HIERARCHIY

48

MATCH WITH (NAME,'*ABC*')

RULE FOR MAKING MTO REPORT

49

Q MEM

TO QUERY THE MEMBER

50

Q OWN

TO QUERY THE OWNER

51

THRO CE

THROUGH CURRENT ELEMENT

52

THRO ID@

THROUGH ID CURSOR AT

53

THRO IDP@

THROUGH ID "P" POINT

54

Q U IN /*

TO FIND THE ELEVATION OF ORIGIN WITH RESPECT TO WORLD

55

Q SESSION

TO FIND OUT MDB, UPDATE DATE, USER NAME

56

Q TEMP

TO QUERY THE TEMPERATURE

57

REM ALL

TO REMOVE ALL FROM DISPLAY

58

Q DRAWLIST

SUMMARY OF THE SITE

59

Q NAME

TO FIND THE SELECTED OBJECT NAME

60

Q XYPOS

TO KNOW THE XY POSITION OF THE VIEW

PDMS COMMANDS LIST - GENERAL

S.NO.

COMMAND

EXPANSION OF COMMAND

61

UPDATE ALL

TO UPDATE THE ALL VIEWS OF THE SHEET AS PER THE DESIGN MODIFICATION

62

AT @

FOR RELOCATING THE VIEW

63

BY @

FOR RELOCATING THE VIEW WITH BASE POINT

64

LVISI T

VIEW DISPLAY ON

65

LVISI F

VIEW DISPLAY OFF

66

LFRA T

BORDERS OF VIEW ON

67

LFRA F

BORDERS OF VIEW OFF

68

DTOFFSET

FOR MOVING DIMTEXT LOCATION

69

PLTXT

PROJECTION LINE TEXT

70

PLTXT '#DIM~0'

FOR GIVING THE NOZZLE ORIENTATION

71

PLTXT '~C OF #OWN(C2:)'

TO MARK CENTER LINE OF EQUIPMENT

72

PKDIST

CLEARANCE FROM THE ORIGIN

73

PKEY TOS

SET THE EXTENSION LINE AS TOS

74

PLTXT 'BOP EL+ #POSU(C2:)'

TO MARK BOP OF PIPE

75

PLTXT 'TOS EL+ #POSU(C2:)'

TO MARK TOS OF STRUCTURE

76

NEW GLAB COPY PREV DDNM ID@

COPY PREVIOUS TAG

77

BTEXT '#NAME (C2:)'

FOR CHANGING LABLE TEXT (USE REQUIRED OPTION IN PLACE OF NAME)

78

SPREAD REMOTE

FOR SPREADING THE LABLE TAGS OUTSIDE THE VIEW LIMITS

79

ADEGREES 90

TO ROTATE THE LABLE TAG BY 90 DEG.

PDMS COMMANDS LIST - PIPING

S.NO.

COMMAND

EXPANSION OF COMMAND

DELETE BRAN

DELETE BRANCH

Q HSTU

TO DISPLAY BRANCH HEAD SIDE TUBE ATTRIBUTES

Q LSTU

TO DISPLAY COMPONENT LEAVE SIDE TUBE ATTRIBUTES

Q ABORE

TO DISPLAY ARRIVE BORE OF A COMPONENT

Q LBORE

TO DISPLAY LEAVE SIDE BORE OF A COMPONENT

ADD HREF TREF

ADD HEAD & TAIL REFERENCE

Q HBORE

TO DISPLAY THE HEAD SIDE BORE OF A BRANCH

Q TBORE

TO DISPLAY THE TAIL SIDE BORE OF A BRANCH

Q SPRE

TO DISPLAY THE SPECIFICATION OF THE COMPONENT

10

Q PSPEC

TO DISPLAY THE SPECIFICATION OF THE PIPE

11

NEW ELBO CHOO

CREATE NEW ELBO

12

NEW ELBO SEL WITH STYP EA

TO CREATE THE ELBO WITH SPECIFIC SELECTION TYPE

13

AXES AT HPOS

AXES AT HEAD POSSITION OF THE BRANCH

14

AXES AT TPOS

AXES AT TAIL POSSITION OF THE BRANCH

15

NEX TUBI

ASKING FOR TUBE BEING ON THE COMPONENT

16

Q ITLE

TO DISPLAY THE LENGTH OF THE TUBE BETWEEN TWO COMPONENTS

17

Q HREF

TO DISPLAY THE HEAD REFERENCE OF A BRANCH

18

Q TREF

TO DISPLAY THE TAIL REFERENCE OF A BRANCH

19

Q DIR

TO DISPLAY THE DIRECTION OF THE SELECTED COMPONENT

20

CONN PH TO FIR MEM

CONNECT BRANCH HEAD TO THE FIRST MEMBER OF THE BRANCH

PDMS COMMANDS LIST - PIPING

S.NO.

COMMAND

EXPANSION OF COMMAND

21

CONN PT TO LAS MEM

CONNECT THE BRANCH TAIL TO THE LAST MEMBER OF THE BRANCH

22

Q ORI

TO DISPLAY THE ORIENTATION OF SELECTED COMPONENT

23

DIST

GIVING THE DISTANCE BETWEEN TWO COMPONENT CENTERS

24

CLEA (SPOOL)

GIVING THE SPOOL DISTANCE BETWEEN TWO COMPONENTS

25

Q CATREF

TO DISPLAY THE CATALOGUE REFERENCE AT COMPONENT LEVEL

26

CONN

CONNECT

27

FCONN

FORCE CONNECT

28

Q STYP

TO DISPLAY THE COMPONENT SELECTION TYPE

29

Q DTXR

TO DISPLAY THE DETAIL TEXT(DESCRIPTION OF THE COMPONENT

30

DRAG BY E 1000

STRECH THE COMPONENT BY EAST 1000 (NOT PREFERED)

31

Q MTXX

TO DISPLAY THE MATERIAL OF THE COMPONENT

32

Q MODE

TO DISPLAY THE MODE OF DIRECTION (FOR/BACK)

33

FOR

TO SET THE FORWARD MODE

34

BACK

TO SET THE BACKWARD MODE

35

FIRST MEM

TO NAVIGATE THE FIRST MEMBER

36

LAST MEM

TO NAVIGATE THE LAST MEMBER

37

FIRST FLAN

TO NAVIGATE THE FIRST FLANGE IN HIERARCHY

38

Q PARA

TO DISPLAY THE PARAMETERS

39

Q ACONN

TO DISPLAY THE ARRIVE CONNECTION DETAIL OF A COMPONENT

40

Q LCONN

TO DISPLAY THE LEAVE CONNECTION DETAILS OF A COMPONENT

PDMS COMMANDS LIST - PIPING

S.NO.

COMMAND

EXPANSION OF COMMAND

41

DIR TOW NEX

DIRECTION TOWARDS THE NEXT COMPONENT

42

Q REF

TO DISPLAY REFERENCE

43

INCL

INCLUDE

44

ORI AND P3 IS UP

ORIENT P3 OF TEE TO UP (SPECIFIED DIRECTION)

45

OWN

NAVIGATE OWNER

46

GOTO OWN

GO TO OWNER OF THE SELECTED COMPONENT

47

Q ABOP/LBOP

DETAILS OF THE ARRIVE/LEAVE BOPTOM OF PIPE

48

Q ANGLE

DETAILS OF A ANGLE OF AN ELBO

49

Q ATLE

LENGTH OF FIRST TUBE OF A BRANCH

50

ATTYPE CCNN

COMMENT ATTACHMENT WITHOUT DIMENSION

51

ATTYPE CCCC

COMMENT ATTACHMENT WITH DIMENSION

52

ATTYPE XXXX

ATTA FOR SETTING THE ISOMETRIC LIMIT

53

CH CE

CHECK CURRENT ELEMENT (FOR CONSISTENCY CHECK)

54

DIR TOW NEXT ELBO

ALIGN A ELBO WITH THE NEXT ELBO

55

DIR TOW ID@

ALIGN THE ELBOW

56

EXTEND 100 START/END

EXTEND BY 100 THE START/END OF A CROSS MEMBER

57

Q HCON/TCON

DETAILS OF HEAD/TAIL CONNECTION OF A BRANCH

58

Q HDIR

DIRECTION OF THE FLOW FROM THE BRANCH HEAD

59

Q HPOS/TPOS

DETAILS OF HEAD/TAIL POSSITION OF A BRANCH

60

Q ISPE

INSULATION SPECIFICATION

PDMS COMMANDS LIST - PIPING

S.NO.

COMMAND

EXPANSION OF COMMAND

61

ISPEC NULREF

FOR REMOVING INSULATION

62

SPKBRK T

FOR REMOVING INSULATION (USE IN CASE FOF ATTA)

63

LOOSE

USED BY ISODRAFT WHERE THE FLANGE IS SUPPLIED LOOSE

64

MTOC DOTD

MTO COMPONENT DOTTED WITH DIMENSION

65

MTOC DOTU

MTO COMPONENT DOTTED WITH OUT DIMENSION

66

MTOC OFF

MTO COMPONENT OFF

67

NEX CONN

NEXT CONNECT

68

NEX THRO CE

MOVE THE CURRENT COMPONET TO NEXT

69

ORI AND P3 IS TOW ID@ & DIR TOW ID@

ALIGNING THE 3RD P-POINT OF A TEE TOWARDS NEXT ELBOW

70

Q P3

DETAILS OF P-POINT P3 (IN CASE OF TEE ONLY)

71

Q PA/P1

DETAILS OF THE P-POINT 1

72

Q PL

DERAILS OF THE P-POINT 2

73

STEXT 'TEXT'

SETTING THE COMMENT TEXT

74

TCONN OPEN

TAIL CONNECTION TYPE OPEN (CE SHOULD BE BRANCH)

75

TDIR

DIRECTION OF THE FLOW FROM THE BRANCH TAIL

76

ISPEC /W

TO GIVE THE INSULATION

77

Q LBORE

TO QUERY LEAVE BORE

78

Q TBORE

TO QUERY THE TAIL BORE

79

THRO PH

THROUGH PIPE HEAD

80

THRO PREV

THROUGH PREVIOUS

PDMS COMMANDS LIST - PIPING

S.NO.

COMMAND

EXPANSION OF COMMAND

81

THRO PT

THROUGH PIPE TAIL

82

Q TPOS

TO QUERY TAIL POSITION

83

Q HCON

TO QUERY THE HEAD CONNECTION

84

Q TCON

TO QUERY THE TAIL CONNECTION

85

Q ACON

TO QUERY ARRIVE CONNECTION

86

Q LCON

TO QUERY LEAVE CONNECTION

87

ATTYPE FLOW

TO CREATE FLOW DIRECTION OF ATTACHMENT

88

DIR N

DIRECTION OF COMPONENT TOWARDS NORTH

89

BACK CONN

BACKWARD CONNECTION

90

MTOC UNSET

TO FREEZE THE COMPONENT FROM MTO REPORT

PDMS COMMANDS LIST - EQUIPMENT

S.NO.

COMMAND

EXPANSION OF COMMAND

Q PARA

TO DISPLAY THE PARAMETERS

Q CATREF

TO DISPLAY THE CATELOGUE REFERENCE

Q SPRE

TO DISPLAY THE SPECIFICATION REFERENCE

Q CREF

TO DISPLAY THE CONNECTION REFERENCE

ADD CREF

TO ADD THE CONNECTION REFERENCE

NEW BOX XLEN 100 YLEN 100 ZLEN 100

TO CREATE NEW BOX WITH X-LENGTH 100, Y-LENGTH 100 & Z-LENGTH 100

NEW CYLI DIA HEI

TO CREATE NEW CYLINDER BY SPECIFYING DIAMETER AND HEIGHT

NEW SITE

TO CREATE NEW SITE

NEW ZONE

TO CREATE NEW ZONE

10

NEW EQUI

TO CREATE NEW EQUIPMENT

11

NEW SUBE

TO CREATE NEW SUB EQUIPMENT

12

NEW STRU

CREATE NEW STRUCTURAL

13

NEW FRMW

TO CREATE NEW FRAMEWORK

14

NEW SBFR

TO CREATE SUB FRAMEWORK

15

NEW CYLI COPY PREV BY N 1000

TO CREATE NEW CYLINDER FROM PREVIOUS CYLINDER BY NORTH 1000

16

Q POS IDP@

FOR THE POSITION OF IDENTIFIED P-POINT

17

AXES AT P1

AXES AT "P" POINT 1

18

AXES AT P2

AXES AT "P" POINT 2

19

NEXT AXES AT CE

AXES AT NEXT CURRENT ELEMENT IN HIERARCHIY

20

NEW VERT COPY PREV

COPYING THE PREVIOUS VERTEX

21

DELETE VERT

TO DELETE THE VERTEX

22

MARK WITH (NAM) ALL NOZZ FOR CE

TO MARK NOZZLE NAME

23

Q LEVEL

TO QUERY THE CURRENT ELEMENT LEVEL

PDMS COMMANDS LIST - STRUCTURAL

S.NO.

COMMAND

EXPANSION OF COMMAND

AXES AT CE

AXES AT CURRENT ELEMENT

Q CUTL

CUT LENGTH

Q BANG

TO DISPLAY THE BETA ANGLE

Q POSS WRT /*

TO DISPLAY THE START POSITION wrt WORLD

Q POSE WRT /*

TO DISPLAY THE END POSITION wrt WORLD

Q ORI

TO DISPLAY THE ORIENTATION

Q POS WRT /*

TO DISPLAY THE POSITION wrt WORLD

BY W 1000 WRT /*

MOVE THE SELECTED ITEM BY WEST 1000 wrt WORLD

EXT END 300

TO EXTEND THE END BY 300

10

Q NAME

TO DISPLAY THE NAME

11

NAME /NEW NAME

TO REMANE THE OLD NAME

12

Q CE

DISPLAY THE CURRENT ELEMENT

13

Q MEM

TO DISPLAY THE MEMBER LIST

14

Q DESC

TO DISPLAY THE GRID MARK & ALSO CHANGE THE GRID MARK

15

MARK WITH (DESC) ALL SCTN FOR CE

TO DISPAY ALL THE GRID MARKINGS

16

Q JUS

TO DISPLAY THE STEEL JUSTIFICATION

17

UNLOCK ALL

TO UNLOCK

18

AXES AT POSE

AXES AT END POSSITION

19

AXES AT POSS

AXES AT START POSSITION

20

CTYE

CONNECTION TYPE AT END

PDMS COMMANDS LIST - STRUCTURAL

S.NO.

COMMAND

EXPANSION OF COMMAND

21

CTYS

CONNECTION TYPE AT START

22

DESP

DESIGN PARAMETER

23

DRNE

CUTTING PLANE DIRECTION AT END

24

DRNS

CUTTING PLANE DIRECTION AT START

25

EREEL

END RELEASE

26

JLIN

JOINT LINE

27

JOLE

JOINT REFERENCE AT END

28

JOLS

JOINT REFERENCE AT START

29

JUSLINE / JUSL

JUSTIFICATION LINE

30

NPOS

NODE POSITION

31

SREL

START RELEASE

32

ZDIS

DISTANCE ALONG Z-AXIS OF OWNING SECTION

33

JUSLINE TOS

TO MATCH THE TOP OF THE STRUCTURE WITH THE EXISTING OR SELECTED STRUCTE

34

JUSLINE BOS

TO MATCH THE BOTTOM OF THE STRUCTURE WITH THE EXISTING OR SELECTED STRUCTE
