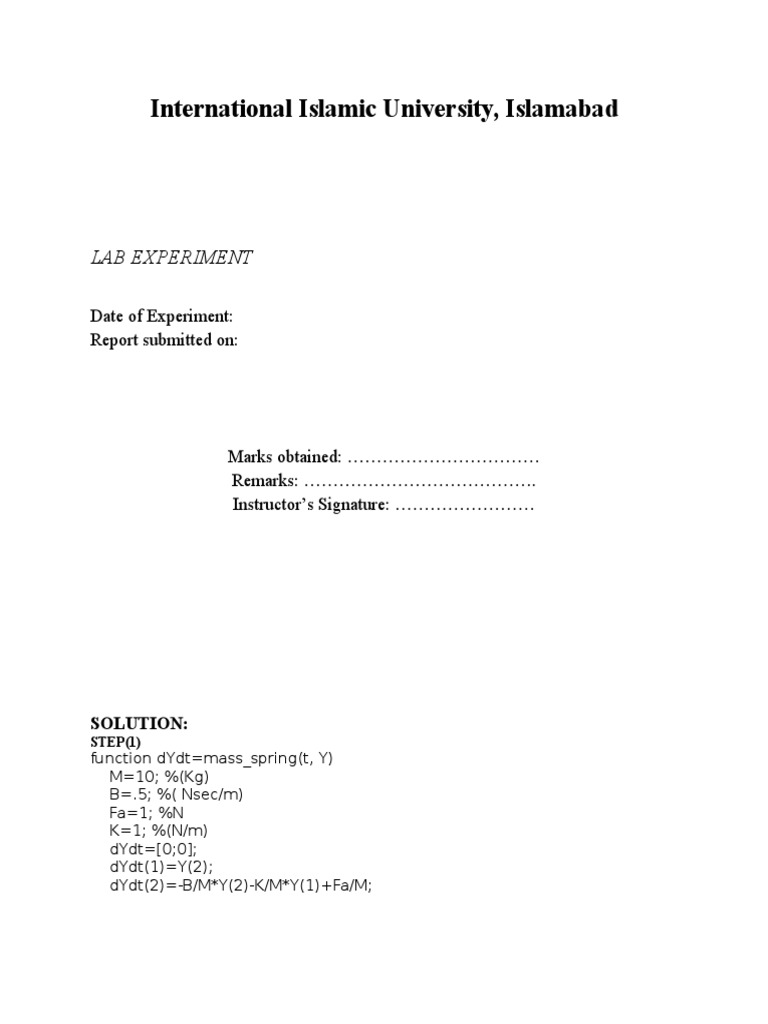

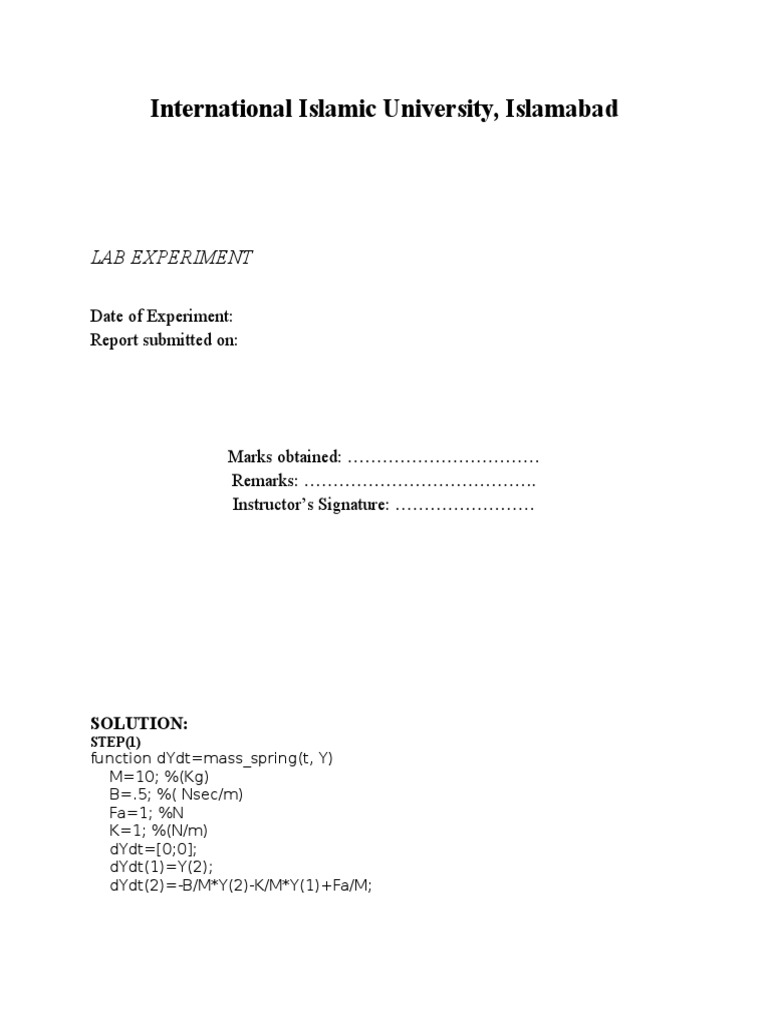

International Islamic University, Islamabad

LAB EXPERIMENT
Date of Experiment:
Report submitted on:

Marks obtained:
Remarks: .
Instructors Signature:

SOLUTION:
STEP(1)

function dYdt=mass_spring(t, Y)
M=10; %(Kg)
B=.5; %( Nsec/m)
Fa=1; %N
K=1; %(N/m)
dYdt=[0;0];
dYdt(1)=Y(2);
dYdt(2)=-B/M*Y(2)-K/M*Y(1)+Fa/M;

STEP(2)

>> Y0=[0; 0]; %(initial speed and position)

>> [t,Y]=ode45('mass_spring', [0 100],Y0);
plot(t,Y)

IN SIMULINK

SOLUTION
STEP(1)

function dqdt=speed(t, q)
R=1000; %(Kohm)
C=2; %( uF)
Vin=5; %V
dqdt=Vin/R-(1/(C*R))*q;
STEP(2)

>> q0= 0; %(initial speed)

>> [t,q]=ode45('speed', [0 20000],q0);
>> >> plot(t,q);

SIMULINK

SOLUTION:
STEP(1)

function dqdt=mass_spring(t, q)
Vin=10; %(v)
R=15; %( Kohm)
L=1100; %nH
C=3.3; %(pF)
dqdt=[0;0];
dqdt(1)=q(2);
dqdt(2)=
(Vin/L)-(R/L)*q(2)-(1/(L*C)*q(1));
STEP(2)

>> q0=[0; 0];

>> [t,q]=ode45('mass_spring', [0 1000],q0);
>> plot(t,q);

SIMULINK
